Flange dimensions: 80 mm
Rated Output Power: 800 – 1068 W
Rated Torque: 2,55 . 3,4 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat
Flange dimensions: 80 mm
Rated Output Power: 800 – 1068 W
Rated Torque: 2,55 . 3,4 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

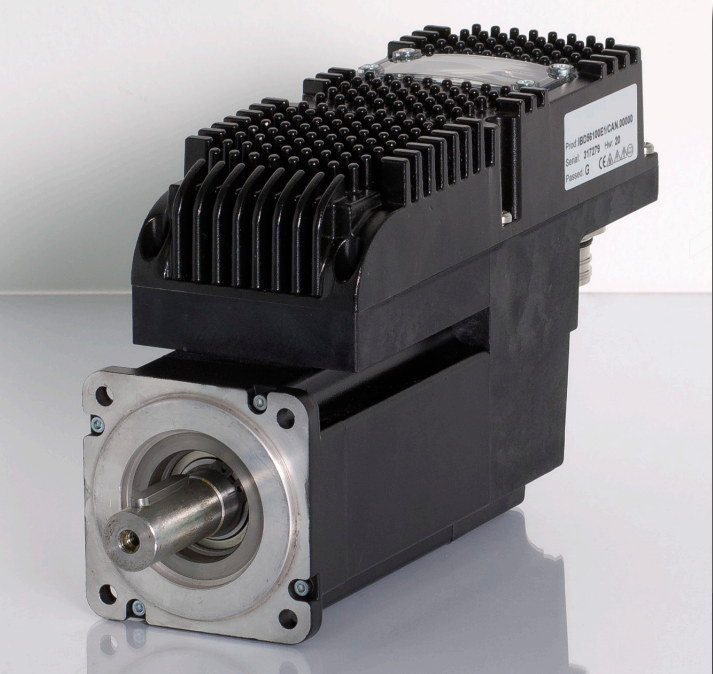

| Specification | DUET HV 80 2,8 17 |
|---|---|
| Rated Voltage | 560 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 275 Vdc |
| Maximum Voltage | 740 Vdc |
| Stall Torque | 2.96 Nm |
| Peak Torque | 8.4 Nm |
| Rated Torque | 2.55 Nm |
| Rated Output Power | 800 W |
| Stall Current | 1.75 Arms |
| Peak Current | 5.8 Arms |
| Rated Current | 1.64 Arms |
| Rated Speed @560Vdc | 3000 rpm |
| Maximum Speed @560Vdc | 4000 rpm |
| Torque Constant (± 5%) | 1.6 Nm/Arms |
| Voltage Constant (± 5%) | 97 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 7.9 Ω |
| Phase/phase inductance (± 10%) | 35.4 mH |
| Electrical time constant | 4.48 ms |
| Thermal Resistance | 1.32 °C/W |
| Mechanical time constant | 0.53 ms |
| Rotor Inertia without brake and without feedback | 1.16 kg·cm² |
| Duet weight | 4.1 Kg |
| Duet weight with brake | 4.8 Kg |
| Axial Load applied on the shaft’s center | 110 N |
| Radial Load applied on the shaft’s center | 350 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
