Description
DS-OLS7-FRS4 Stand Alone Open Loop -RS485
Apply to Size 8, 11, 14, 17 of Step Motors
| Parameter | Unit | DS-OLS7-FRS4 |
|---|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS7-FRS4 Maximum fit 3.2A | |
| Power Supply | V | 24 – 48V DC |
| Output Current | A | 0.1A-3.2A/ phase |
| Drive Method | Full-bridge bipolar PWM driver | |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V, On current 6-15mA | |
| Output Signal Alarm output | Optically isolated output, highest withstand voltage30VD, Maximum saturation current 50mA | |

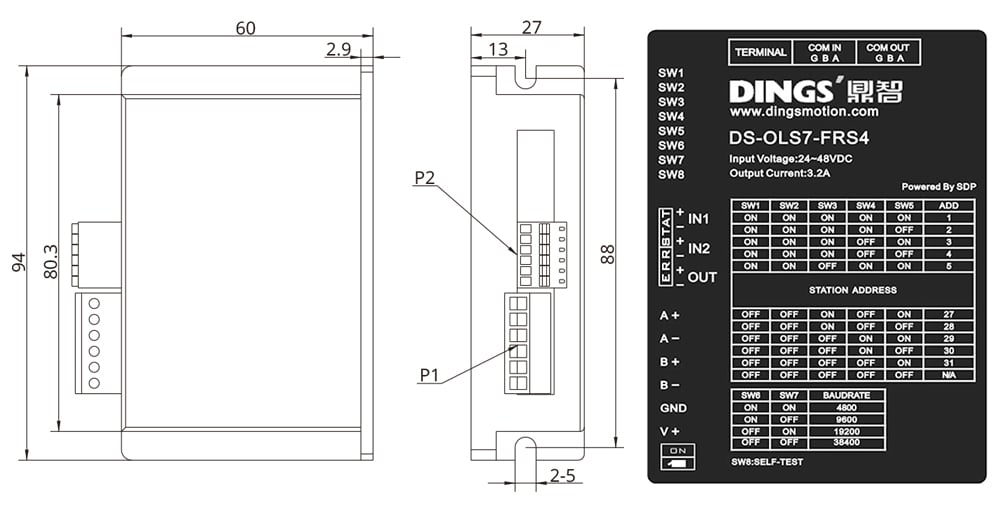

| Size | mm | 94 × 77 × 27mm（Including terminal block） |
| Weight | g | About 175 g |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gases | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0 – +40 |
| Cooling | Installed in a ventilated environment |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
