Description

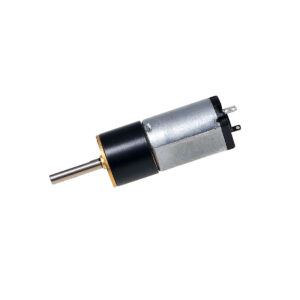

16mm 6V micro DC gearmotor
| Specification | C1630—16MS—C1627F13-0013 |
|---|---|
| Voltage | 12.0 A |
| Terminal resistance | 28.2 Ω |
| No-load speed | 12100 rpm |
| No-load current | 25 mA |
| Stall torque | 3.23 mNm |
| Stall current | 447 mA |
| Nominal torque | 0.88 mNm |
| Nominal speed | 8800 rpm |
| Nominal current | 140 mA |
| Max. output power | 1.02 W |
| Max. efficiency | 49.9 % |
| Back-EMF constant | 0.93 mV/rpm |
| Torque constant | 7.65 mNm/A |
| Speed/torque gradient | 3750 rpm/mNm |
| Rotor inertia | 0.5 g·cm² |
| Weight | 10.7 g |
Applications
medical equipment
scientific instruments
industrial equipment
