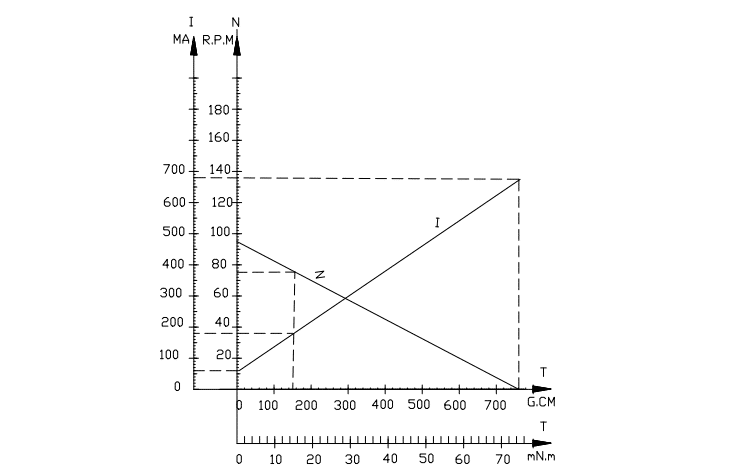

Characteristics
| Parameter | Unit | C1222—12PP—C1222-95-2.5-12PP120-0141 | C1222—12PP—C1222-88-5.0-12PP120-0142 |
|---|---|---|---|
| Voltage | V | 2.5 | 5 |
| Terminal resistance | Ohm | 3.5 | 17.8 |
| No-load speed | rpm | 95 | 88 |
| No-load current | mA | 60 | 35 |
| Max torque | mNm | 68.6 | 62.7 |
| Load torque | mNm | 14.7 | 14.7 |
| Load speed | rpm | 75 | 66 |
| Load current | mA | 180 | 100 |
| Reduction ratio | 1/120 | 1/120 | |
| Weight | g | 6.5 | 6.5 |
| Operating temperature range | °C | -10～+70 | -10～+70 |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
C1222—12PP—
C1222—12PP—
| Parameter | Unit | C1222—12PP—C1222-95-2.5-12PP120-0141 |
|---|---|---|
| Voltage | V | 2.5 |
| Terminal resistance | Ohm | 3.5 |
| No-load speed | rpm | 95 |
| No-load current | mA | 60 |
| Max torque | mNm | 68.6 |
| Load torque | mNm | 14.7 |
| Load speed | rpm | 75 |
| Load current | mA | 180 |
| Reduction ratio | 1/120 | |
| Weight | g | 6.5 |
| Operating temperature range | °C | -10～+70 |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
C1222—12PP—
| Parameter | Unit | C1222—12PP—C1222-88-5.0-12PP120-0142 |
|---|---|---|
| Voltage | V | 5 |
| Terminal resistance | Ohm | 17.8 |
| No-load speed | rpm | 88 |
| No-load current | mA | 35 |
| Max torque | mNm | 62.7 |
| Load torque | mNm | 14.7 |
| Load speed | rpm | 66 |
| Load current | mA | 100 |
| Reduction ratio | 1/120 | |
| Weight | g | 6.5 |
| Operating temperature range | °C | -10～+70 |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
