| Specification | C1215F13-0086 | C1215F13-0141 | C1215F13-0260 |
|---|---|---|---|
| Voltage | 3.5 V | 1.5 V | 3.0 V |
| Terminal resistance | 1.7 Ω | 1.2 Ω | 10.8 Ω |
| No-load speed | 25000 rpm | 11500 rpm | 9600 rpm |
| No-load current | 100 mA | 110 mA | 40 mA |
| Stall torque | 1.80 mNm | 1.10 mNm | 0.70 mNm |
| Stall current | 1506 mA | 1030 mA | 274 mA |
| Load torque | 0.294 mNm | 0.294 mNm | 0.294 mNm |
| Load speed | 20910 rpm | 8500 rpm | 5500 rpm |
| Load current | 330 mA | 350 mA | 140 mA |
| Max. output power | 1.18 W | 0.33 W | 0.18 W |
| Max. efficiency | 56.5 % | 48.8 % | 44.8 % |
| Back-EMF constant | 0.13 mV/rpm | 0.12 mV/rpm | 0.27 mV/rpm |
| Torque constant | 1.28 mNm/A | 1.20 mNm/A | 2.99 mNm/A |
| Speed/torque gradient | 13912 rpm/mNm | 10455 rpm/mNm | 13714 rpm/mNm |
| Varistor | Yes | Yes | Yes |
| Weight | 5.4 g | 5.4 g | 5.1 g |
| Operating temperature range | -20~+80 | -20~+80 | -20~+80 |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools

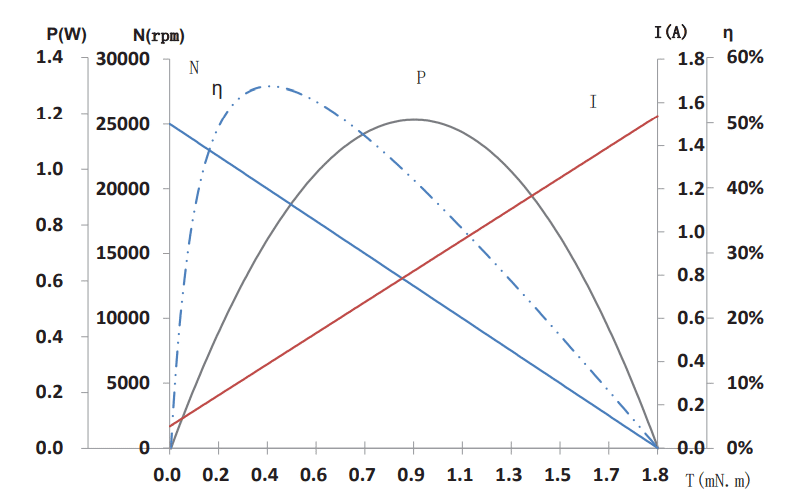

| Specification | C1215F13-0086 |
|---|---|
| Voltage | 3.5 V |
| Terminal resistance | 1.7 Ω |
| No-load speed | 25000 rpm |
| No-load current | 100 mA |
| Stall torque | 1.80 mNm |
| Stall current | 1506 mA |
| Load torque | 0.294 mNm |
| Load speed | 20910 rpm |
| Load current | 330 mA |
| Max. output power | 1.18 W |
| Max. efficiency | 56.5 % |
| Back-EMF constant | 0.13 mV/rpm |
| Torque constant | 1.28 mNm/A |
| Speed/torque gradient | 13912 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 5.4 g |
| Operating temperature range | -20~+80 °C |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
| Specification | C1215F13-0141 |
|---|---|
| Voltage | 1.5 V |
| Terminal resistance | 1.2 Ω |
| No-load speed | 11500 rpm |
| No-load current | 110 mA |
| Stall torque | 1.10 mNm |
| Stall current | 1030 mA |
| Load torque | 0.294 mNm |
| Load speed | 8500 rpm |
| Load current | 350 mA |
| Max. output power | 0.33 W |
| Max. efficiency | 48.8 % |
| Back-EMF constant | 0.12 mV/rpm |
| Torque constant | 1.20 mNm/A |
| Speed/torque gradient | 10455 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 5.4 g |
| Operating temperature range | -20~+80 °C |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
| Specification | C1215F13-0260 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 10.8 Ω |
| No-load speed | 9600 rpm |
| No-load current | 40 mA |
| Stall torque | 0.70 mNm |
| Stall current | 274 mA |
| Load torque | 0.294 mNm |
| Load speed | 5500 rpm |
| Load current | 140 mA |
| Max. output power | 0.18 W |
| Max. efficiency | 44.8 % |
| Back-EMF constant | 0.27 mV/rpm |
| Torque constant | 2.99 mNm/A |
| Speed/torque gradient | 13714 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 5.1 g |
| Operating temperature range | -20~+80 °C |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
