Description

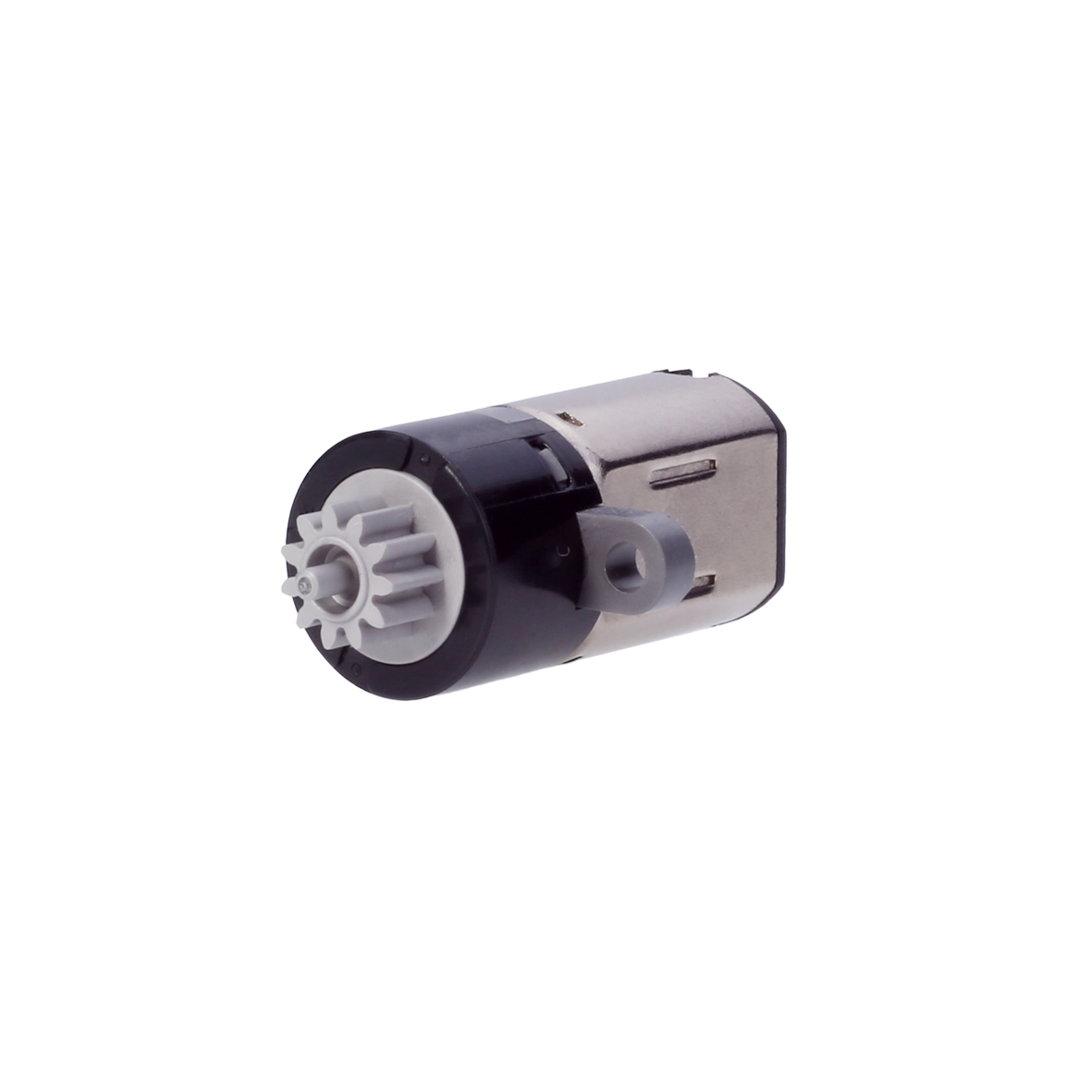

10mm 2.5V micro gearmotor
| Parameter | Unit | C1020—10PP—1C1020-110-2.5-10PP171-0051 |
|---|---|---|
| Voltage | V | 2.5 |
| Terminal resistance | Ohm | 3.7 |
| No-load speed | rpm | 110 |
| No-load current | mA | 100 |
| Max torque | mNm | 37.2 |
| Load torque | mNm | 9.8 |
| Load speed | rpm | 80 |
| Load current | mA | 230 |
| Reduction ratio | 1/171 | |
| Weight | g | 3.8 |
| Operating temperature range | °C | -10～+70 |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
