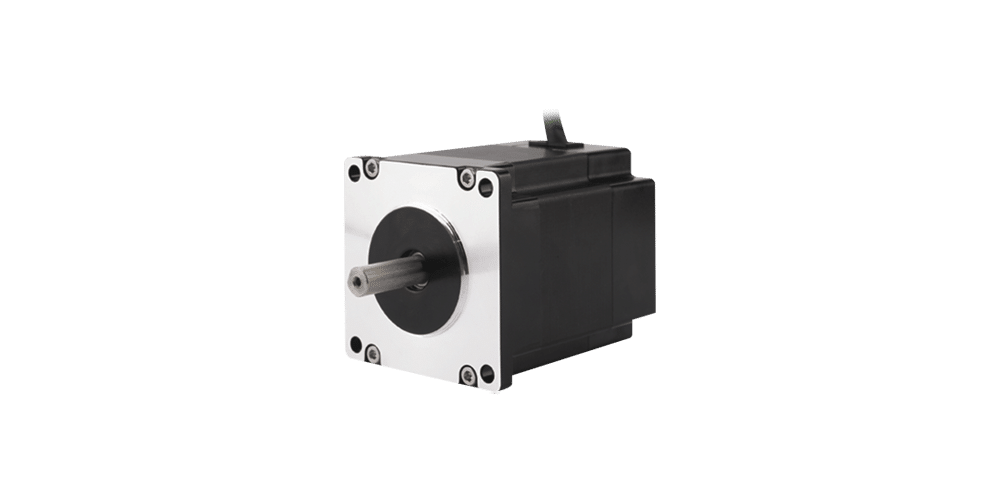

57mm Brushless DC Motor has Max. 0.33N·m rated torque and triple stack 57mm Motor can generate 103.7W capacity of rated power.
57mm motors have Star winding connection.
And 57mm Brushless DC Motors are 5 pole pairs motors Hall sensors feed back method as standard and also additional incremental encoder is available.
57mm Brushless DC Motor has Max. 0.33N·m rated torque and triple stack 57mm Motor can generate 103.7W capacity of rated power.
57mm motors have Star winding connection.
And 57mm Brushless DC Motors are 5 pole pairs motors Hall sensors feed back method as standard and also additional incremental encoder is available.
| Specification | 57ZWS50X-1 |
|---|---|
| Motor Length | 50 mm |
| Mounting Hole | 47.14(±0.2） mm |
| Motor Shaft | 25（±0.5） mm |
| Pole Pairs | 5 |
| Phase Resistance | 0.958 Ω |
| Phase Inductance | 0.742 mH |
| Winding Connection | Star |
| Insulation Class | B |
| Duty Type | S1 |
| Feedback Method | Hall Sensors |
| Commutation Angle | 120° |
| Insulation Strength (Withstand Voltage) | 500VAC/1KHz/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Weight | 0.42 kg |
| Rated Voltage | 24 V |
| Rated Power | 37.4 W |
| Rated Torque | 0.119 Nm |
| Rated Speed | 3000 RPM |
| Rated Current | 2.2 A |
| No Load Speed | 4000 RPM |
| No Load Current | 0.25 A |
| Motor Efficiency | 75 % |
| Noise (Ambient noise 20db, test distance 1M) | ＜50 dB |
| Enclosure – Ambient Thermal Resistance | 0.53 K/W |
| Motor Thermal Time Constant | 4.6 min |
| Ambient Temperature | 29 °C |
| Maximum Winding Temperature | 77.4 °C |
| Torque Constant | 0.054 mN·m/A |
| Back-EMF Constant /Effective Value | 5.66 V/Krpm |
| Peak Torque | 0.357 Nm |
| Peak Current | 6.6 A |
| Inertia Moment | 0.19 kg·cm² |
| End Cover | Aluminium Die Casting |
| Bearing | Deep Groove Ball Bearing |
| Magnet | Sinter NdFedB |
| Shaft | Carbon Steel |
