34-2113

34-2113

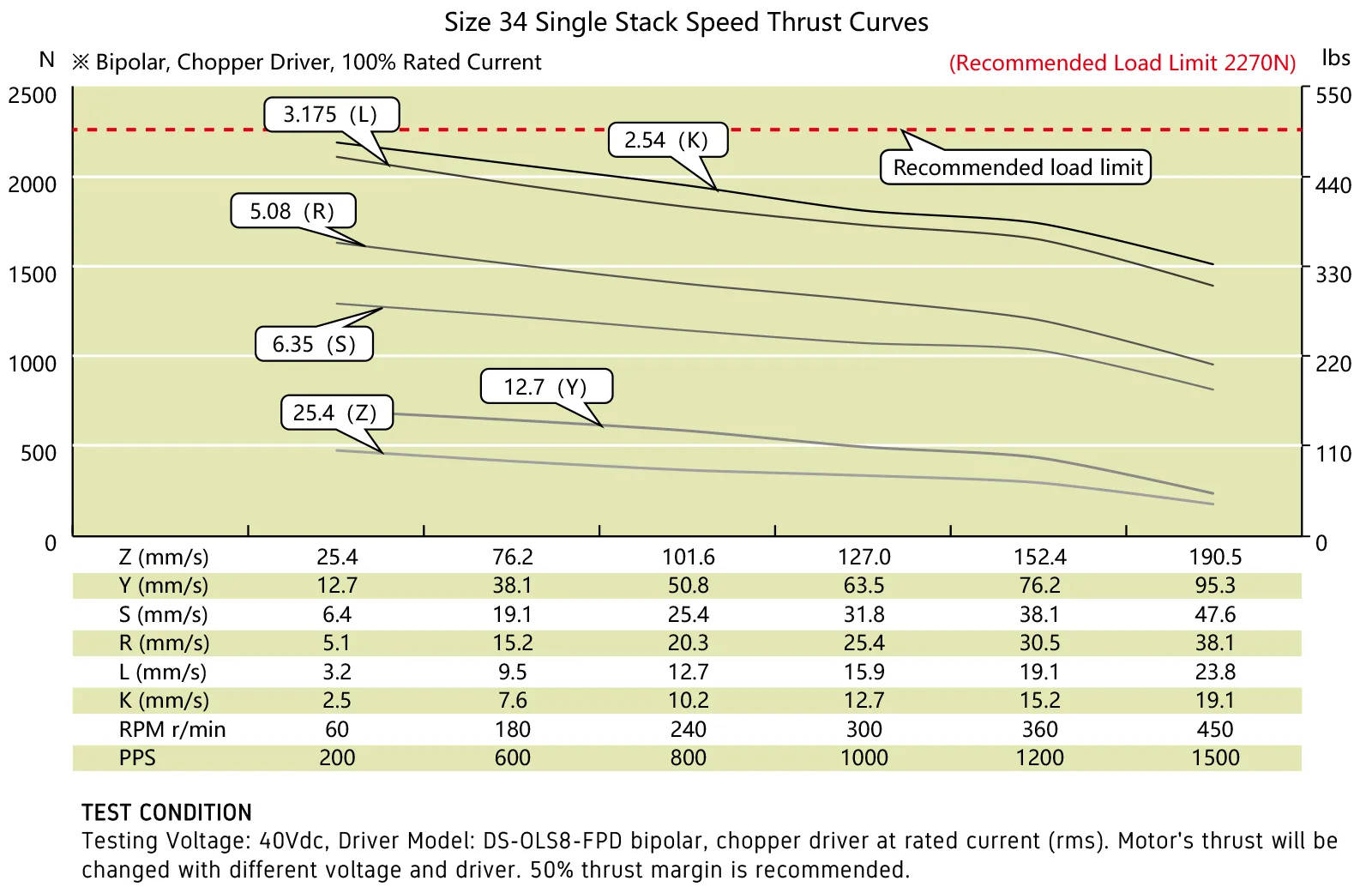

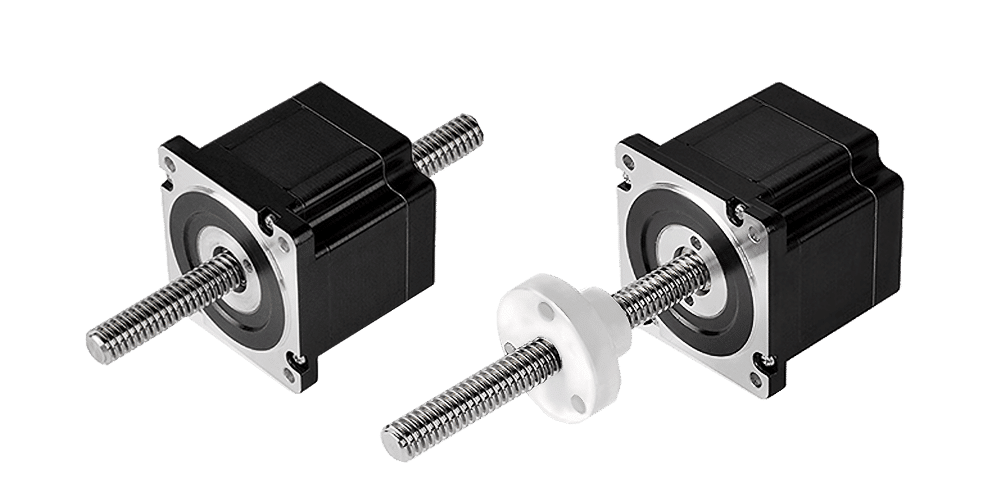

The SLSLA Size 34 [86mm] Stepper Lead Screw Linear Actuator delivers up to 2270N of continuous thrust, making it ideal for demanding automation tasks. Available in External and Non-Captive layouts, this largest-format actuator series features 15.875mm screw diameter, multiple lead pitches, encoder options, Teflon coating, and custom screw end machining. Engineered for reliability in industrial, packaging, and material handling applications.

SKU: 34-2113 Category:

Description

SLSLA – Size 34 [86mm] Stepper Lead Screw Linear Actuators provide robust linear motion solutions for high-load industrial applications. As the largest offering in the SLSLA family, these actuators supply up to 2270N of continuous thrust, addressing the needs of heavy-duty automation systems.

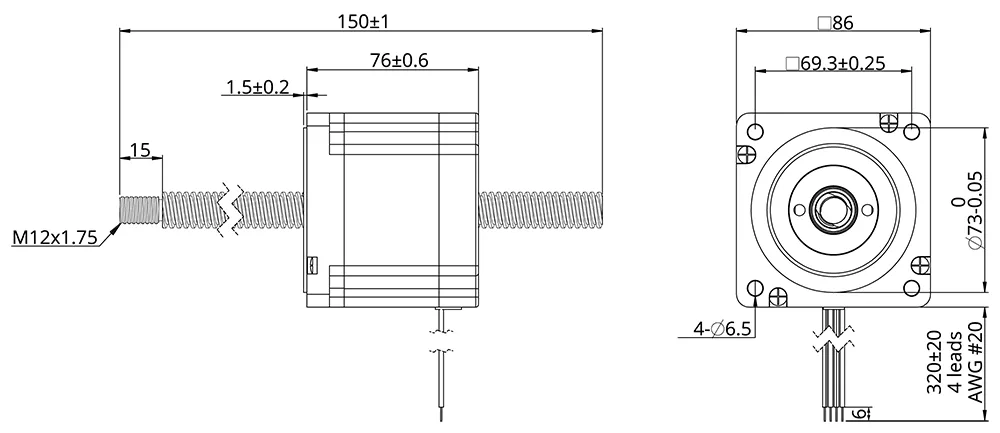

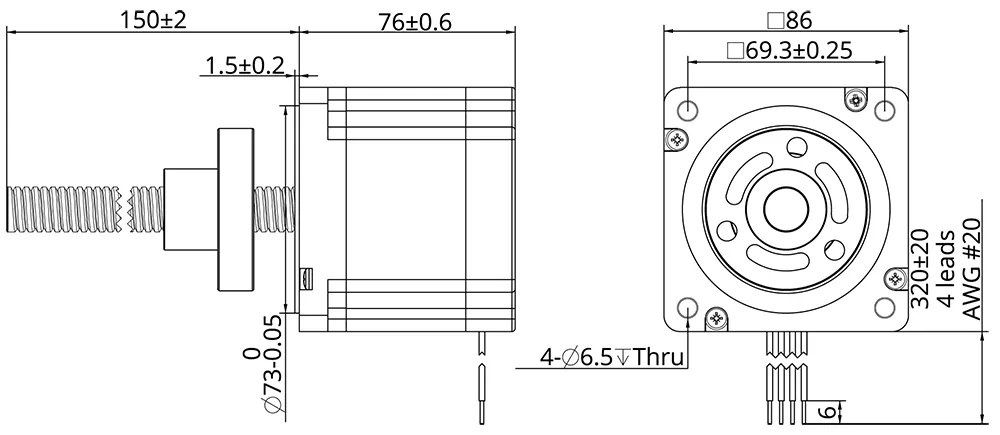

  • Form Factors: External and Non-Captive (with electrical cylinder variants)
  • Screw Specifications:
    • Diameter: 15.875mm
    • Lead Pitches: 2.54mm to 25.4mm
    • Travel per step (1.8°): 12.7µm up to 127µm
    • Multiple lead code options (K, L, R, S, Y, Z)
    • Left-hand thread availability
  • Customization & Options:

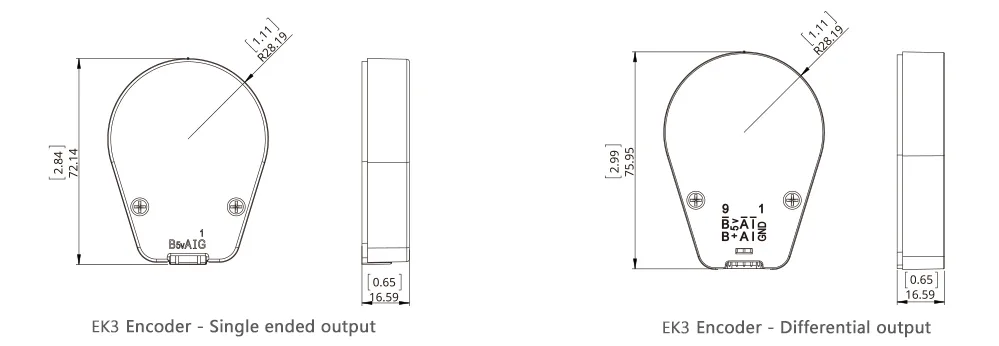

    • EK3 encoder integration for position feedback
    • Single stack motor construction
    • Teflon screw coating for enhanced durability
    • Power-off brake (optional safety feature)
    • Screw end machining: Threaded end, smooth end, or custom

Applications: SLSLA Size 34 actuators excel in industrial automation, packaging lines, process equipment, and heavy material handling systems that demand high thrust and precision. Their modular options support advanced motion control requirements in custom machine building and engineered solutions.

  • Advantages: Rugged high-thrust performance, versatile customization, extensive screw options, and easy integration into existing or bespoke automation systems.
