Description

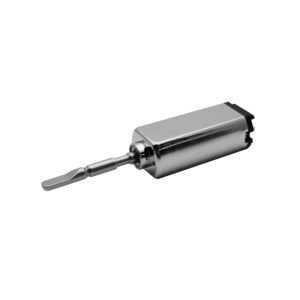

3.7V brushless sonic vibration motor
| Specification | 2734ZDR-2-L13-30-3.7 |
|---|---|
| Voltage | 3.7 V |
| Resistance | 2.5 Ω |
| Operating frequency range | 100~240 Hz |
| No-load vibration frequency | 30000 Times / minute |
| No-load current | 220 mA |
| Starting torque | 56 mNm |
| Starting current | 1.48 A |
| Rated load (Brush head) | 13.8 I 41 g I mm |
| Load vibration frequency | 20400 Times / minute |
| Load current | 630 mA |
| Rotor inertia | 2.4 g·cm² |
| Weight | 76 g |
| Operating temperature range | -10～+60 °C |
Applications
facial brushes
facial massagers
health care products
cleaning equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
