23HS2065

23HS2065

The HSSM Size 23 [57mm] Hollow Shaft Stepper Motor family offers up to 1.6 N·m holding torque, ideal for demanding automation projects. Featuring a compact 57mm frame and customizable options—including hollow shaft encoders—it delivers excellent performance and integration flexibility for motion control systems.

SKU: 23HS2065 Category:

Description

HSSM Size 23 [57mm] Hollow Shaft Stepper Motors deliver reliable motion control for automation and precision positioning applications.

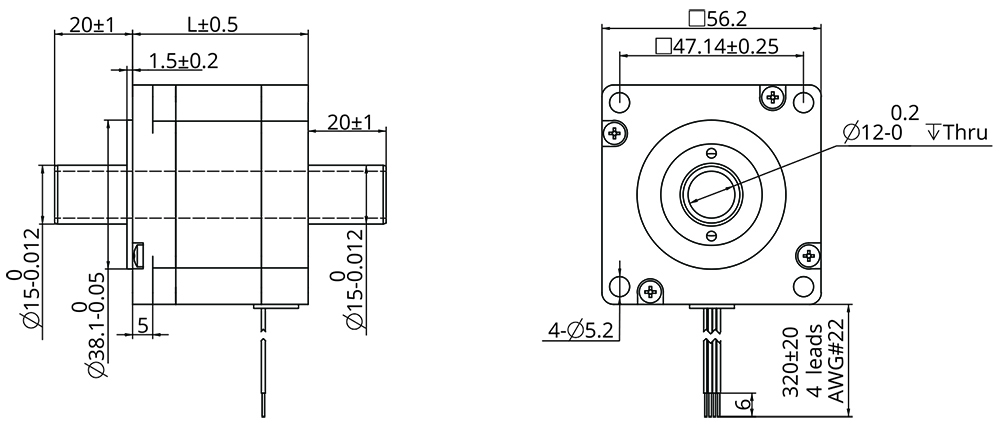

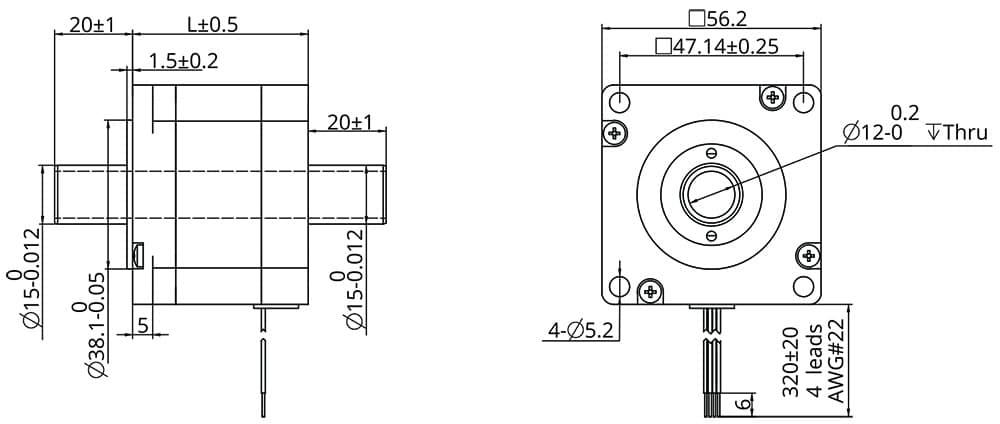

  • Frame Size: 57mm (NEMA 23) compact design

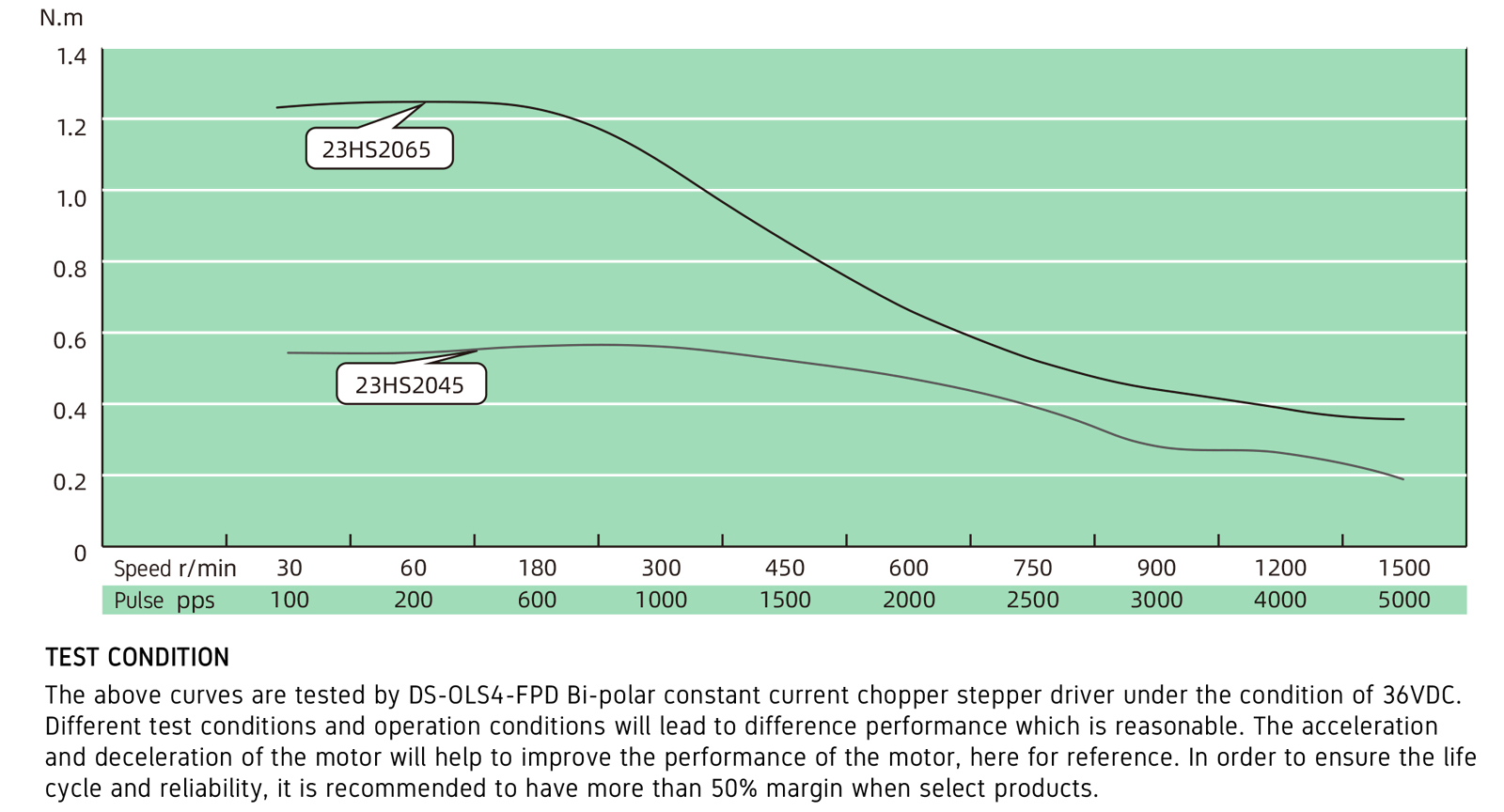

  • Holding Torque: Up to 1.6 N·m, supporting demanding load requirements
  • Hollow Shaft Design: Enables direct cable, pneumatic, or optical feedthrough and facilitates easier integration with external feedback devices

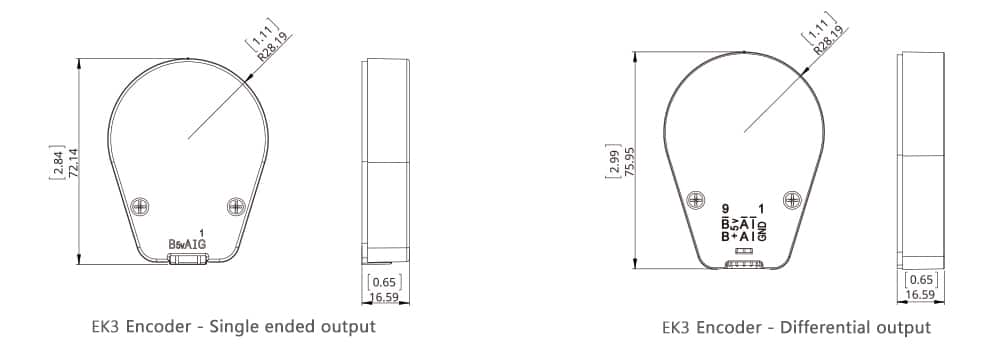

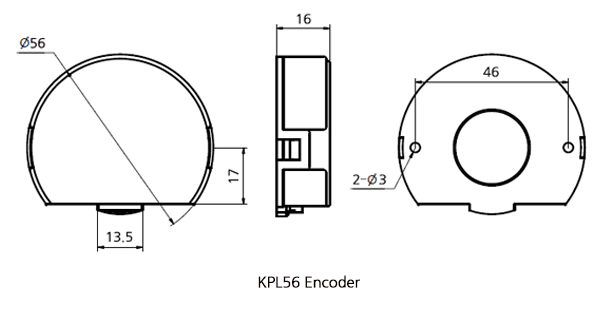

  • Encoder Options: Range of encoder assemblies (EK2, EK3, EK4, KPL56) for enhanced position feedback and system control
  • Customization: Dedicated support for special windings, custom shaft geometries, and integration of hollow type encoders upon request

This family is engineered for OEMs and system integrators needing both high torque output and flexible mechanical interfacing in compact spaces. Typical use cases include robotics, medical equipment, semiconductor handling, automated inspection systems, and precision assembly lines. The hollow shaft design makes these motors especially suited for applications requiring direct signal or air passage through the motor axis. For projects requiring tailored solutions, KOCO offers consultation and customized adaptations.
