Beschreibung

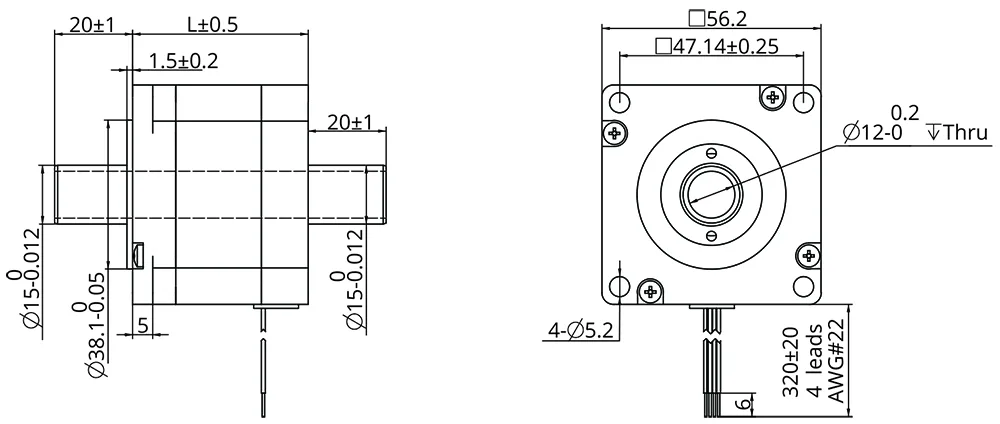

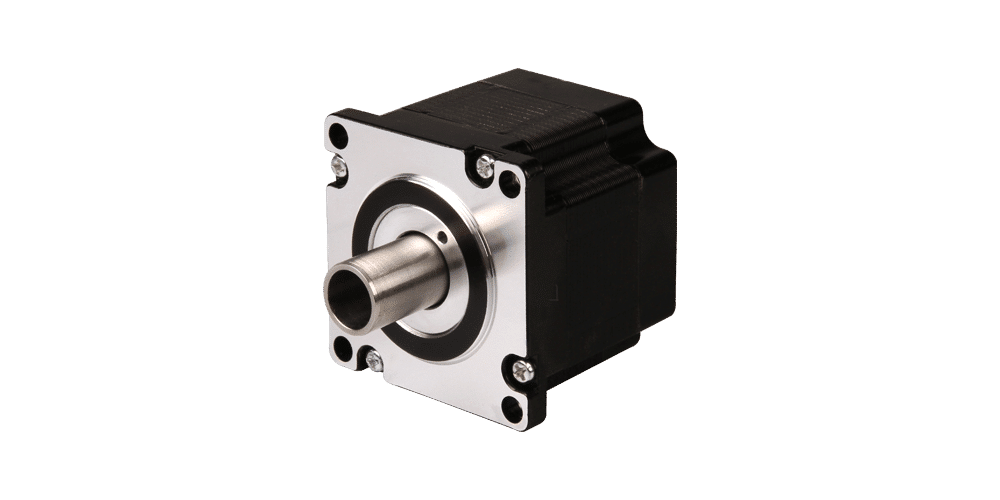

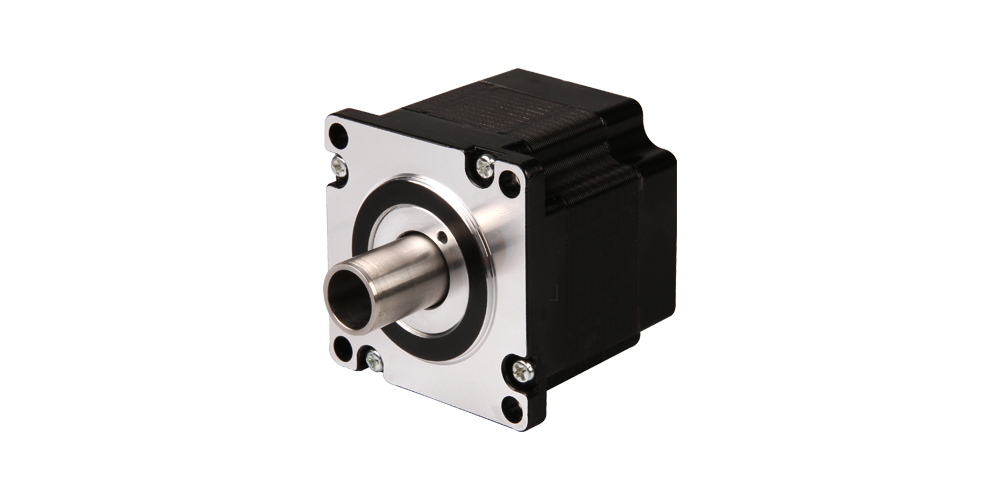

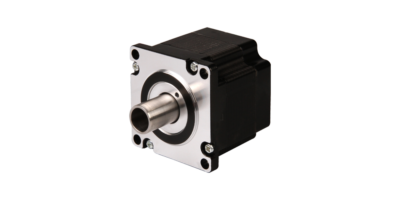

The size 23 [57mm] Hollow Shaft Stepper Motor has Max. 1.6N·m of holding torque.

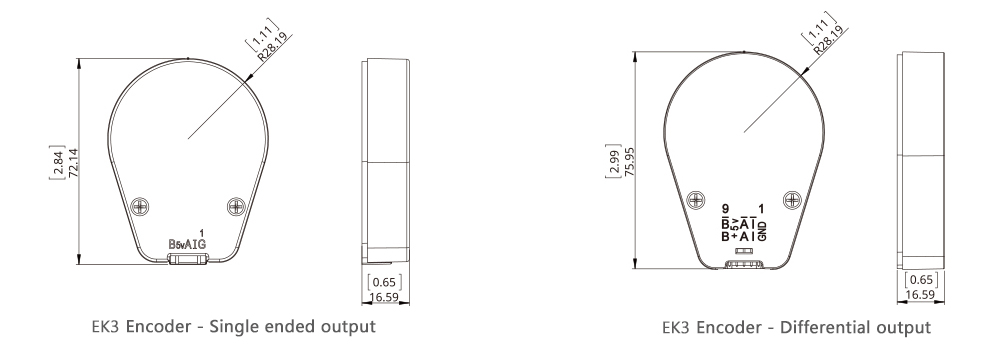

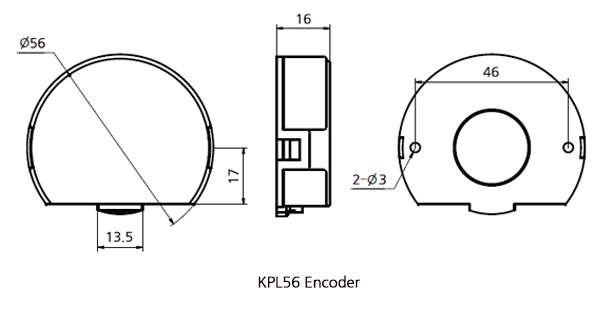

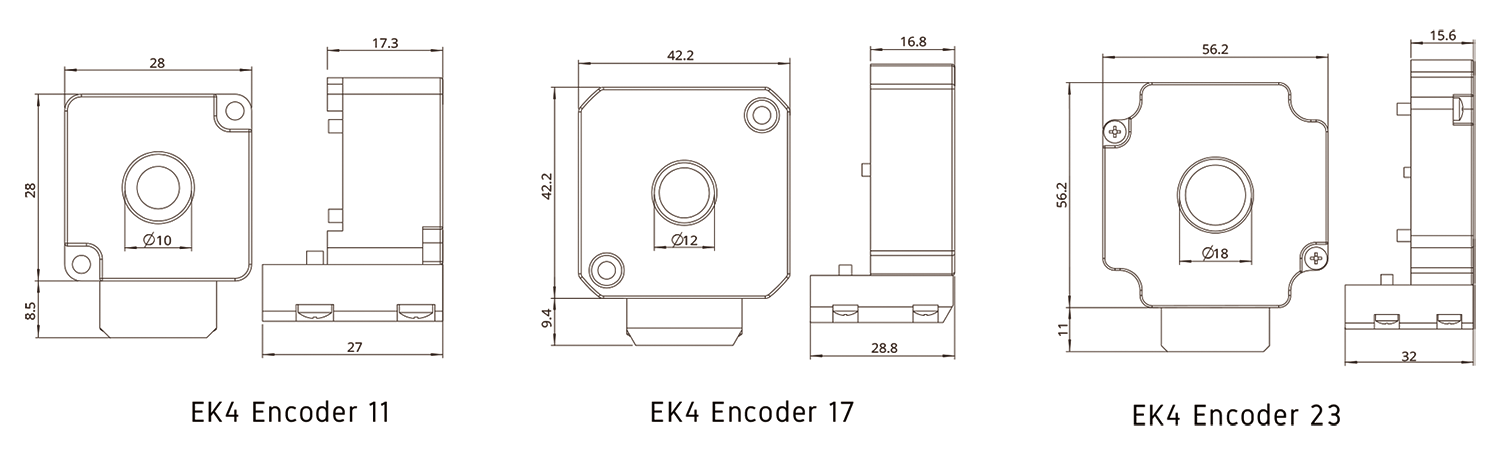

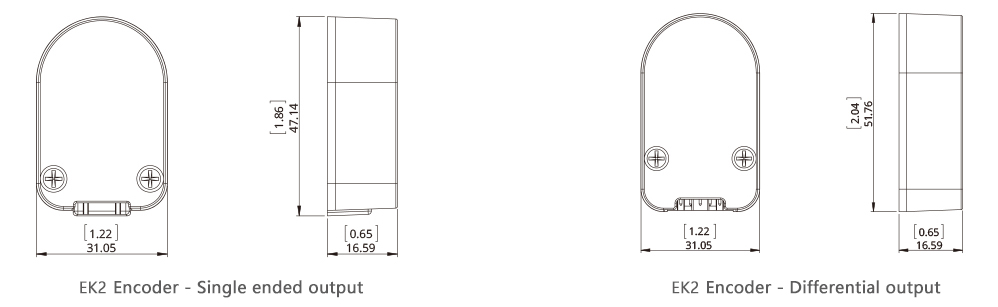

For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO for further information.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
The size 23 [57mm] Hollow Shaft Stepper Motor has Max. 1.6N·m of holding torque.
For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO for further information.
The size 23 [57mm] Hollow Shaft Stepper Motor has Max. 1.6N·m of holding torque.
For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO for further information.
Specification | 23HS2065 |
---|---|
Rated Voltage | 5.0 A |
Current | 2.5 V |
Resistance | 2.0 Ω |
Inductance | 5.2 mH |
Holding Torque | 1.6 Nm |
Detent Torque | 0.040 Nm |
Motor length | 65 mm |
