| Parameter | Unit | 17N2225 |
|---|---|---|
| Rated voltage | V | 2.5 |
| Current | A | 2.5 |
| Winding resistance | Ω | 1.0 |
| Inductance | mH | 1.8 |
| Weight | g | 386 |
| Lead wire No. | 4 | |

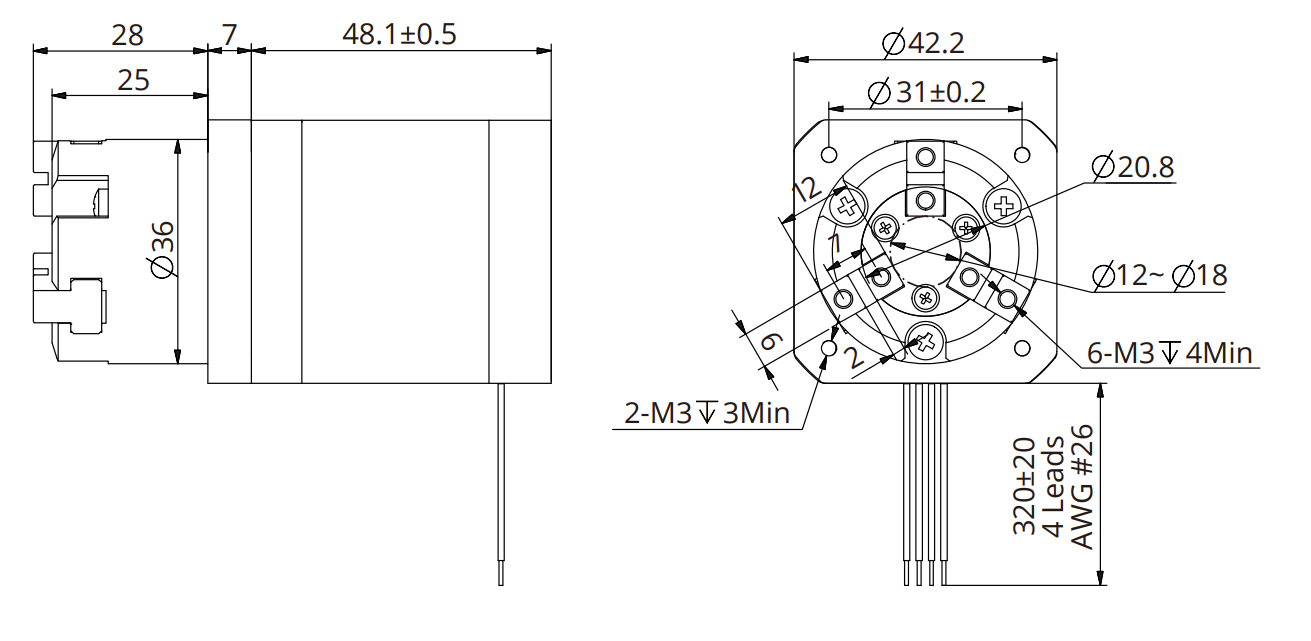

| Motor length | mm | 48.1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
