| Specification | 1511P0209-013-5.0-002 | 1511P0209-013-5.0-0019 |
|---|---|---|
| No. of phase | 2 | 2 |

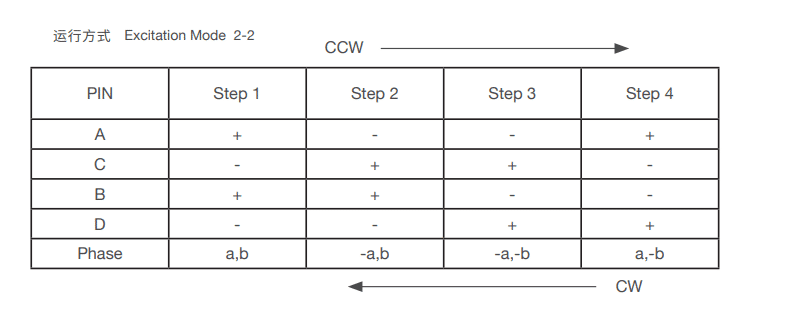

| Excitation Mode | 2-2 | 2-2 |
| Voltage | 5.0 V | 6.5 V |
| Resistance | 12.6 Ω | 12.6 Ω |
| Step Angle | 18° | 18° |
| Current | 0.4 A | 0.5 A |
| No-load Pull-in Frequency | ≥1200 | ≥1200 |
| No-load Pull-out Frequency | ≥1300 | ≥1300 |
| Detent Torque | 0.40 mNm | 0.40 mNm |
| Pull-in Torque | 1 mNm | 1 mNm |
| Load pull-in Frequency | ≥800 | ≥500 |
| Weight | 9.0 g | 8.8 g |
| Operating temperature range | -20~+80 | -20~+80 |
Applications
office automation systems
medical equipment
mini household appliances
toys

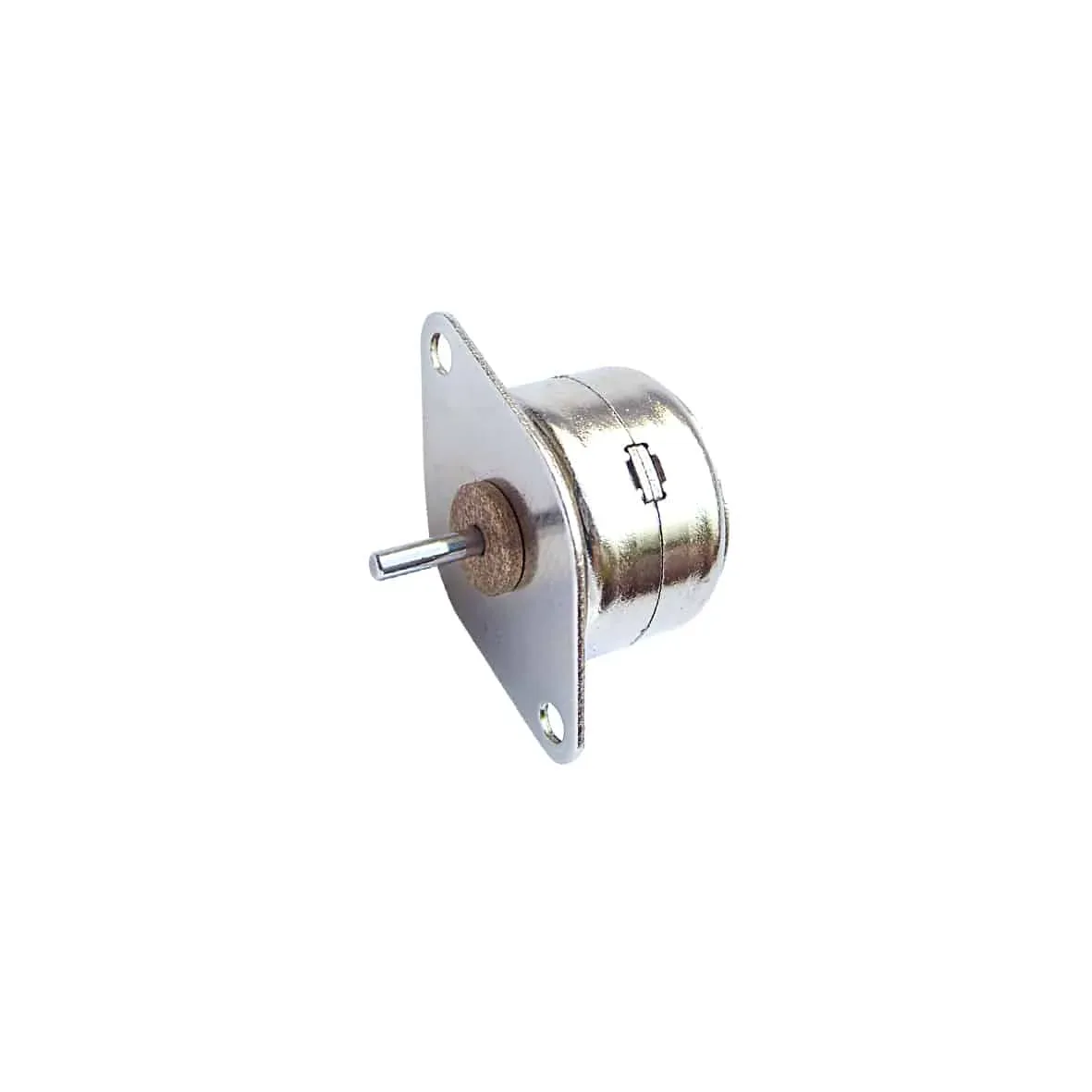

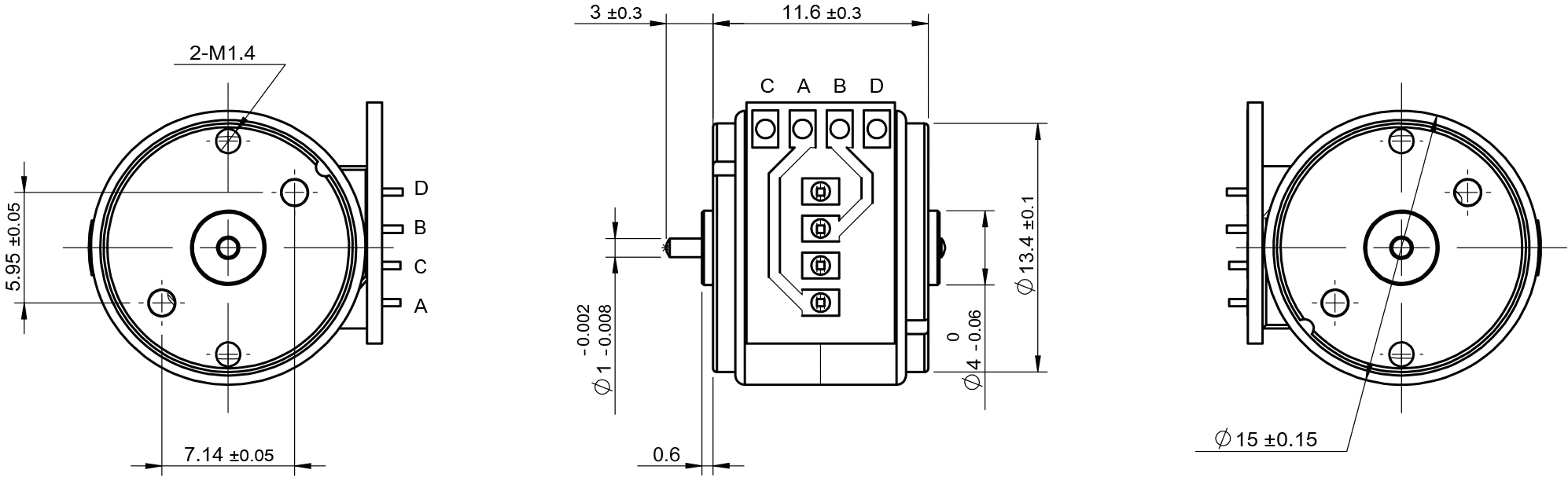

1511P0209
| Specification | 1511P0209-013-5.0-002 |
|---|---|
| No. of phase | 2 |
| Excitation Mode | 2-2 |
| Voltage | 5.0 V |
| Resistance | 12.6 Ω |
| Step Angle | 18° Deg |
| Current | 0.4 A |
| No-load Pull-in Frequency | ≥1200 pps |
| No-load Pull-out Frequency | ≥1300 pps |
| Detent Torque | 0.40 mNm |
| Pull-in Torque | 1 mNm |
| Load pull-in Frequency | ≥800 pps |
| Weight | 9.0 g |
| Operating temperature range | -20~+80 °C |
Applications
office automation systems
medical equipment
mini household appliances
toys
1511P0209
| Specification | 1511P0209-013-5.0-0019 |
|---|---|
| No. of phase | 2 |
| Excitation Mode | 2-2 |
| Voltage | 6.5 V |
| Resistance | 12.6 Ω |
| Step Angle | 18° Deg |
| Current | 0.5 A |
| No-load Pull-in Frequency | ≥1200 pps |
| No-load Pull-out Frequency | ≥1300 pps |
| Detent Torque | 0.40 mNm |
| Pull-in Torque | 1 mNm |
| Load pull-in Frequency | ≥500 pps |
| Weight | 8.8 g |
| Operating temperature range | -20~+80 °C |
Applications
office automation systems
medical equipment
mini household appliances
toys
