Description

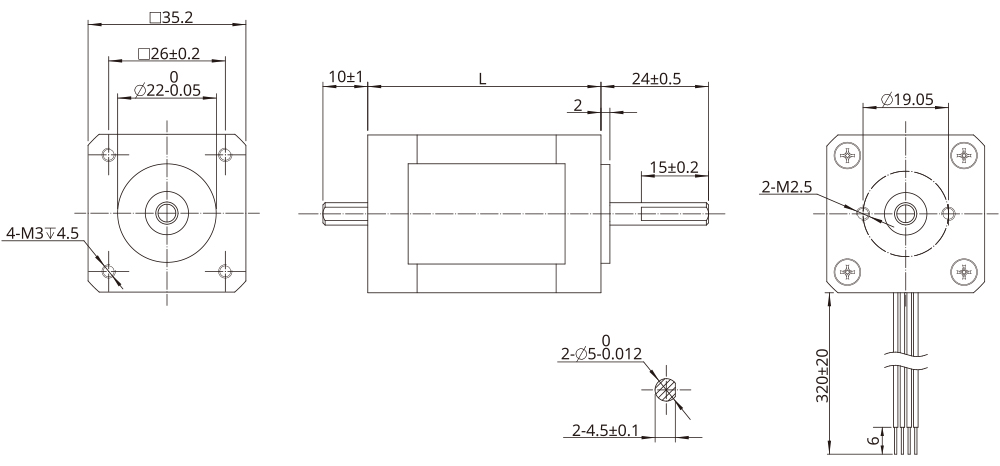

The size 14 [35mm] Hybrid Rotary Stepper Motor has Max. 0.2N·m of holding torque.

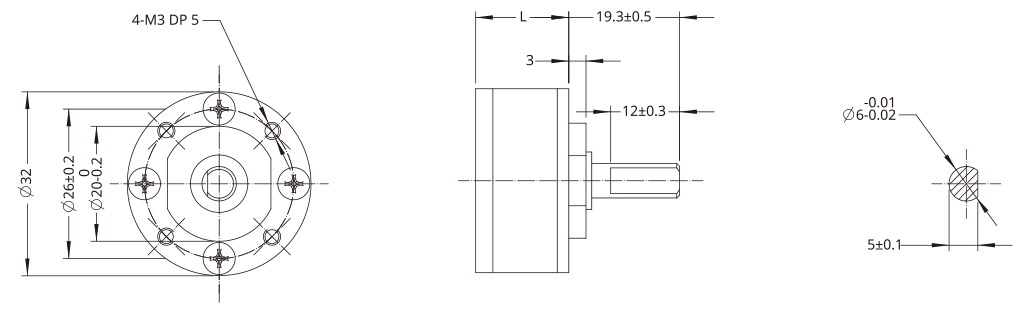

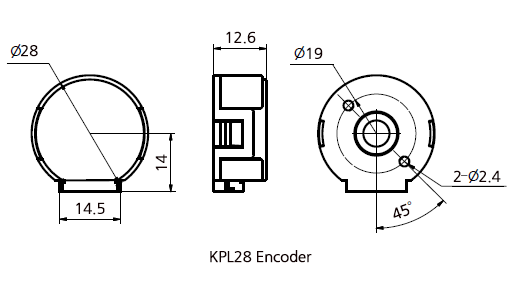

Encoders and 32mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.

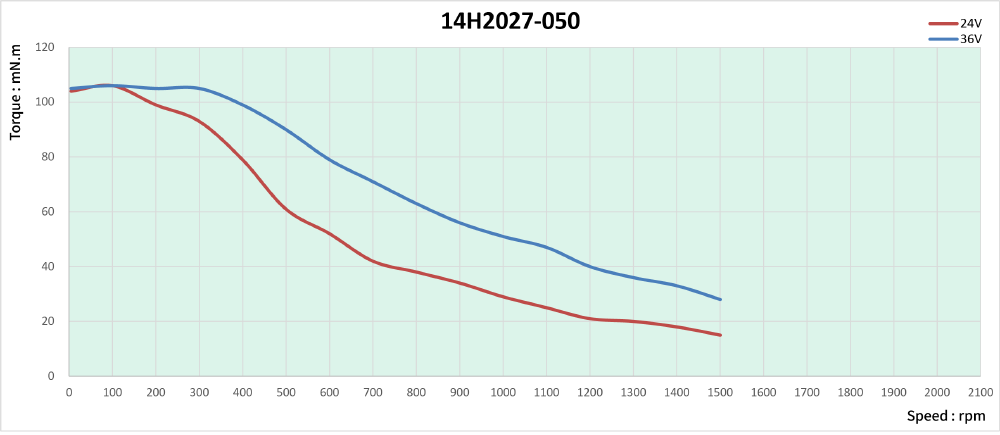

| Parameter | Unit | 14H2027 |
|---|---|---|
| Current | A | 0.5 |
| Resistance | Ω | 20 |
| Inductance | mH | 23 |
| Holding Torque | N.m | 0.15 |
| Rotor Inertia | g·cm² | 10 |
| Length | mm | 27 |
| Mass | g | 140 |
| Size | Nema | 14 |
| Flange size | mm | 35 |
Family Specification
| Family Specification | Unit | 14H2027 |
|---|---|---|
| Accuracy step angle | 1.8°±5% | |
| Accuracy Resistance | ±10% / 20 C | |
| Accuracy Inductance | ±20% / 1KHz | |
| Insulation class | B | |
| Duty type | S1 | |
| Dielectrical strength | 500 VAC / 1 KHz / 1 mA / 1 s | |
| Insulation resistance | 100 MΩ / 500 VDC | |
| Permissible radial load(5MM distance from mounting surface) | 50N | |
| Permissible radial load(10MM distance from mounting surface) | 40N | |
| Permissible radial load(15MM distance from mounting surface) | 25N | |
| Permissible radial load(20MM distance from mounting surface) | 20N | |
| End bell | Aluminum alloy | |
| Bearing | Deep groove ball bearing | |
| Magnet | Sintered NdFeB | |
| Shaft | Stainless steel | |
| Wiring | UL 3265, 26 AWG |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
