Based on KOCO’s platform products, high precision of lead screw linear actuator and self-developed simple linear module, DSM 28mm series is compact and reliable structure of linear solution.

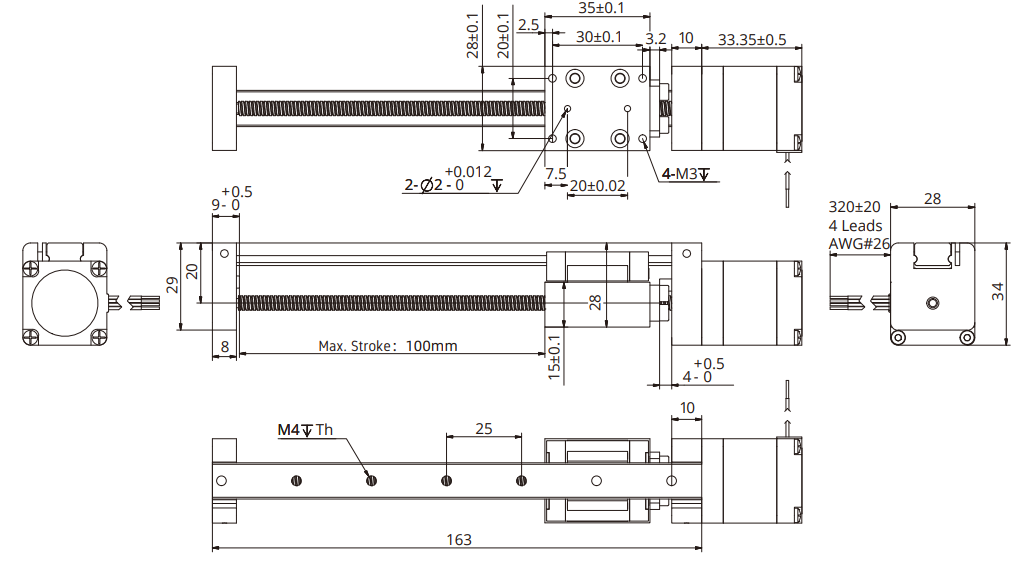

DSM 28mm Series is good precision, high diversity of optional stroke and lead based customization linear module which can provide customers with integrated customization solutions.
| Parameter | Unit | 11E2209 |
|---|---|---|
| Voltage | V | 3.9 |
| Current | A | 0.95 |
| Resistance | Ohm | 4.1 |
| Inductance | mH | 4.0 |
| Lead wire No. | 4 | |
| Motor length | mm | 45 |
| Lead Screw Code | Unit | 11E2209 |
|---|---|---|
| AL, Screw Lead | mm | 4.77 |
| A, Screw Lead | mm | 4.77 |
| D, Screw Lead | mm | 4.77 |
| K, Screw Lead | mm | 4.77 |
| R, Screw Lead | mm | 4.77 |
| X, Screw Lead | mm | 4.77 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
