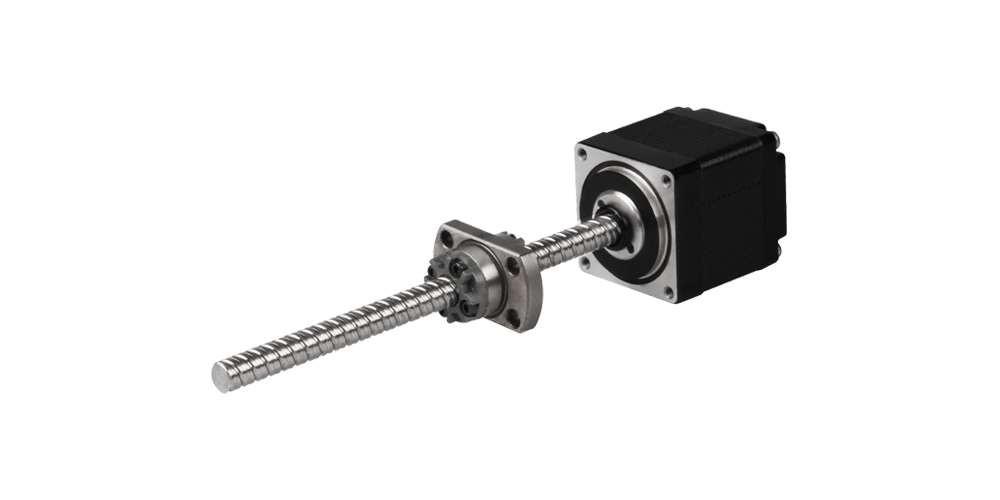

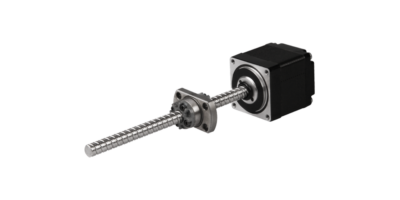

The SBSLA Size 11 (28mm) External Stepper Ball Screw Linear Actuator combines compact form with high-precision motion. Featuring C7-grade ball screws (0601/0602/0606/0610/0504), robust SCM415H construction, and options for encoder feedback, power-off brake, and various screw end machinations, this actuator is ideal for demanding positioning applications in automation, lab equipment, and miniature machinery.

SKU: 11E2209 Category:

Description

The SBSLA Size 11 [28mm] External Stepper Ball Screw Linear Actuator delivers precise, compact linear motion for industrial and laboratory applications demanding accuracy and miniaturization.

  • Ball Screw Options: Available with 0601, 0602, 0606, 0610, and 0504 ball screw types, each providing right-hand thread direction and ball sizes of Ø0.8 or Ø1.2 for tailored motion profiles.
  • Precision & Reliability: Utilizes C7-grade ball screws, anti-rust oil treatment, surface hardness of HRC58~62, and robust SCM415H nut material, ensuring durability and consistent performance.

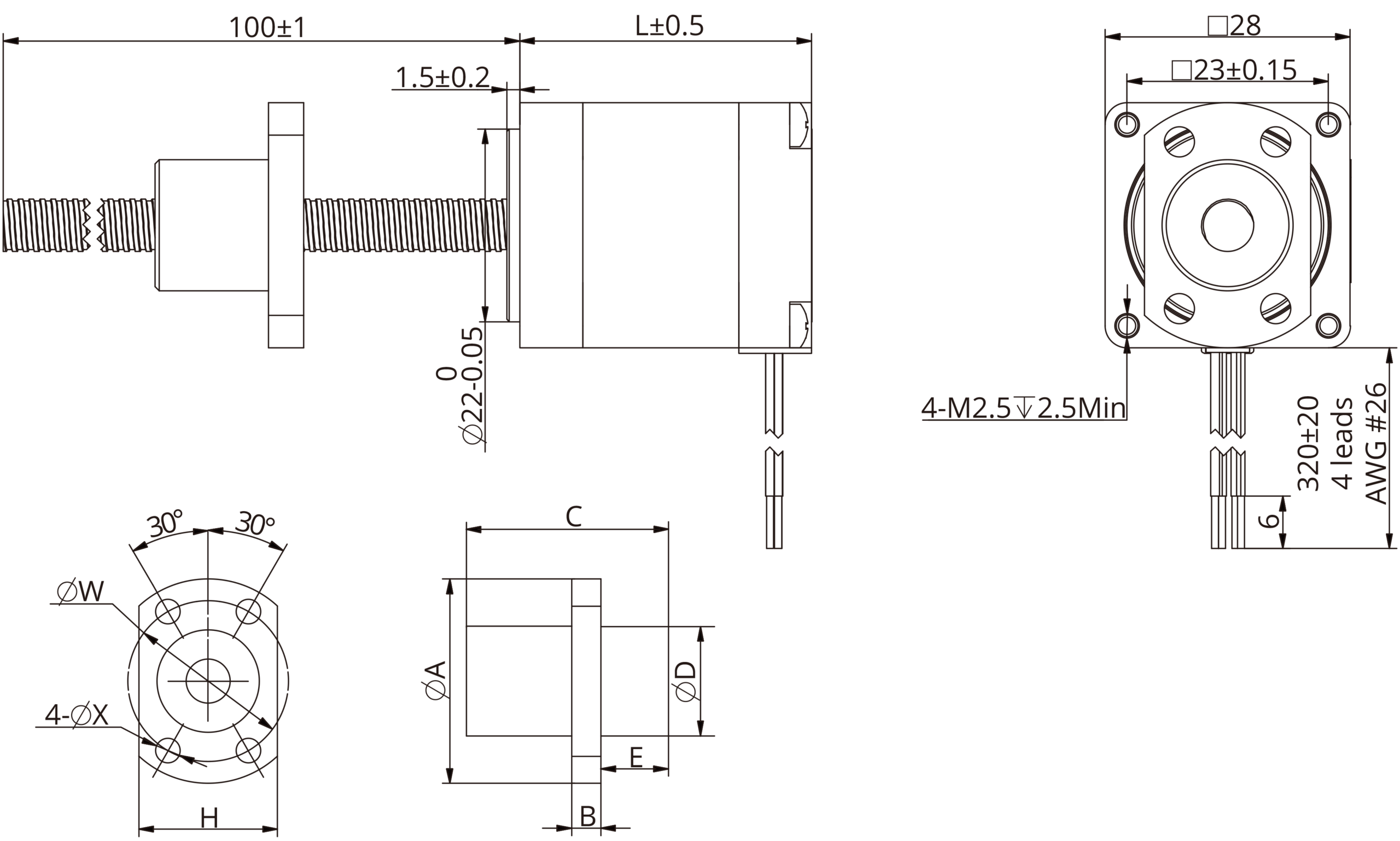

  • Compact Design: 28mm (NEMA 11) actuator with a choice of nut sizes (A, B, C, D, H, W, X, E) supports wide integration possibilities in space-constrained environments.
  • High-Load Capability: Supports dynamic loads up to 950N and static loads up to 1650N, enabling use in precision machinery and mini-actuator platforms.

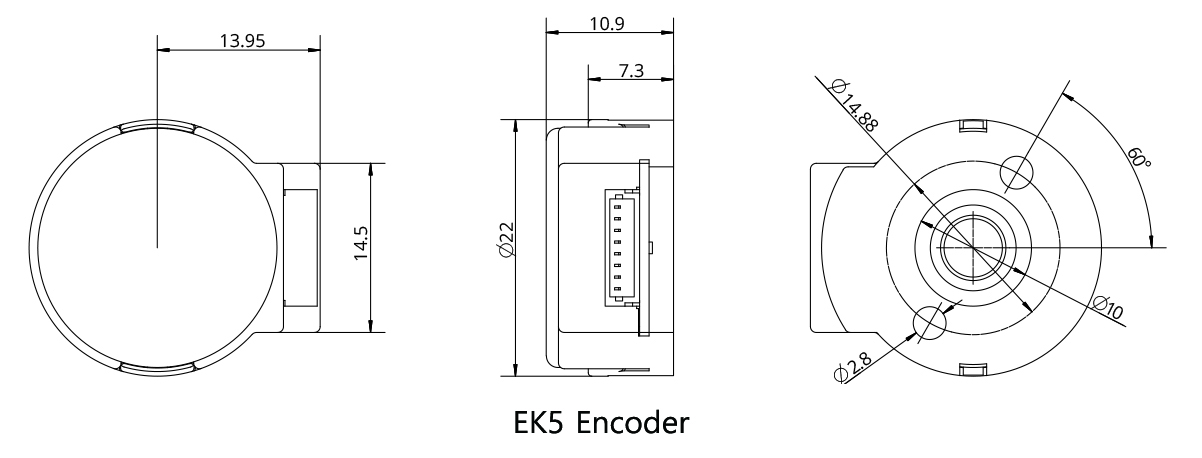

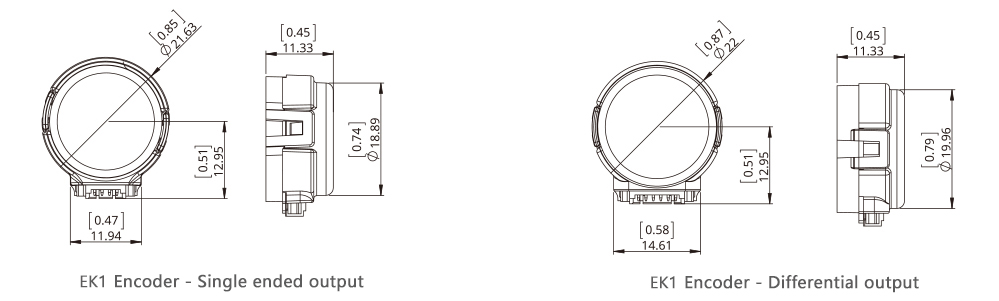

  • Flexible Integration: Offers customizable screw end machining (Threaded, Smooth, None, or Custom options), encoder feedback (EK1, EK5), and power-off brake options to fit varied application requirements.

Ideal for pick-and-place automation, medical devices, micro-positioning tables, and electronic assembly systems, the SBSLA Size 11 actuator ensures repeatable linear movement, precision control, and scalable integration for advanced OEM solutions.
