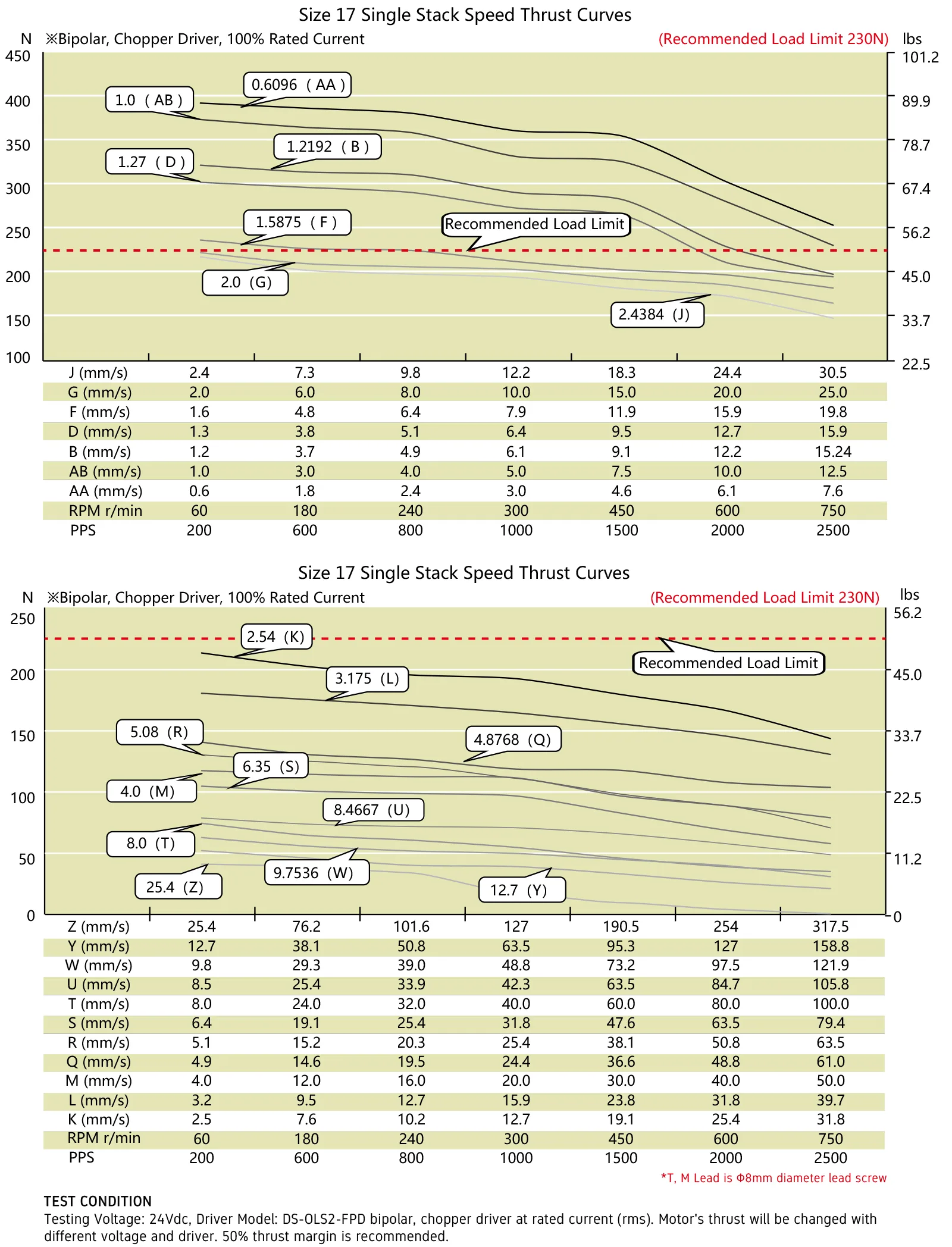

Size 17 [42mm] Stepper Lead Screw Linear Actuator is widely used for linear movement applications, providing up to 330N of continuous thrust.

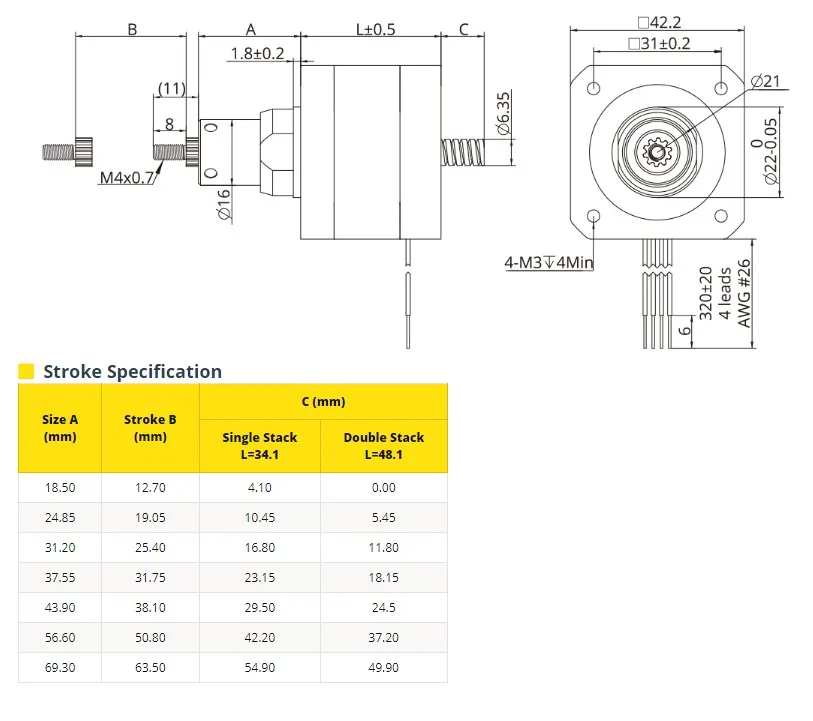

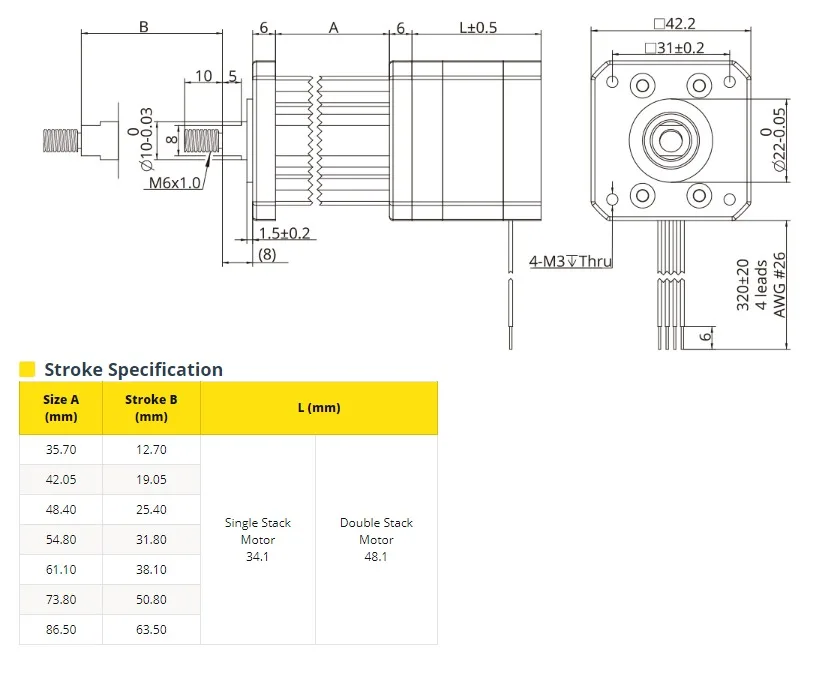

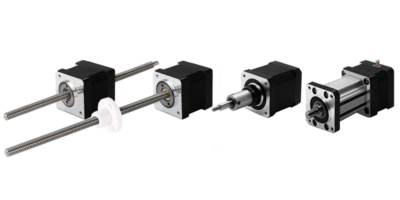

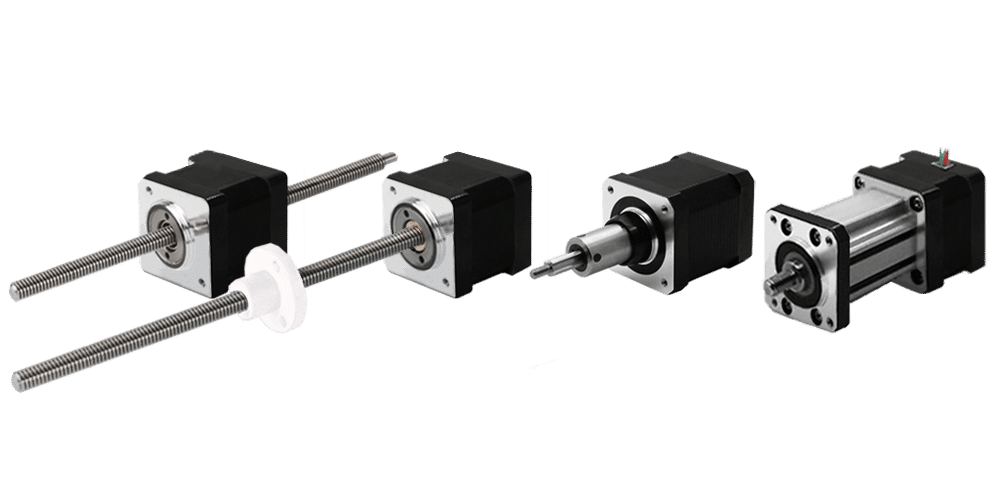

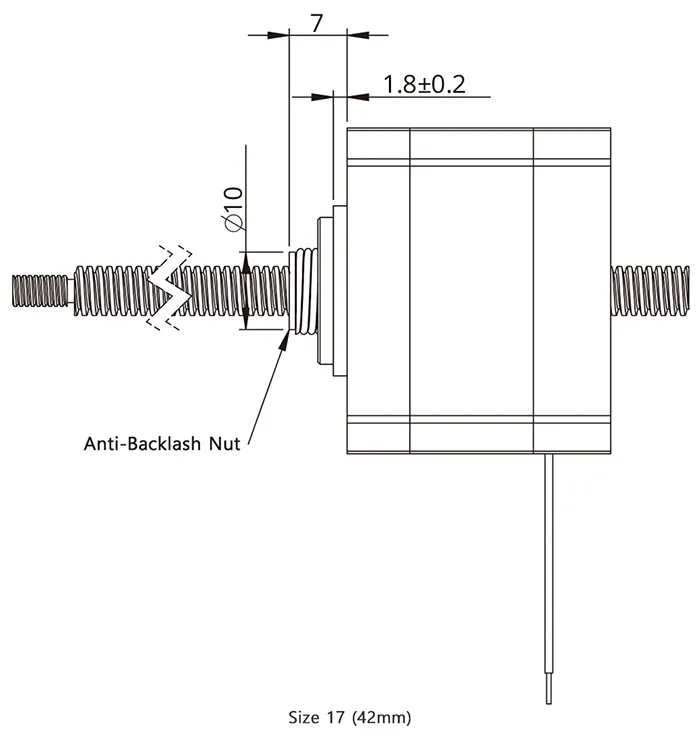

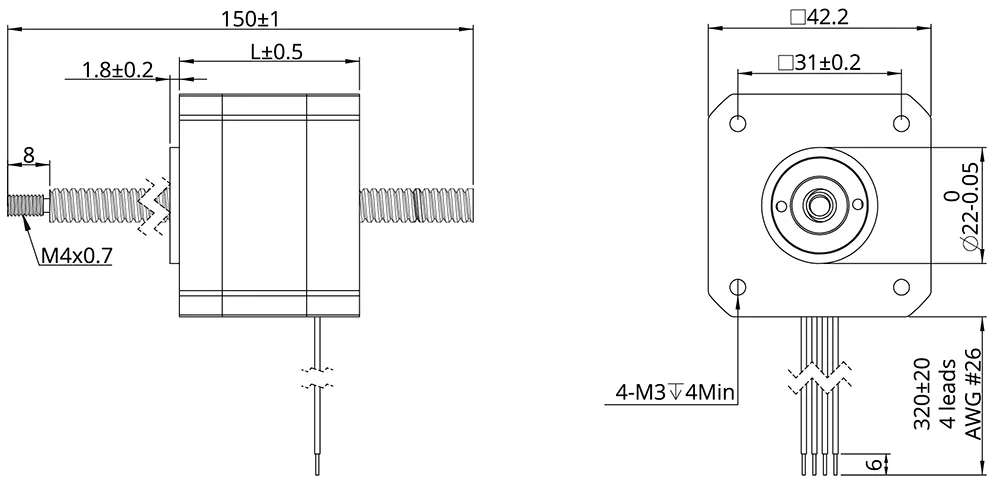

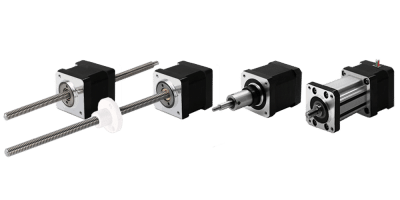

Size 17 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
Size 17 [42mm] Stepper Lead Screw Linear Actuator is widely used for linear movement applications, providing up to 330N of continuous thrust.
Size 17 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
| Specification | 17-2110 |
|---|---|
| Voltage | 3.8 V |
| Current | 1 A |
| Resistance | 3.8 Ω |
| Inductance | 5 mH |
| Weight | 254 g |
| Lead Wire No. | 4 |
| Motor Length | 34.1 mm |
