Description

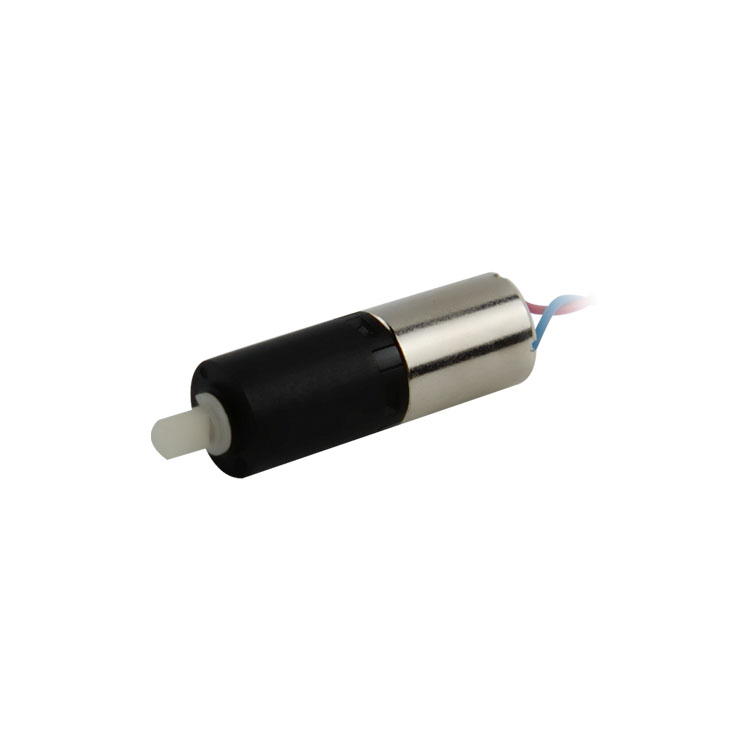

6 mm Micro DC Gear Motor
| Parameter | Unit | 0615N5M01-122-3.0 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistance | Ω | 19 |
| No-load speed | rpm | 12200 |
| No-load current | mA | 10 |
| Stall torque | mNm | 0.33 |
| Stall current | mA | 160 |
| Load torque | mNm | 0.1 |
| Load speed | rpm | 8500 |
| Load current | mA | 60 |
| Max. output power | W | 0.11 |
| Max. efficiency | % | 56 |
| Back-EMF constant | mV/rpm | 0.2 |
| Torque constant | mNm/A | 2.2 |
| Speed/torque gradient | rpm/mNm | 37000 |
| Rotor inertia | gcm² | 0.015 |
| Weight | g | 2.5 |
| Operating temperature range | °C | -10~+80 |
Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | — | 23~41 | 110~266 | 531~1708 | — | — |
| Max. rated torque | mNm | — | 33 | 33 | 33 | — | — |
| Max. momentary torque | mNm | — | 50 | 50 | 50 | — | — |
| Length（L） | mm | — | 12.1 | 14.5 | 16.9 | — | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Metal injection | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
