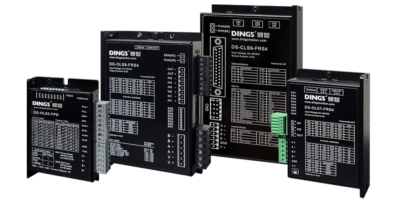

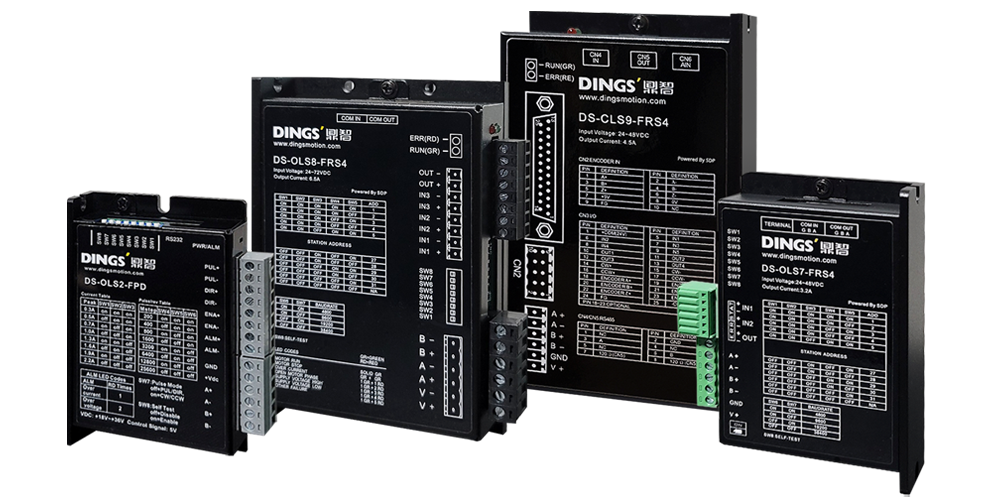

KOCO offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available. From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.
KOCO offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available. From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.
| Parameter | Unit | DS-CLS3-FETC-4I | DS-CLS9-FETC-2I | DS-CLS9-FETC-2A |
|---|---|---|---|---|
| Applied Motor | Two phase open / closed loop incremental stepper motor | Two phase open / closed loop incremental stepper motor | Two phase open / closed loop incremental stepper motor | |
| Power Supply | V | DC 24 – 36V | DC 24 – 48 | DC 24 – 48V |
| Output Current | A | 0.4A – 3A / Phase (Peak Value) | 0.4A – 6.5A | 0.4A – 6.5A |
| Drive Method | Full-bridge bipolar PWM | Full-bridge bipolar PWM | Full-bridge bipolar PWM | |
| Initialization time | 2s | 2s | 2s | |
| Input Signal ( 1 probe input, 3 universal input signal) | Optocoupler input voltage H = 24V , L = 0 – 0.8V, Current 5-8 mA | ( 1 probe input, 3 universal input signal) Optokoppler input voltage H = 24V , L = 0 – 0.8V, Current 5-8 mA | Optokoppler input voltage H = 24V , L = 0 – 0.8V, Current 5-8 mA | |
| Output Signal ( 2 universal output signal) | Optocoupler isolation output, maxi. withstand voltage 30VDC, max. saturation current 50mA | – | Optocoupler isolation output, maxi. withstand voltage 30VDC, max. saturation current 50mA | |
| Size | mm | 144 × 106 × 31 (Excluding connectors) | 144 × 106 × 31 (Excluding connectors) | 156 × 97 × 34 (Excluding connectors) |
| Weight | g | About 450 | About 500 | About 500 |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | |
| Operation Environment Humidity | < 85 % RH, No condensation | < 85 % RH, No condensation | < 85 % RH, No condensation | |
| Operation Environment Temperature | °C | 0 – 40 | 0 – 40 | 0 – 40 |
| Operation Environment Heat dissipation | Install in a ventilated environment | Install in a ventilated environment | Install in a ventilated environment | |
| Output Signals ( 1 circuit brake output ) | – | 156 × 97 × 34 (Excluding connectors) | Optocoupler isolation output, maxi. withstand voltage 30VDC, max. saturation current 500mA |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

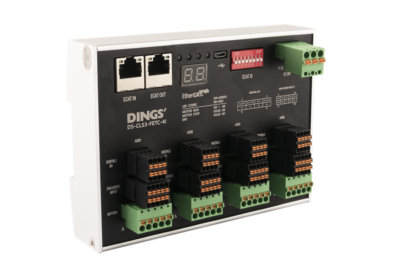

| Parameter | Unit | DS-CLS3-FETC-4I |
|---|---|---|
| Applied Motor | Two phase open / closed loop incremental stepper motor | |
| Power Supply | V | DC 24 – 36V |
| Output Current | A | 0.4A – 3A / Phase (Peak Value) |
| Drive Method | Full-bridge bipolar PWM | |
| Initialization time | 2s | |
| Input Signal ( 1 probe input, 3 universal input signal) | Optocoupler input voltage H = 24V , L = 0 – 0.8V, Current 5-8 mA | |
| Output Signal ( 2 universal output signal) | Optocoupler isolation output, maxi. withstand voltage 30VDC, max. saturation current 50mA | |

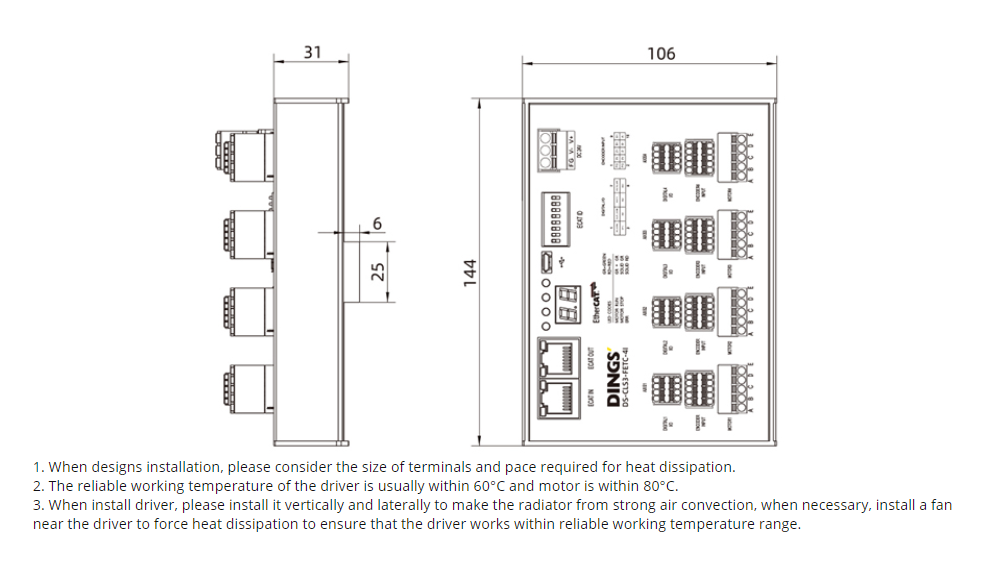

| Size | mm | 144 × 106 × 31 (Excluding connectors) |
| Weight | g | About 450 |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas | |
| Operation Environment Humidity | < 85 % RH, No condensation | |
| Operation Environment Temperature | °C | 0 – 40 |
| Operation Environment Heat dissipation | Install in a ventilated environment | |
| Output Signals ( 1 circuit brake output ) | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | Unit | DS-CLS9-FETC-2I |
|---|---|---|
| Adapted motor | 2-phase hybrid stepper motor with INC encoder | |
| Power Supply | V | DC 24 – 48 |
| Output Current | max | 0.4A – 6.5A |
| Driving Method | Full-bridge bipolar PWM | |
| Initialization time | 2s | |
| Input Signal ( 1 probe input, 3 universal input signal) | ( 1 probe input, 3 universal input signal) Optokoppler input voltage H = 24V , L = 0 – 0.8V, Current 5-8 mA | |
| Output Signal ( 2 universal output signal) | – | |

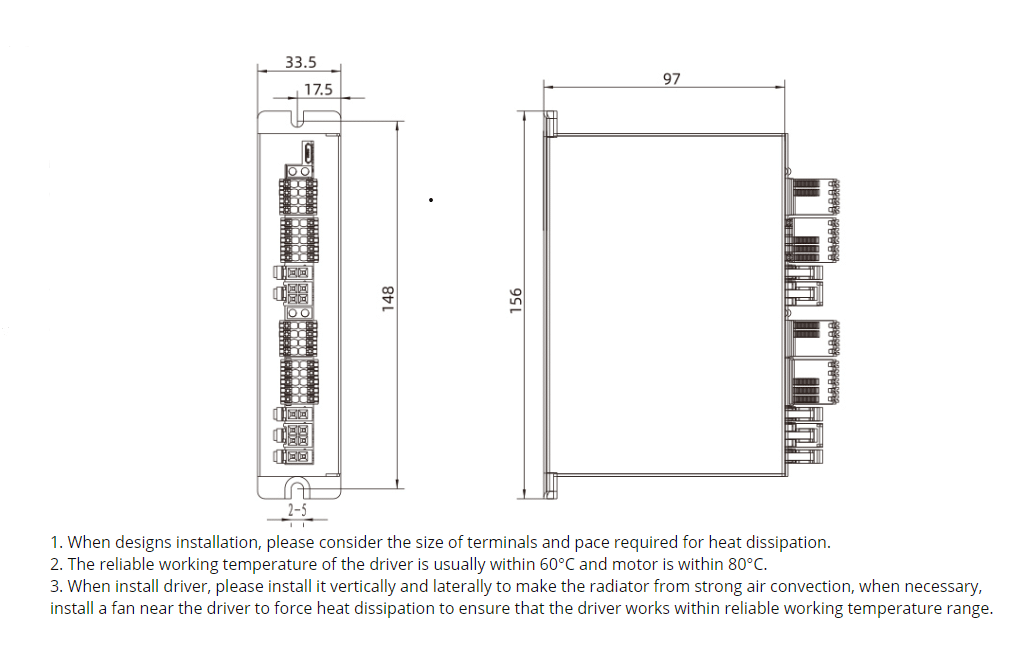

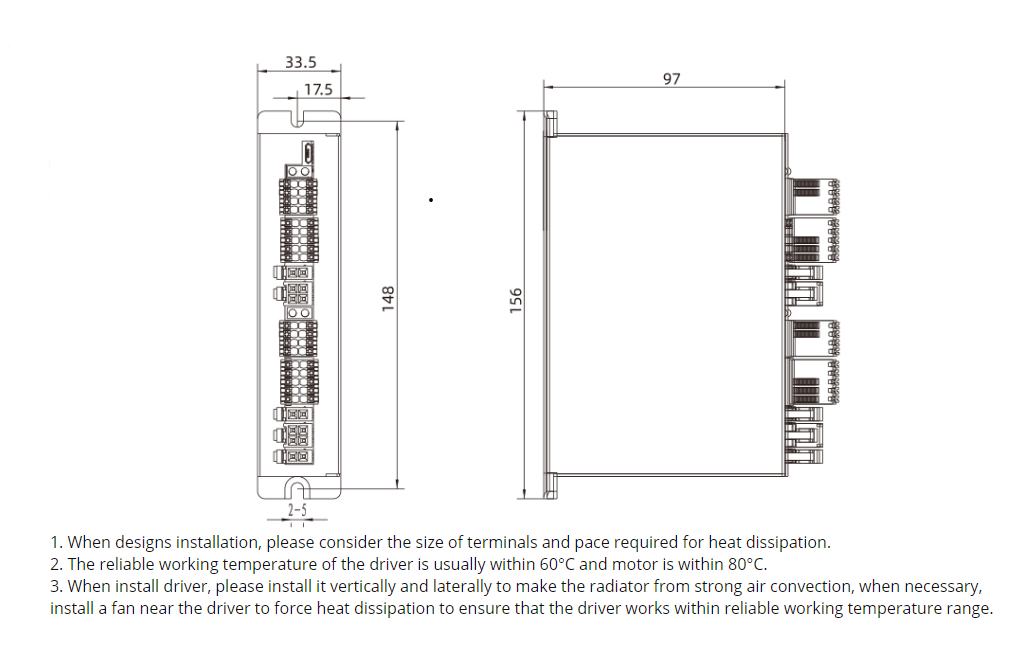

| Output Signals ( 1 circuit brake output ) | mm | 156 × 97 × 34 (Excluding connectors) |
| Weight | g | About 500 |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas | |
| Operation Environment Humidity | < 85 % RH, No condensation | |
| Operation Environment Temperature | °C | 0 – 40 |
| Operation Environment Heat dissipation | Install in a ventilated environment |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

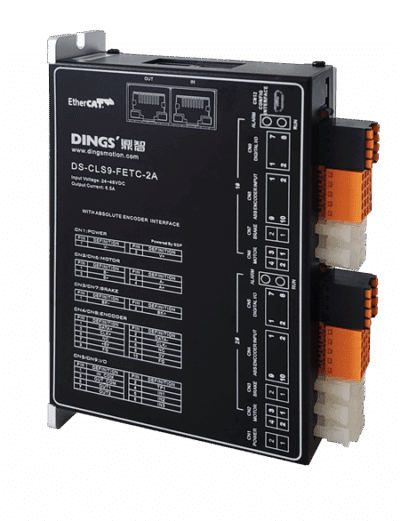

| Parameter | Unit | DS-CLS9-FETC-2A |
|---|---|---|
| Adapted Motor | 2-phase hybrid stepper motor with ABS encoder | |
| Power Supply | V | DC 24 – 48V |
| Output Current | 0.4A – 6.5A | |
| Drive Method | Full-bridge bipolar PWM | |
| Initialization time | 2s | |
| Input Signal ( 1 probe input, 3 universal input signal) | Optokoppler input voltage H = 24V , L = 0 – 0.8V, Current 5-8 mA | |
| Output Signal ( 2 universal output signal) | Optocoupler isolation output, maxi. withstand voltage 30VDC, max. saturation current 50mA | |
| Size | mm | 156 × 97 × 34 (Excluding connectors) |
| Weight | g | About 500 |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas | |
| Operation Environment Humidity | < 85 % RH, No condensation | |
| Operation Environment Temperature | °C | 0 – 40 |
| Operation Environment Heat dissipation | Install in a ventilated environment | |
| Output Signals ( 1 circuit brake output ) | Optocoupler isolation output, maxi. withstand voltage 30VDC, max. saturation current 500mA |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
