Compact ESC for Sensored BLDC Motors

S13-071502H

The S13-071502H is a compact ESC designed for sensored BLDC motors, offering 2A continuous and 3A peak current performance. With a wide 7–15V input range, precise analog/PWM speed control, and selectable features like direction control and speed feedback, this ESC is ideal for demanding applications such as blowers, pumps, and electric tools. Multiple protection functions ensure robust and reliable operation.

Weiterlesen
Artikelnummer: S13-071502H Kategorie:

Beschreibung

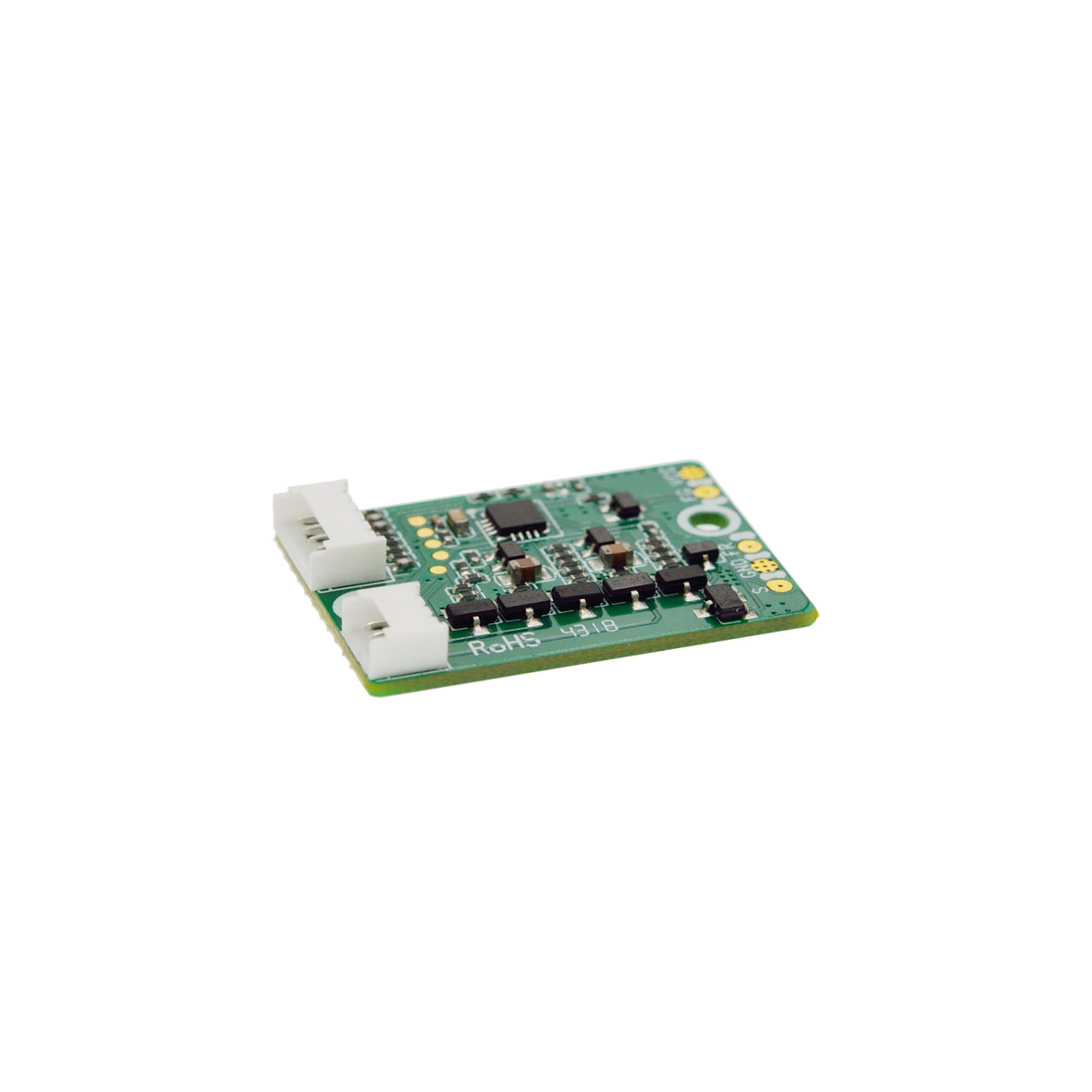

The S13-071502H compact ESC is engineered for high-performance control of sensored BLDC motors in industrial and commercial equipment. Featuring a robust supply voltage range of 7–15 V, this ESC manages up to 2 A continuous current and 3 A peak current (10s), making it suitable for dynamic load conditions.

  • Flexible Speed Control: Supports both analog voltage and PWM signals for precise and adaptable motor speed regulation.
  • Advanced Protection: Includes thermal overload and blockage protection to defend against fault conditions and prolong equipment life.

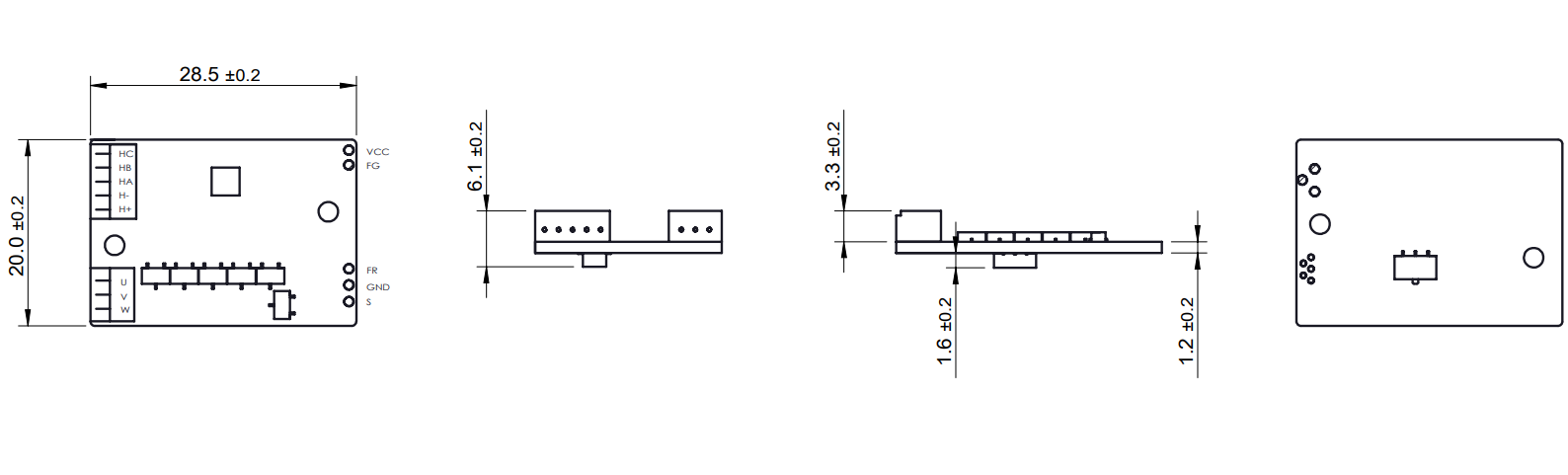

  • Compact Design: Slim profile (28.5 × 20 × 6.1 mm) facilitates integration into space-restricted assemblies.
  • Customizable Options: Direction control (CW/CCW), enable function, and speed feedback (6 pulses per pole pair) are available as optional features.

Designed to meet the reliability demands of blowers, pumps, and electric tools, the S13-071502H offers stable operation across a -20°C to +60°C temperature range. Its sensored configuration ensures smooth, accurate low-speed control. Although overload and inverse polarity protections are not built-in, its other protective features and flexibility make it a competitive choice for OEMs and system integrators who require compact, dependable motor control solutions for critical motion control applications.
