Beschreibung
The S13-071502 is a space-efficient electronic speed controller engineered for reliable operation with sensorless BLDC motors. With an input voltage range of 7–15 V, it delivers 2 A continuous and 3 A peak (10s) current capabilities, making it suitable for a variety of moderate-power motion control applications.
- Key Features:

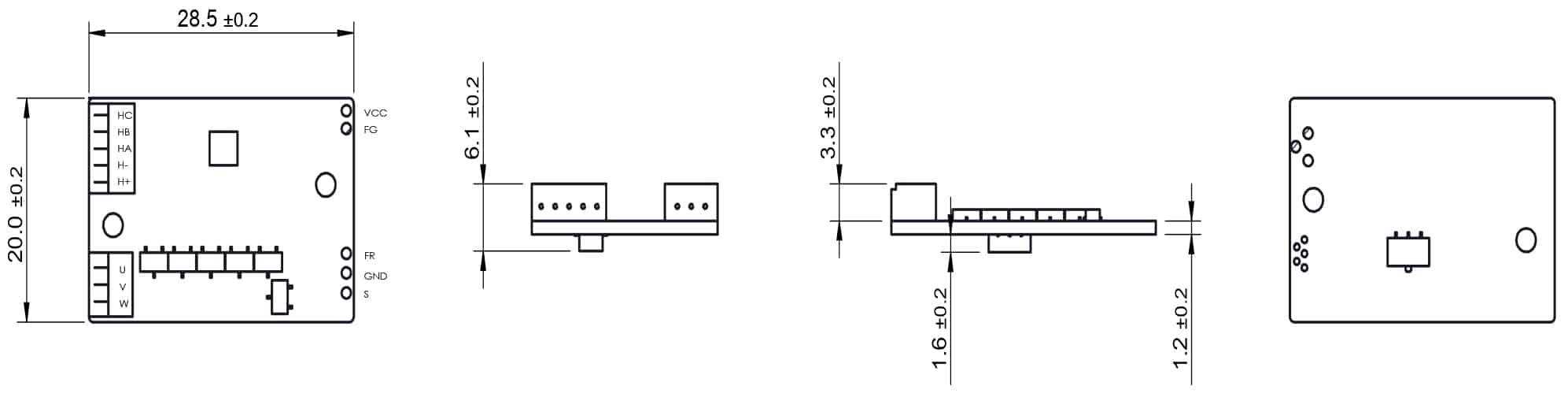

- Compact design: 28.5 × 20 × 6.1 mm
- Speed control via analog voltage or PWM signals
- Blockage protection and thermal overload protection enabled
- Optional CW/CCW direction control, enable function, and 6-pulse per pole pair speed feedback output
- Sensorless BLDC support
- Operating temperature: -20°C to +60°C
- Applications:
- Blowers and ventilators requiring precise, compact controls
- Pumps used in industrial and commercial environments
- Electric tools demanding efficient, space-saving motor control
- Benefits:
- Ideal for OEMs and system integrators prioritizing compact size and robust protection
- Multiple protection mechanisms enhance operational safety
- Flexible integration with analog or PWM speed control options
This ESC is optimized for environments where reliability, flexibility, and compactness are essential for sensorless BLDC motor control, ensuring stable performance in demanding industrial applications.
