MLI3 NEMA 14 with
MDrive Plus NEMA size 14 (36 mm) integrated stepper motor linear actuator. This is a Programmable Motion Control with RS422/485 communications interface for programming and control using MCode, a simple mnemonic language for MDrive products.
Holding torque range oz-in (N-cm): 18…36 (13 … 25)
I/O connector options: Flying Leads, Pluggable
Com connector: IDC, Wire Crimp
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.

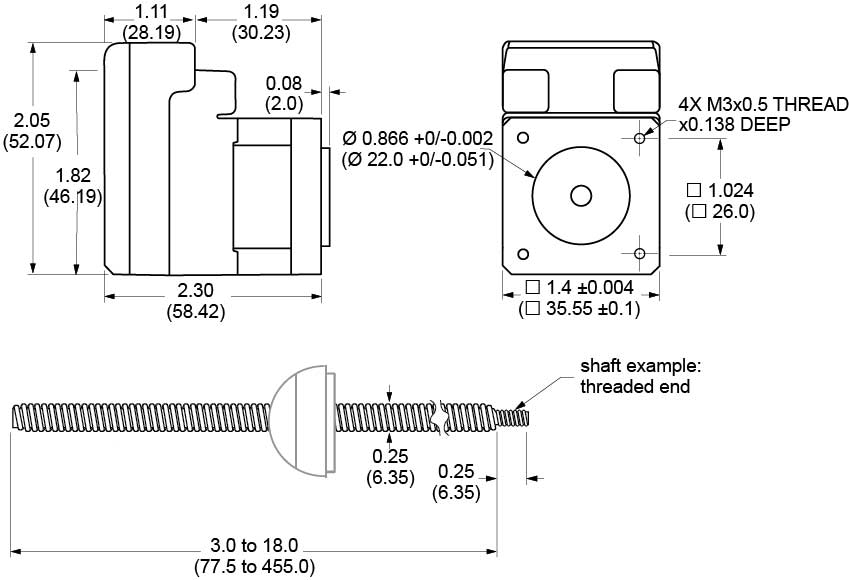

Weiterlesen| Specification | MLI3 NEMA 14 Non-captive Linear Programmable Motion Control IP20 |
|---|---|
| Control type | Programmable Motion |
| Feature set | Standard(Plus) |
| P1 connector options | Flying Leads, Pluggable Power & I/O |
| P2 connector options | IDC, Wire Crimp Comm |
| Communications interface | RS-422/485 |
| Communications features | MCode OS, 4.8 … 115.2 kbps baud rate |
| NEMA size | 14 (36×36 mm) |
| Holding torque range | 0.13 … 0.25 Nm |
| Temperature heatsink (short-time) | max. 85 °C |
| IP rating | IP20 |
| Input voltage | +12 to +48 +VDC |
| Power supply current requirement | 1.0 A |
| Aux-logic supply voltage | 12 … 24 +VDC |
| Aux-Logic Supply Current | 194 mA max |
| I/O Specifications | MLI3 NEMA 14 Non-captive Linear Programmable Motion Control IP20 |
|---|---|
| I/O functions | Programmable I/Os |
| # of I/O | 4 I/O points, programmable as sinking outputs or sinking and sourcing inputs |
| Logic Range | Inputs and outputs tolerant to +24 VDC, inputs TTL compatible |
| Output Sink Current | Up to 600 mA per channel |
| Isoation | None |
| Protection | Over temp, short circuit, transient over voltage, over voltage, inductive clamp |
| Dedicated I/O function | Caputure input, trip output |
| Logic range | 0 to +5 VDC, TTL compatible |
| Analog input resolution | 10 Bits |
| Range (selectable) | 0 to +5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA |
| Parameter settings | MLI3 NEMA 14 Non-captive Linear Programmable Motion Control IP20 |
|---|---|
| Counter type | Position and Encoder |
| Counter Resolution | 32 Bits |
| Counter edge rate | 5 MHz |
| Velocity range | ± 5,000.000 steps/sec |
| Velocity resolution | 0.5961 steps/sec |
| Accel/Decel range | 1.5 X 10^9 steps/sec2 |
| Accel/Decel resolution | 90.9 steps/sec2 |
| Open Loop / Absolute Encoder | MLI3 NEMA 14 Non-captive Linear Programmable Motion Control IP20 |
|---|---|
| Microstep resolution | 20 # of settings |
| Microstep resolution | 200 … 51200 Range steps/rev |
| Encoder type | Internal, differential, magnetic |
| Encoder resolution | 512 lines (2048 edges) |
| Steps/Rev | 51200 |
