Beschreibung

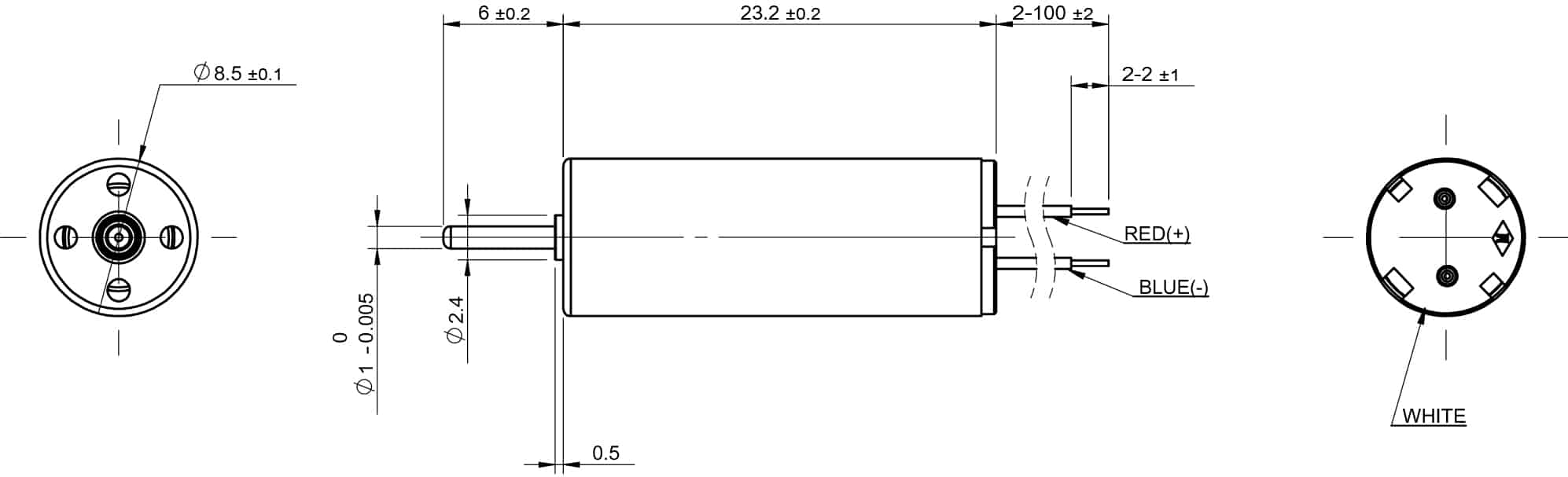

L8.523N5M 8.5mm Mini Coreless Motor Series delivers precision and high performance in a compact footprint. Featuring precious metal brushes for superior conductivity and extended operational life, this family is engineered for demanding miniature drive applications.
- Key Specifications:
- Nominal voltage: 3.0 V
- No-load speed up to 46,000 rpm
- Stall torque up to 5.1 mNm
- Maximum output power: 5.96 W
- Rotor inertia: 0.09 gcm²
- Operating temperature range: -20°C to +120°C
- Weight: 5.6–5.7 g
- Max. efficiency: up to 72.7%
- Application Areas:
- Mini unmanned aerial vehicles (UAVs)
- Remote control hobby products
- Small household appliances
- Customizable Options:
- Lead wire and shaft length
- Specialized coil configurations
- Gearheads for torque adaptation
With a compact 8.5mm diameter and a robust design, the L8.523N5M motor family offers notable agility and performance, making it a preferred solution for precision motion tasks in size-constrained, high-speed environments.
