Beschreibung

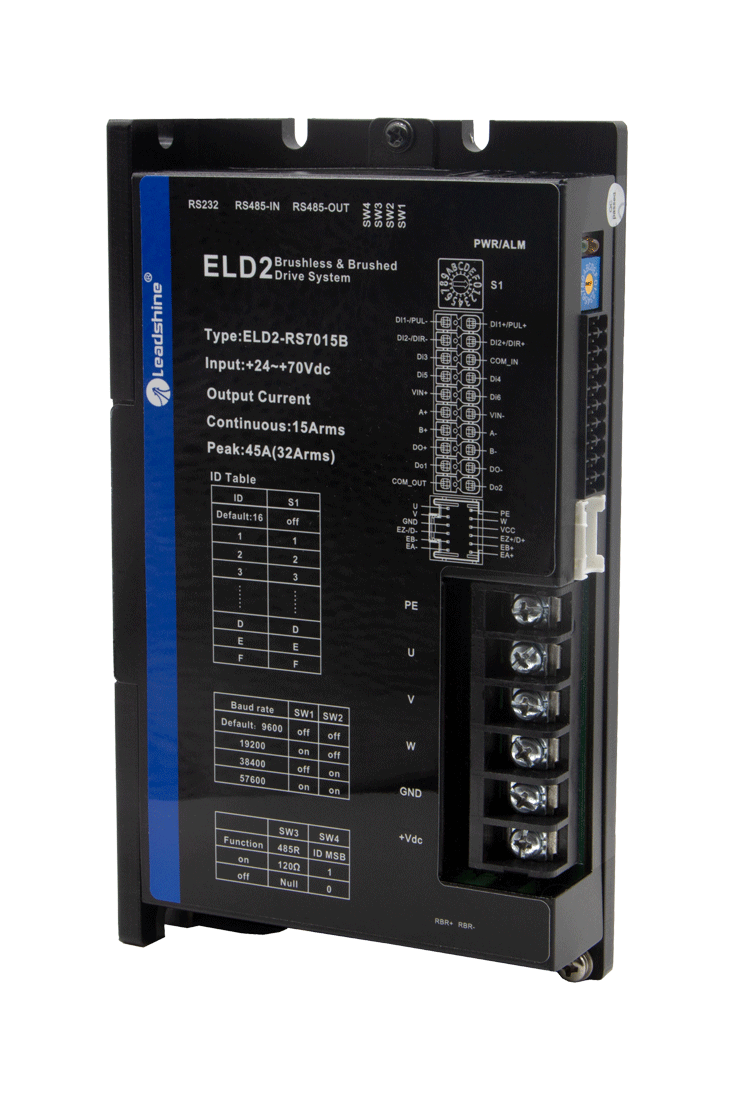

The ELD2-RS7015B servo drive operates in torque, velocity, or position mode. This servo drive can be controlled over the Modbus RTU, ±10V analog commands, and pulse train.
The ELD2-RS7015B servo drive operates in torque, velocity, or position mode. This servo drive can be controlled over the Modbus RTU, ±10V analog commands, and pulse train.
Parameter | Unit | ELD2-RS7015B |
---|---|---|
Input Voltage | 24~70VDC | |
Rated Power | W | 600 |
Rated Current | Arms | 15 |
Peak Current | Arms | 45 |
Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
# of Inputs | 4 | |
# of Outputs | 2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
