Beschreibung

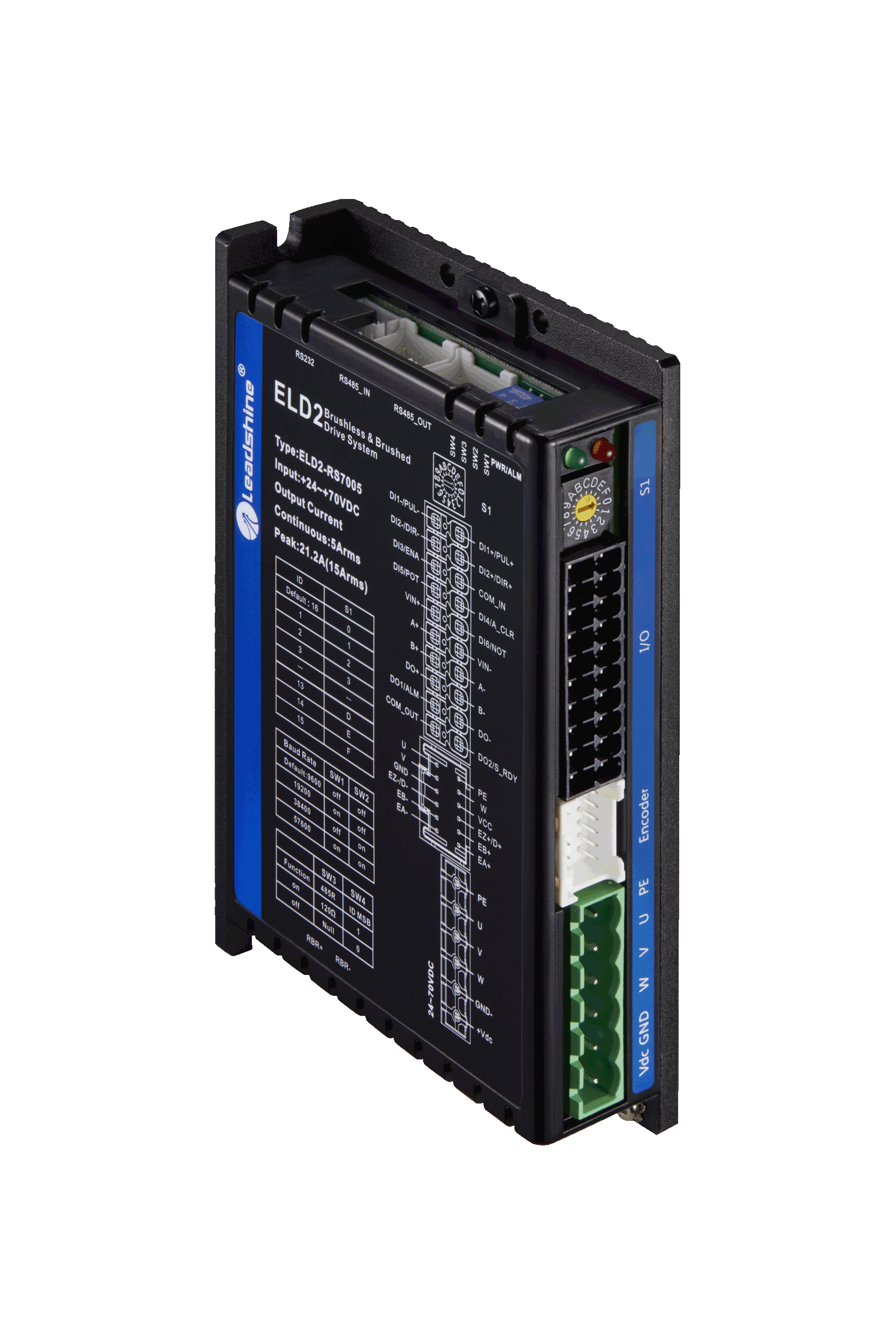

The ELD2-RS7005 servo drive operates in torque, velocity, or position mode. This servo drive can be controlled over the Modbus RTU, ±10V analog commands, and pulse train.
The ELD2-RS7005 servo drive operates in torque, velocity, or position mode. This servo drive can be controlled over the Modbus RTU, ±10V analog commands, and pulse train.
| Parameter | Unit | ELD2-RS7005 |
|---|---|---|
| Input Voltage | 24~70VDC | |
| Rated Power | W | 100 |
| Rated Current | Arms | 5 |
| Peak Current | Arms | 21 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
