Beschreibung
The A18-154820H Compact ESC is engineered specifically for sensored BLDC motor applications, delivering robust motion control in space-constrained environments. Capable of 20A continuous and 30A peak current (10 seconds), and operating within a 15–48V voltage range, it suits a variety of industrial automation needs.
- Performance & Control: Offers precise motor performance with both analog voltage and PWM speed control options. Optional features include direction control, enable input, and speed feedback output (6 pulses per pole pair).
- Reliability & Protection: Equipped with comprehensive safeguards such as overload, blockage, and thermal overload protection to ensure operational safety and minimize equipment downtime. Inverse-polarity protection is not featured.

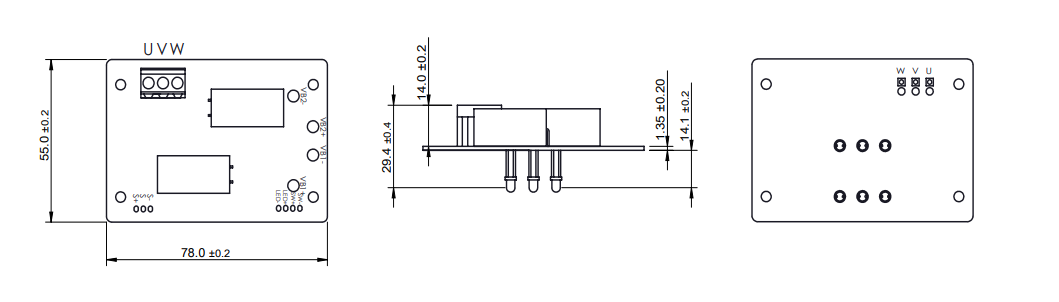

- Compact Dimensions: With a footprint of only 78 x 55 x 29.4 mm, the controller is ideal for installations with limited space.
- Operating Conditions: Designed for operation in temperatures from -20°C to +60°C, providing adaptability across diverse environments.
Typical Applications include blowers, electric tools, and pumps, especially where reliable and efficient speed regulation of sensored BLDC motors is critical. The A18-154820H stands out for its high current handling, flexible control options, and advanced protection features, making it a superior choice for demanding industrial motion control tasks.
