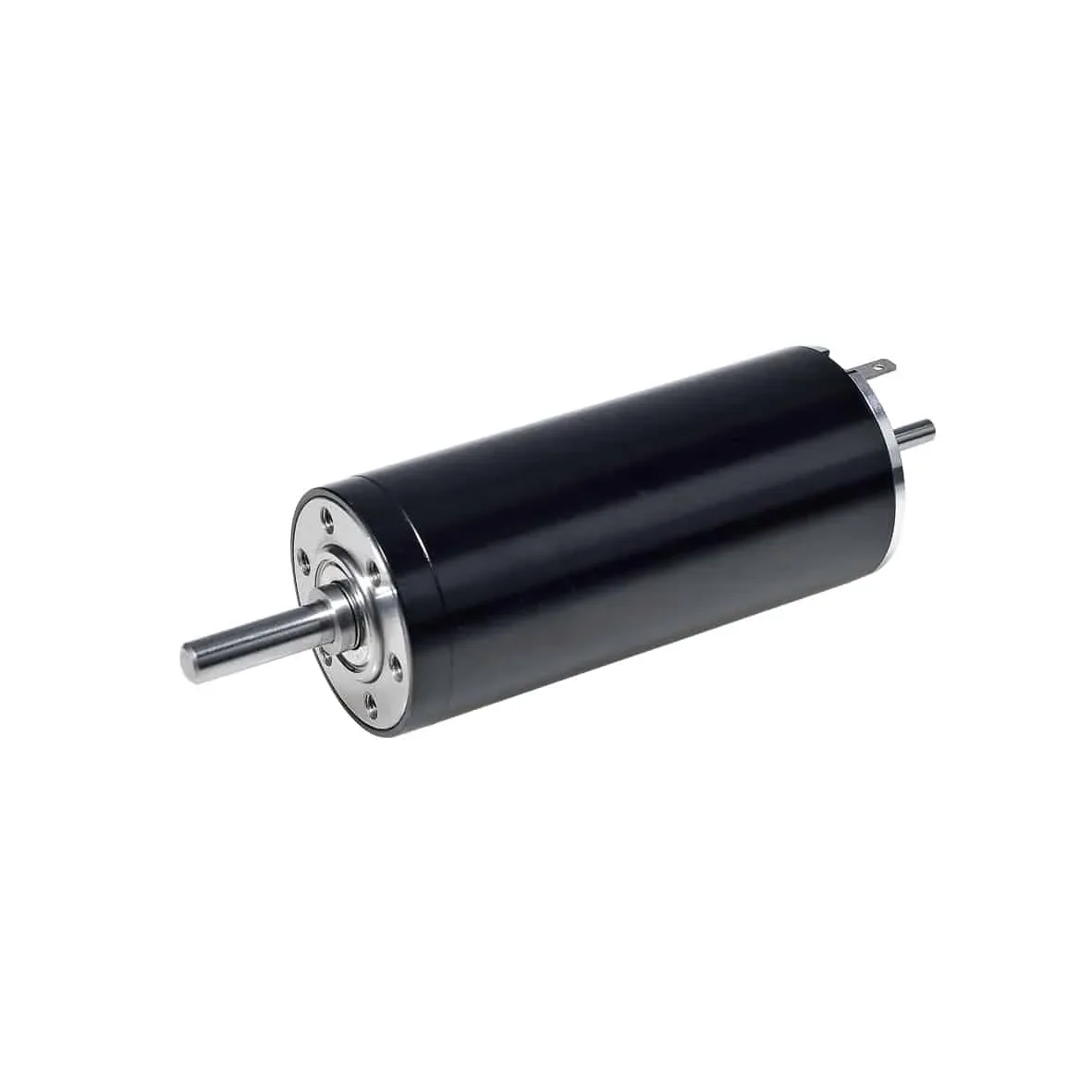

Name: 3068N9C2B - KOCO MOTION
SKU: 3068N9C2B

Specification	3068N9C2B01-85-24.0	3068N9C2B02-85-36.0	3068N9C2B04-87-48.0
Voltage	24.0 V	36.0 V	48.0 V
Terminal resistance	0.9 Ω	1.5 Ω	3.65 Ω
No-load speed	8500 rpm	8500 rpm	8700 rpm
No-load current	150 mA	130 mA	50 mA
Stall torque	711.0 mNm	960.2 mNm	687.6 mNm
Stall current	26670 mA	24000 mA	13150 mA
Nominal torque	60.0 mNm	86.0 mNm	30.0 mNm
Nominal speed	7780 rpm	7740 rpm	8320 rpm
Nominal current	2390 mA	2270 mA	620 mA
Max. output power	158 W	214 W	157 W
Max. efficiency	86 %	86 %	88 %
Back-EMF constant	2.8 mV/rpm	4.2 mV/rpm	5.5 mV/rpm
Torque constant	26.8 mNm/A	40.2 mNm/A	52.5 mNm/A
Speed/torque gradient	12.0 rpm/mNm	8.9 rpm/mNm	12.7 rpm/mNm
Rotor inertia	33 g·cm²	33 g·cm²	33 g·cm²
Weight	250 g	250 g	250 g
Thermal resistance housing-ambient	6.2 K/W	6.2 K/W	6.2 K/W
Thermal resistance winding-housing	3.8 K/W	3.8 K/W	3.8 K/W
Thermal time constant motor	225 s	225 s	225 s
Thermal time constant winding	7.8 s	7.8 s	7.8 s
Operating temperature range	-20~+120	-20~+120	-20~+120
Thermal class of winding	155 °C	155 °C	155 °C
Axial play	0.02~0.15	0.02~0.15	0.02~0.15
Radial play	0.025 mm	0.025 mm	0.025 mm
Axial load dynamic	5.6 N	5.6 N	5.6 N
Axial load static	110 N	110 N	110 N
Radial load at 3 mm from mounting face	30 N	30 N	30 N
No. of pole pairs	1	1	1
Bearings	2 ball bearings	2 ball bearings	2 ball bearings
Commutator	metal 9 segments	metal 9 segments	metal 9 segments
Protection class	20 IP	20 IP	20 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

3068N9C2B

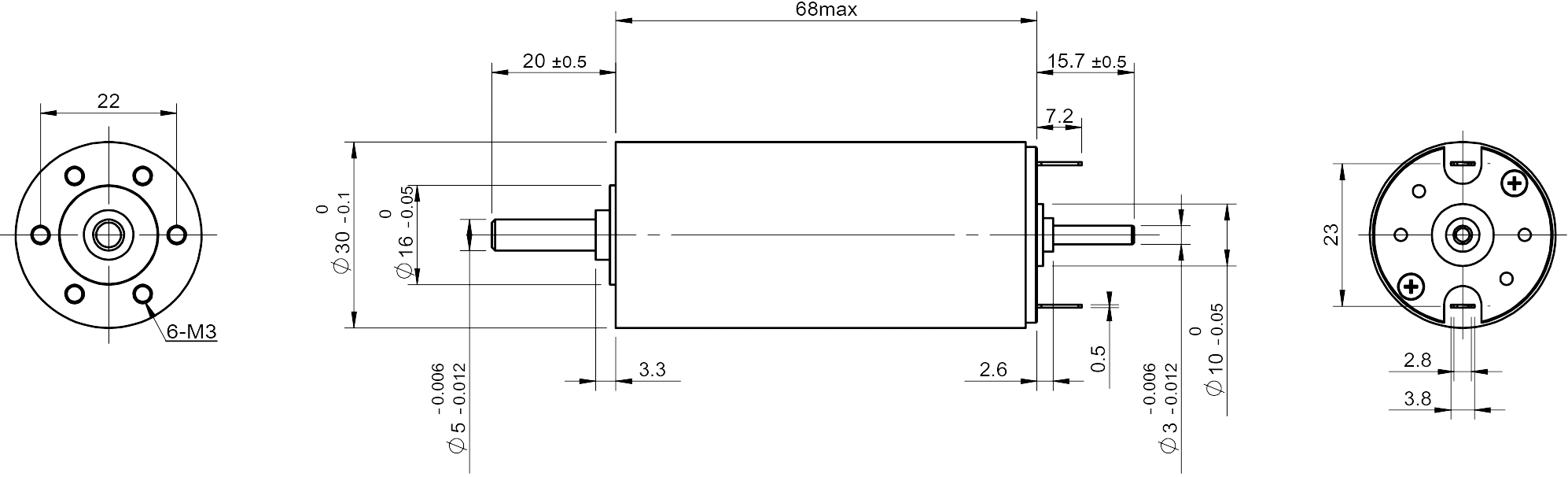

2D drawing 3068N9C2B (png, 28.1K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	3068N9C2B01-85-24.0
Voltage	24.0 V
Terminal resistance	0.9 Ω
No-load speed	8500 rpm
No-load current	150 mA
Stall torque	711.0 mNm
Stall current	26670 mA
Nominal torque	60.0 mNm
Nominal speed	7780 rpm
Nominal current	2390 mA
Max. output power	158 W
Max. efficiency	86 %
Back-EMF constant	2.8 mV/rpm
Torque constant	26.8 mNm/A
Speed/torque gradient	12.0 rpm/mNm
Rotor inertia	33 g·cm²
Weight	250 g
Thermal resistance housing-ambient	6.2 K/W
Thermal resistance winding-housing	3.8 K/W
Thermal time constant motor	225 s
Thermal time constant winding	7.8 s
Operating temperature range	-20~+120 °C
Thermal class of winding	155 °C
Axial play	0.02~0.15 mm
Radial play	0.025 mm
Axial load dynamic	5.6 N
Axial load static	110 N
Radial load at 3 mm from mounting face	30 N
No. of pole pairs	1
Bearings	2 ball bearings
Commutator	metal 9 segments
Protection class	20 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

3068N9C2B

2D drawing 3068N9C2B (png, 28.1K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	3068N9C2B02-85-36.0
Voltage	36.0 V
Terminal resistance	1.5 Ω
No-load speed	8500 rpm
No-load current	130 mA
Stall torque	960.2 mNm
Stall current	24000 mA
Nominal torque	86.0 mNm
Nominal speed	7740 rpm
Nominal current	2270 mA
Max. output power	214 W
Max. efficiency	86 %
Back-EMF constant	4.2 mV/rpm
Torque constant	40.2 mNm/A
Speed/torque gradient	8.9 rpm/mNm
Rotor inertia	33 g·cm²
Weight	250 g
Thermal resistance housing-ambient	6.2 K/W
Thermal resistance winding-housing	3.8 K/W
Thermal time constant motor	225 s
Thermal time constant winding	7.8 s
Operating temperature range	-20~+120 °C
Thermal class of winding	155 °C
Axial play	0.02~0.15 mm
Radial play	0.025 mm
Axial load dynamic	5.6 N
Axial load static	110 N
Radial load at 3 mm from mounting face	30 N
No. of pole pairs	1
Bearings	2 ball bearings
Commutator	metal 9 segments
Protection class	20 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

3068N9C2B

2D drawing 3068N9C2B (png, 28.1K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	3068N9C2B04-87-48.0
Voltage	48.0 V
Terminal resistance	3.65 Ω
No-load speed	8700 rpm
No-load current	50 mA
Stall torque	687.6 mNm
Stall current	13150 mA
Nominal torque	30.0 mNm
Nominal speed	8320 rpm
Nominal current	620 mA
Max. output power	157 W
Max. efficiency	88 %
Back-EMF constant	5.5 mV/rpm
Torque constant	52.5 mNm/A
Speed/torque gradient	12.7 rpm/mNm
Rotor inertia	33 g·cm²
Weight	250 g
Thermal resistance housing-ambient	6.2 K/W
Thermal resistance winding-housing	3.8 K/W
Thermal time constant motor	225 s
Thermal time constant winding	7.8 s
Operating temperature range	-20~+120 °C
Thermal class of winding	155 °C
Axial play	0.02~0.15 mm
Radial play	0.025 mm
Axial load dynamic	5.6 N
Axial load static	110 N
Radial load at 3 mm from mounting face	30 N
No. of pole pairs	1
Bearings	2 ball bearings
Commutator	metal 9 segments
Protection class	20 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

3068N9C2B

2D drawing 3068N9C2B (png, 28.1K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
