Motor Characteristics
| Parameter | Unit | 11N2105 | 11N2110 | 11N2210 | 11N2216 |
|---|---|---|---|---|---|
| Rated voltage | V | 4.5 | 2.2 | 4.1 | 2.4 |
| Current | A | 0.5 | 1 | 1 | 1.6 |
| Winding resistance | Ω | 9.1 | 2.1 | 4.1 | 1.5 |
| Inductance | mH | 6 | 1.5 | 4 | 1.3 |
| Lead Wire No. | 4 | 4 | 4 | 4 | |
| Motor length | mm | 33.5 | 33.5 | 45 | 45 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Lead Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 28 mm | 33.5 mm | 11N2105, 11N2110 | 6 mm, 12 mm | A | 0.635 mm | 110 N | 55 N |
| 28 mm | 33.5 mm | 11N2105, 11N2110 | 6 mm, 12 mm | D | 1.27 mm | 84 N | 42 N |
| 28 mm | 33.5 mm | 11N2105, 11N2110 | 6 mm, 12 mm | K | 2.54 mm | 56 N | 28 N |
| 28 mm | 33.5 mm | 11N2105, 11N2110 | 6 mm, 12 mm | R | 5.08 mm | 36 N | 18 N |
| 28 mm | 45 mm | 11N2210, 11N2216 | 6 mm, 12 mm | A | 0.635 mm | 140 N | 70 N |
| 28 mm | 45 mm | 11N2210, 11N2216 | 6 mm, 12 mm | D | 1.27 mm | 120 N | 60 N |
| 28 mm | 45 mm | 11N2210, 11N2216 | 6 mm, 12 mm | K | 2.54 mm | 100 N | 50 N |
| 28 mm | 45 mm | 11N2210, 11N2216 | 6 mm, 12 mm | R | 5.08 mm | 60 N | 30 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

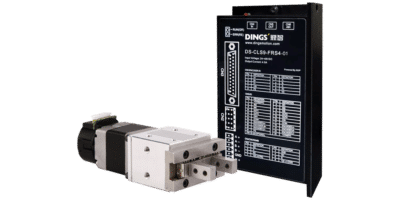

28mm Gripper (6mm, 12mm Stroke)
