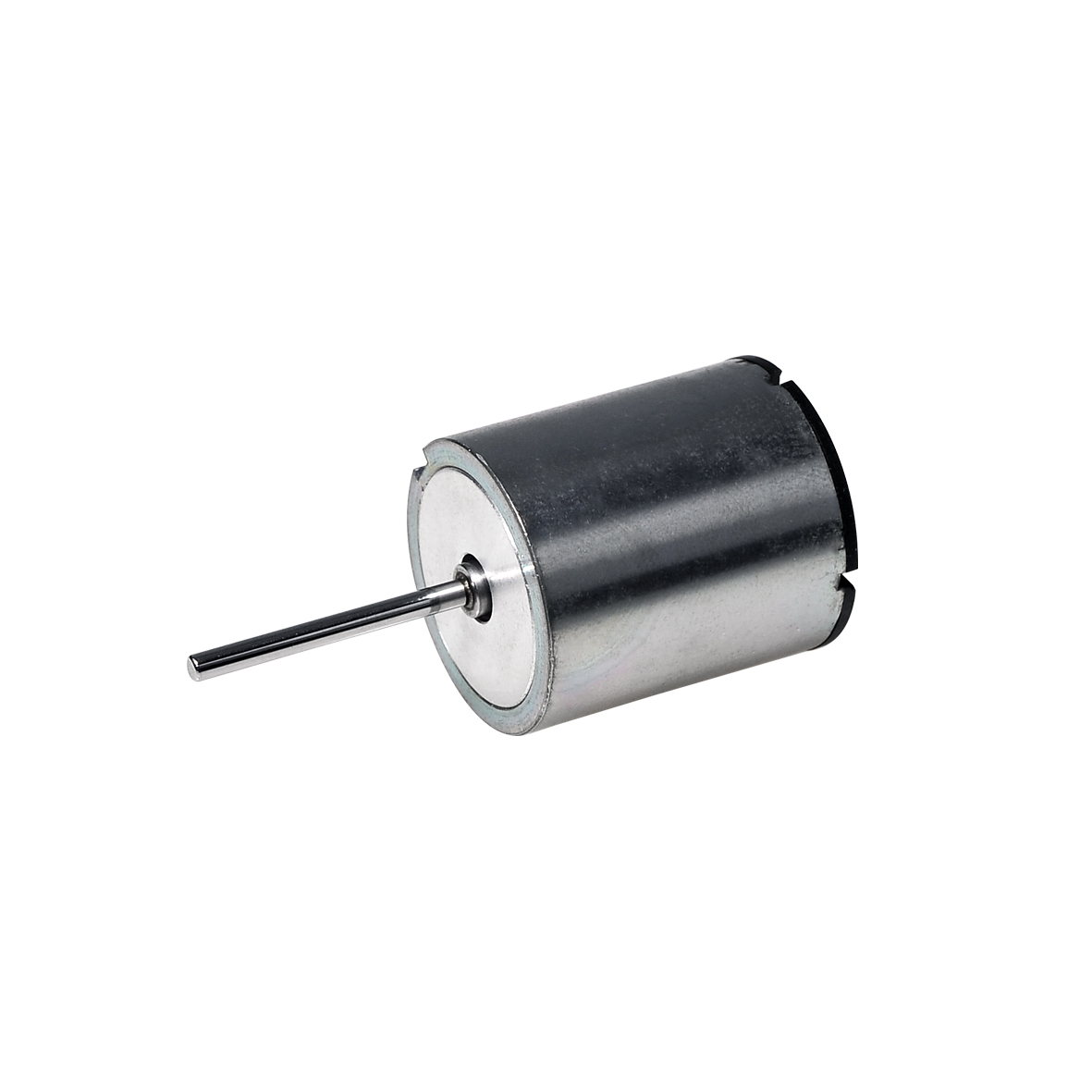

22mm Coreless DC Micro Motor
| Parameter | Unit | 2225N5M01-161-7.2 |
|---|---|---|
| Voltage | V | 7.2 |
| Terminal resistance | Ω | 1.9 |
| No-load speed | rpm | 16100 |
| No-load current | mA | 200 |
| Stall torque | mNm | 14.5 |
| Stall current | mA | 3790 |
| Nominal torque | mNm | 3 |
| Nominal speed | rpm | 12770 |
| Nominal current | mA | 940 |
| Max. output power | W | 6.1 |
| Max. efficiency | % | 59 |
| Back-EMF constant | mV/rpm | 0.4 |
| Torque constant | mNm/A | 4 |
| Speed/torque gradient | rpm/mNm | 1100 |
| Rotor inertia | gcm² | 2.3 |
| Weight | g | 43 |
| Thermal resistance housing-ambient | K/W | 22.3 |
| Thermal resistance winding-housing | K/W | 28.4 |
| Thermal time constant motor | s | 313 |
| Thermal time constant winding | s | 218 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.02~0.15 |
| Radial play | mm | 0.014 |
| Axial load dynamic | N | 2 |
| Axial load static | N | 150 |
| Radial load at 3 mm from mounting face | N | 4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 40 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
