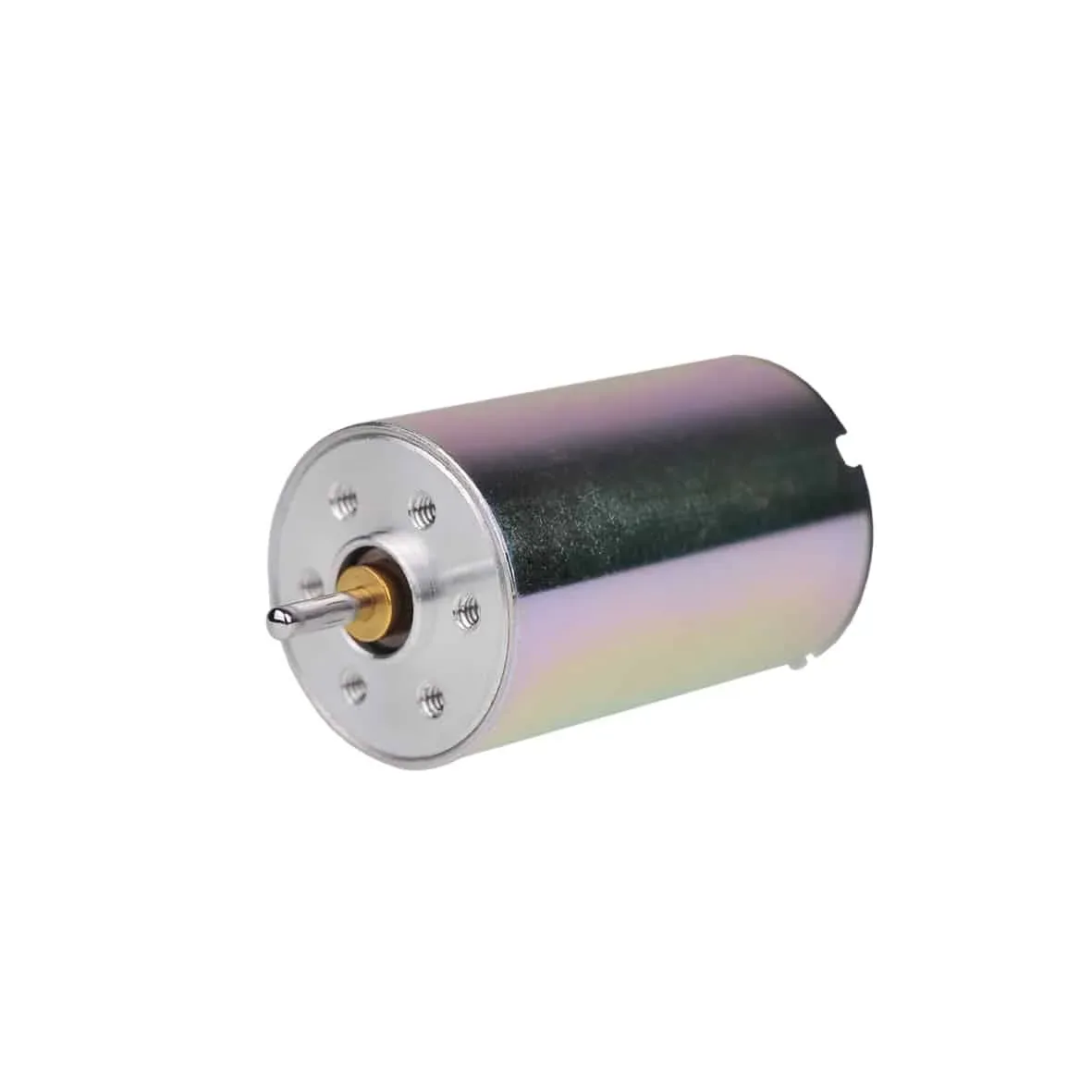

| Parameter | Unit | 1625N5M24-60-3.7 | 1625N5M25-88-6.0 | 1625N5M17-81-12.0 |
|---|---|---|---|---|
| Voltage | V | 3.7 | 6.0 | 12.0 |
| Terminal resistance | Ohm | 7.6 | 3.1 | 16.5 |
| No-load speed | rpm | 6000 | 8800 | 8100 |
| No-load current | mA | 12 | 6 | 10 |
| Stall torque | mNm | 2.7 | 12.6 | 10.0 |
| Stall current | mA | 490 | 1940 | 730 |
| Nominal torque | mNm | 0.5 | 3.0 | 3.0 |
| Nominal speed | rpm | 4910 | 6700 | 5680 |
| Nominal current | mA | 100 | 470 | 230 |
| Max. output power | W | 0.43 | 2.89 | 2.13 |
| Max. efficiency | % | 71 | 89 | 78 |
| Back-EMF constant | mV/rpm | 0.6 | 0.7 | 1.5 |
| Torque constant | mNm/A | 5.7 | 6.5 | 14.0 |
| Speed/torque gradient | rpm/mNm | 2190 | 700 | 810 |
| Rotor inertia | g·cm² | 0.78 | 0.8 | 0.8 |
| Weight | g | 21.8 | 21.8 | 21.8 |
| Thermal resistance housing-ambient | K/W | 24.8 | 24.8 | 24.8 |
| Thermal resistance winding-housing | K/W | 30.3 | 30.3 | 30.3 |
| Thermal time constant motor | s | 201 | 201 | 201 |
| Thermal time constant winding | s | 175 | 175 | 175 |
| Operating temperature range | °C | -20~+85 | -20~+85 | -20~+85 |
| Thermal class of winding | °C | 130 | 130 | 130 |
| Axial play | mm | 0.02~0.15 | 0.02~0.15 | 0.02~0.15 |
| Radial play | mm | 0.014 | 0.014 | 0.014 |
| Axial load dynamic | N | 0.8 | 0.8 | 0.8 |
| Axial load static | N | 30 | 30 | 30 |
| Radial load at 3 mm from mounting face | N | 1.4 | 1.4 | 1.4 |
| No. of pole pairs | 1 | 1 | 1 | |
| Bearings | 2 sleeve bearings | 2 sleeve bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | metal 5 segments | metal 5 segments | |
| Protection class | IP | 30 | 30 | 30 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

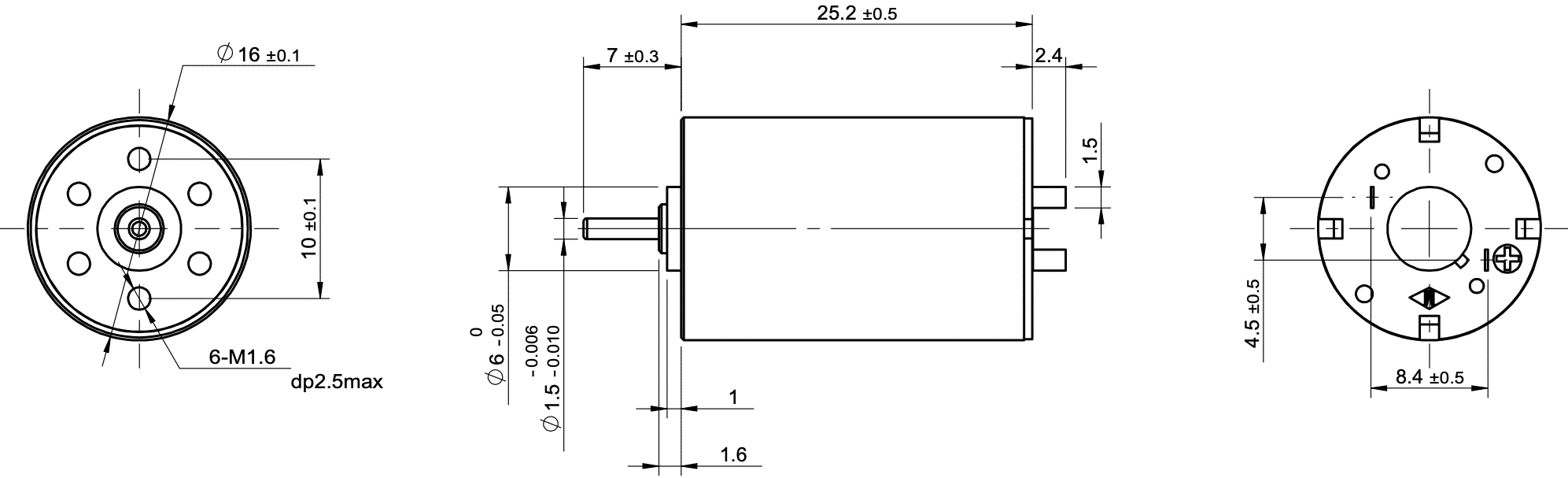

2D drawing 1625N5M
| Parameter | Unit | 1625N5M24-60-3.7 |
|---|---|---|
| Voltage | V | 3.7 |
| Terminal resistance | Ohm | 7.6 |
| No-load speed | rpm | 6000 |
| No-load current | mA | 12 |
| Stall torque | mNm | 2.7 |
| Stall current | mA | 490 |
| Nominal torque | mNm | 0.5 |
| Nominal speed | rpm | 4910 |
| Nominal current | mA | 100 |
| Max. output power | W | 0.43 |
| Max. efficiency | % | 71 |
| Back-EMF constant | mV/rpm | 0.6 |
| Torque constant | mNm/A | 5.7 |
| Speed/torque gradient | rpm/mNm | 2190 |
| Rotor inertia | g·cm² | 0.78 |
| Weight | g | 21.8 |
| Thermal resistance housing-ambient | K/W | 24.8 |
| Thermal resistance winding-housing | K/W | 30.3 |
| Thermal time constant motor | s | 201 |
| Thermal time constant winding | s | 175 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.02~0.15 |
| Radial play | mm | 0.014 |
| Axial load dynamic | N | 0.8 |
| Axial load static | N | 30 |
| Radial load at 3 mm from mounting face | N | 1.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 30 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | Unit | 1625N5M25-88-6.0 |
|---|---|---|
| Voltage | V | 6.0 |
| Terminal resistance | Ohm | 3.1 |
| No-load speed | rpm | 8800 |
| No-load current | mA | 6 |
| Stall torque | mNm | 12.6 |
| Stall current | mA | 1940 |
| Nominal torque | mNm | 3.0 |
| Nominal speed | rpm | 6700 |
| Nominal current | mA | 470 |
| Max. output power | W | 2.89 |
| Max. efficiency | % | 89 |
| Back-EMF constant | mV/rpm | 0.7 |
| Torque constant | mNm/A | 6.5 |
| Speed/torque gradient | rpm/mNm | 700 |
| Rotor inertia | g·cm² | 0.8 |
| Weight | g | 21.8 |
| Thermal resistance housing-ambient | K/W | 24.8 |
| Thermal resistance winding-housing | K/W | 30.3 |
| Thermal time constant motor | s | 201 |
| Thermal time constant winding | s | 175 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.02~0.15 |
| Radial play | mm | 0.014 |
| Axial load dynamic | N | 0.8 |
| Axial load static | N | 30 |
| Radial load at 3 mm from mounting face | N | 1.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 30 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
2D drawing 1625N5M
| Parameter | Unit | 1625N5M17-81-12.0 |
|---|---|---|
| Voltage | V | 12.0 |
| Terminal resistance | Ohm | 16.5 |
| No-load speed | rpm | 8100 |
| No-load current | mA | 10 |
| Stall torque | mNm | 10.0 |
| Stall current | mA | 730 |
| Nominal torque | mNm | 3.0 |
| Nominal speed | rpm | 5680 |
| Nominal current | mA | 230 |
| Max. output power | W | 2.13 |
| Max. efficiency | % | 78 |
| Back-EMF constant | mV/rpm | 1.5 |
| Torque constant | mNm/A | 14.0 |
| Speed/torque gradient | rpm/mNm | 810 |
| Rotor inertia | g·cm² | 0.8 |
| Weight | g | 21.8 |
| Thermal resistance housing-ambient | K/W | 24.8 |
| Thermal resistance winding-housing | K/W | 30.3 |
| Thermal time constant motor | s | 201 |
| Thermal time constant winding | s | 175 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.02~0.15 |
| Radial play | mm | 0.014 |
| Axial load dynamic | N | 0.8 |
| Axial load static | N | 30 |
| Radial load at 3 mm from mounting face | N | 1.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 30 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
