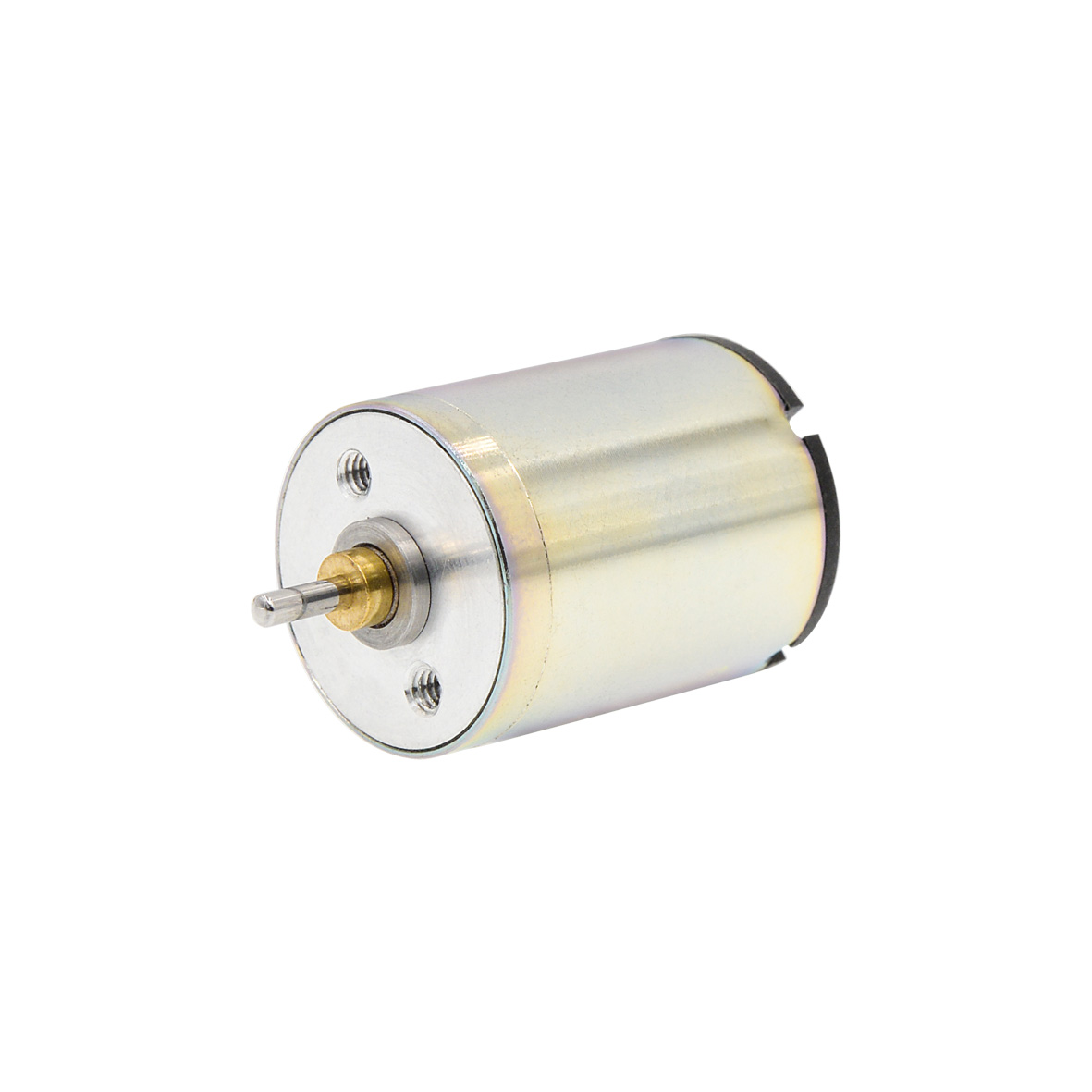

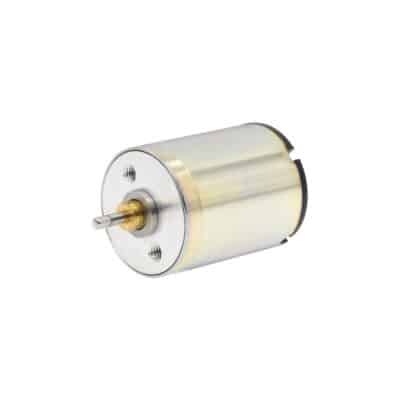

Name: 1620N5M - KOCO MOTION
SKU: 1620N5M

Specification	1620N5M32-48-3.0	1620N5M01-75-5.0	1620N5M30-160-6.0
Voltage	3.0 V	5.0 V	6.0 V
Terminal resistance	6.5 Ω	13.3 Ω	2.5 Ω
No-load speed	4850 rpm	7500 rpm	16000 rpm
No-load current	5 mA	12 mA	60 mA
Stall torque	2.7 mNm	2.3 mNm	8.2 mNm
Stall current	460 mA	380 mA	2400 mA
Nominal torque	0.5 mNm	0.5 mNm	2.5 mNm
Nominal speed	3940 rpm	5850 rpm	11100 rpm
Nominal current	90 mA	90 mA	780 mA
Max. output power	0.34 W	0.45 W	3.43 W
Max. efficiency	80 %	68 %	71 %
Back-EMF constant	0.6 mV/rpm	0.6 mV/rpm	0.4 mV/rpm
Torque constant	5.8 mNm/A	6.2 mNm/A	3.5 mNm/A
Speed/torque gradient	1820 rpm/mNm	3310 rpm/mNm	1960 rpm/mNm
Rotor inertia	0.25 g·cm²	0.25 g·cm²	0.25 g·cm²
Weight	16 g	16 g	16 g
Thermal resistance housing-ambient	35.7 K/W	35.7 K/W	35.7 K/W
Thermal resistance winding-housing	25.6 K/W	25.6 K/W	25.6 K/W
Thermal time constant motor	172 s	172 s	172 s
Thermal time constant winding	122 s	122 s	122 s
Operating temperature range	-20~+85	-20~+85	-20~+85
Thermal class of winding	130 °C	130 °C	130 °C
Axial play	0.02~0.15	0.02~0.15	0.02~0.15
Radial play	0.014 mm	0.014 mm	0.014 mm
Axial load dynamic	0.8 N	0.8 N	0.8 N
Axial load static	30 N	30 N	30 N
Radial load at 3 mm from mounting face	1.4 N	1.4 N	1.4 N
No. of pole pairs	1	1	1
Bearings	2 sleeve bearings	2 sleeve bearings	2 sleeve bearings
Commutator	metal 5 segments	metal 5 segments	metal 5 segments
Protection class	30 IP	30 IP	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1620N5M

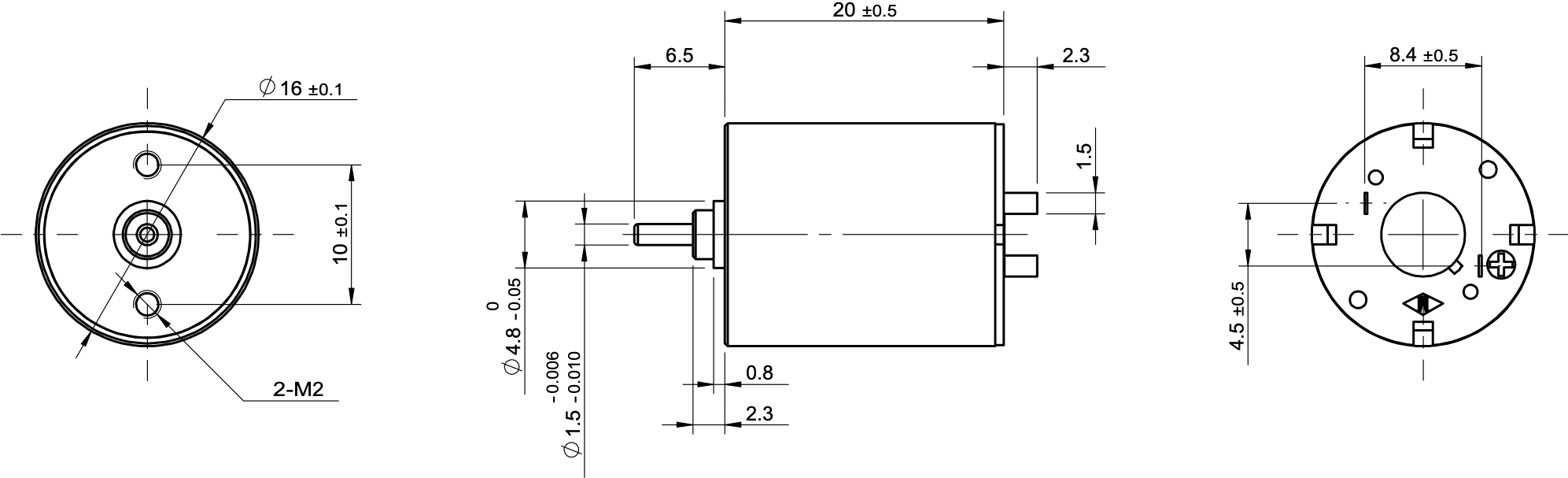

2D drawing 1620N5M (png, 123.42K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	1620N5M32-48-3.0
Voltage	3.0 V
Terminal resistance	6.5 Ω
No-load speed	4850 rpm
No-load current	5 mA
Stall torque	2.7 mNm
Stall current	460 mA
Nominal torque	0.5 mNm
Nominal speed	3940 rpm
Nominal current	90 mA
Max. output power	0.34 W
Max. efficiency	80 %
Back-EMF constant	0.6 mV/rpm
Torque constant	5.8 mNm/A
Speed/torque gradient	1820 rpm/mNm
Rotor inertia	0.25 g·cm²
Weight	16 g
Thermal resistance housing-ambient	35.7 K/W
Thermal resistance winding-housing	25.6 K/W
Thermal time constant motor	172 s
Thermal time constant winding	122 s
Operating temperature range	-20~+85 °C
Thermal class of winding	130 °C
Axial play	0.02~0.15 mm
Radial play	0.014 mm
Axial load dynamic	0.8 N
Axial load static	30 N
Radial load at 3 mm from mounting face	1.4 N
No. of pole pairs	1
Bearings	2 sleeve bearings
Commutator	metal 5 segments
Protection class	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1620N5M

2D drawing 1620N5M (png, 123.42K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	1620N5M01-75-5.0
Voltage	5.0 V
Terminal resistance	13.3 Ω
No-load speed	7500 rpm
No-load current	12 mA
Stall torque	2.3 mNm
Stall current	380 mA
Nominal torque	0.5 mNm
Nominal speed	5850 rpm
Nominal current	90 mA
Max. output power	0.45 W
Max. efficiency	68 %
Back-EMF constant	0.6 mV/rpm
Torque constant	6.2 mNm/A
Speed/torque gradient	3310 rpm/mNm
Rotor inertia	0.25 g·cm²
Weight	16 g
Thermal resistance housing-ambient	35.7 K/W
Thermal resistance winding-housing	25.6 K/W
Thermal time constant motor	172 s
Thermal time constant winding	122 s
Operating temperature range	-20~+85 °C
Thermal class of winding	130 °C
Axial play	0.02~0.15 mm
Radial play	0.014 mm
Axial load dynamic	0.8 N
Axial load static	30 N
Radial load at 3 mm from mounting face	1.4 N
No. of pole pairs	1
Bearings	2 sleeve bearings
Commutator	metal 5 segments
Protection class	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1620N5M

2D drawing 1620N5M (png, 123.42K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	1620N5M30-160-6.0
Voltage	6.0 V
Terminal resistance	2.5 Ω
No-load speed	16000 rpm
No-load current	60 mA
Stall torque	8.2 mNm
Stall current	2400 mA
Nominal torque	2.5 mNm
Nominal speed	11100 rpm
Nominal current	780 mA
Max. output power	3.43 W
Max. efficiency	71 %
Back-EMF constant	0.4 mV/rpm
Torque constant	3.5 mNm/A
Speed/torque gradient	1960 rpm/mNm
Rotor inertia	0.25 g·cm²
Weight	16 g
Thermal resistance housing-ambient	35.7 K/W
Thermal resistance winding-housing	25.6 K/W
Thermal time constant motor	172 s
Thermal time constant winding	122 s
Operating temperature range	-20~+85 °C
Thermal class of winding	130 °C
Axial play	0.02~0.15 mm
Radial play	0.014 mm
Axial load dynamic	0.8 N
Axial load static	30 N
Radial load at 3 mm from mounting face	1.4 N
No. of pole pairs	1
Bearings	2 sleeve bearings
Commutator	metal 5 segments
Protection class	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1620N5M

2D drawing 1620N5M (png, 123.42K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
