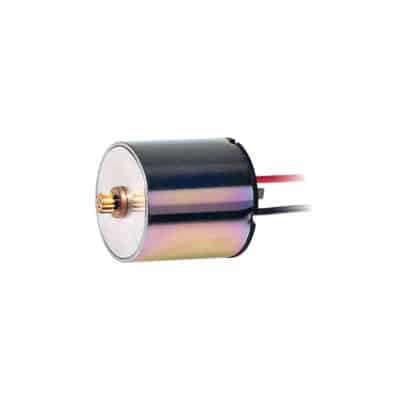

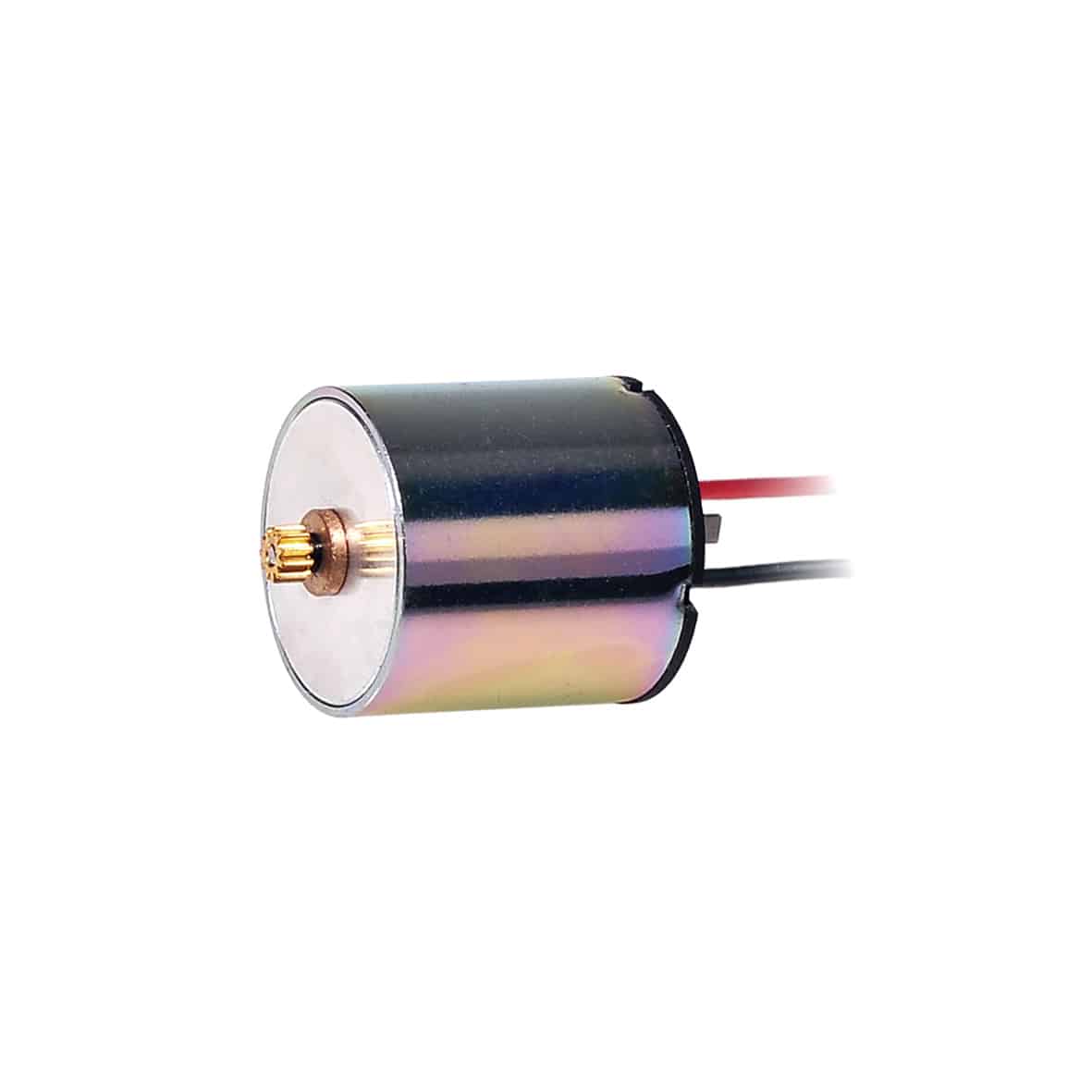

Name: 1515N5M - KOCO MOTION
SKU: 1515N5M

Specification	1515N5M02-255-7.4	1515N5M10-240-12.0	1515N5M07-220-18.0
Voltage	7.4 V	12.0 V	18.0 V
Terminal resistance	2.5 Ω	8.1 Ω	30.8 Ω
No-load speed	25500 rpm	24000 rpm	22000 rpm
No-load current	95 mA	50 mA	15 mA
Stall torque	7.7 mNm	6.6 mNm	4.3 mNm
Stall current	2960 mA	1480 mA	580 mA
Nominal torque	2.0 mNm	1.5 mNm	1.0 mNm
Nominal speed	18860 rpm	18540 rpm	16890 rpm
Nominal current	840 mA	380 mA	150 mA
Max. output power	5.14 W	4.15 W	2.48 W
Max. efficiency	67 %	67 %	71 %
Back-EMF constant	0.3 mV/rpm	0.5 mV/rpm	0.8 mV/rpm
Torque constant	2.7 mNm/A	4.6 mNm/A	7.6 mNm/A
Speed/torque gradient	3320 rpm/mNm	3640 rpm/mNm	5110 rpm/mNm
Rotor inertia	0.21 g·cm²	0.21 g·cm²	0.21 g·cm²
Weight	14.2 g	14.2 g	14.2 g
Thermal resistance housing-ambient	32.1 K/W	32.1 K/W	32.1 K/W
Thermal resistance winding-housing	26.3 K/W	26.3 K/W	26.3 K/W
Thermal time constant motor	130 s	130 s	130 s
Thermal time constant winding	98 s	98 s	98 s
Operating temperature range	-20~+85	-20~+85	-20~+85
Thermal class of winding	130 °C	130 °C	130 °C
Axial play	0.3 mm	0.3 mm	0.3 mm
Radial play	0.012 mm	0.012 mm	0.012 mm
Axial load dynamic	0.15 N	0.15 N	0.15 N
Axial load static	15 N	15 N	15 N
Radial load at 3 mm from mounting face	0.4 N	0.4 N	0.4 N
No. of pole pairs	1	1	1
Bearings	2 sleeve bearings	2 sleeve bearings	2 sleeve bearings
Commutator	metal 5 segments	metal 5 segments	metal 5 segments
Protection class	30 IP	30 IP	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1515N5M

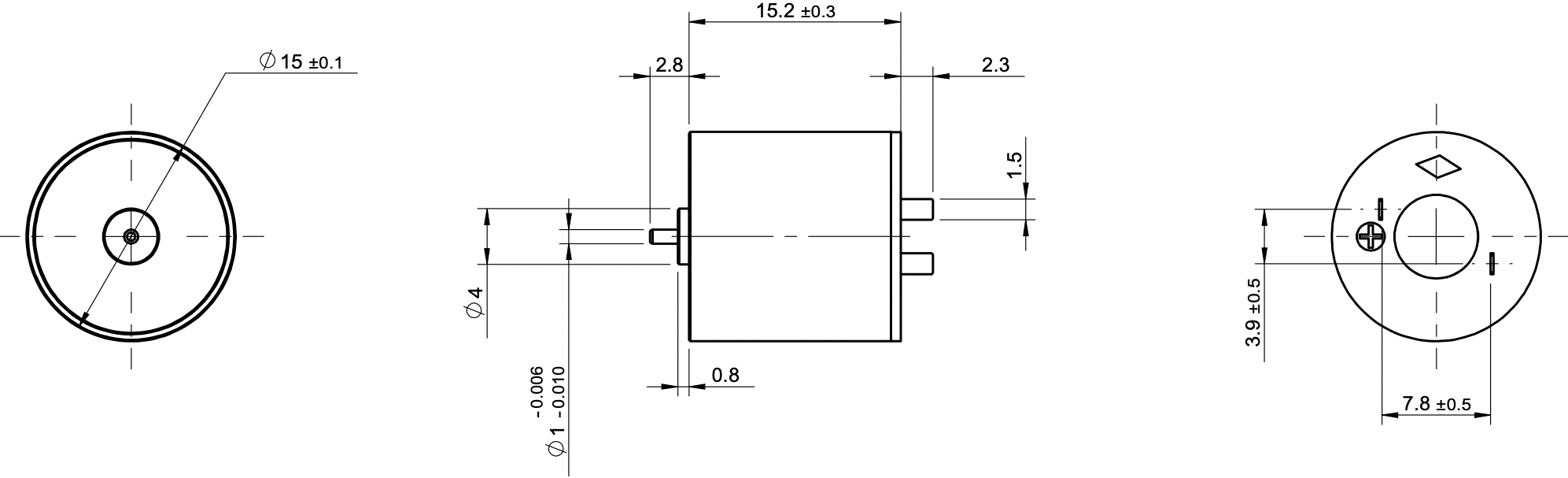

2D drawing 1515N5M (png, 97.42K)
