Description
Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm

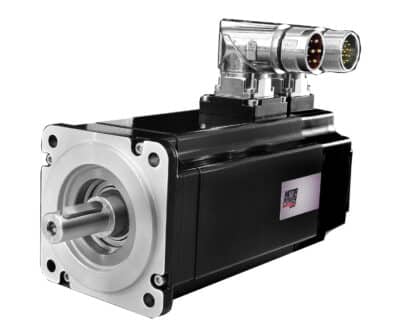

TC-X 80 4 15
Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm
| Parameter | Unit | TC-X 80 4 15 |
|---|---|---|
| Continous Stall Torque (ambient temperature 0 to +40°C) | Nm | 4 |
| Peak Torque (ambient temperature 0 to +40°C) | Nm | 12 |
| Nominal Torque (ambient temperature 0 to +40°C) | Nm | 3.4 |
| Rated Voltage (ambient temperature 0 to +40°C) | Vdc | 230 |
| Nominal power (ambient temperature 0 to +40°C) | W | 1068 |
| Continuous stall Current (ambient temperature 0 to +40°C) | Arms | 4.4 |
| Maximun Current (ambient temperature 0 to +40°C) | Arms | 13.19 |
| Nominal Current (ambient temperature 0 to +40°C) | Arms | 3.85 |
| Nominal working Speed (ambient temperature 0 to +40°C) | rpm | 3000 |
| Maximum working speed 230VAC (ambient temperature 0 to +40°C) | rpm | 3900 |
| Maximum working speed 400VAC (ambient temperature 0 to +40°C) | 5000 | |
| Torque Constant (ambient temperature 0 to +40°C) | Nm/Arms | 0.91 |
| Voltage Constant (ambient temperature 0 to +40°C) | Vrms/Krpm | 55 |
| Winding resistance (ambient temperature 0 to +40°C) | Ohm | 1.9 |
| Winding inductance (ambient temperature 0 to +40°C) | mH | 8.9 |
| Electrical time constant (ambient temperature 0 to +40°C) | ms | 4.7 |
| Thermal Resistance (ambient temperature 0 to +40°C) | °C/W | 1 |
| Mechanical time constant (ambient temperature 0 to +40°C) | ms | 0.54 |
| Rotor Inertia without feedback (ambient temperature 0 to +40°C) | kg·cm² | 1.58 |
| Mass (ambient temperature 0 to +40°C) | Kg | 4.1 |
| Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | N | 110 |
| Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | N | 350 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
