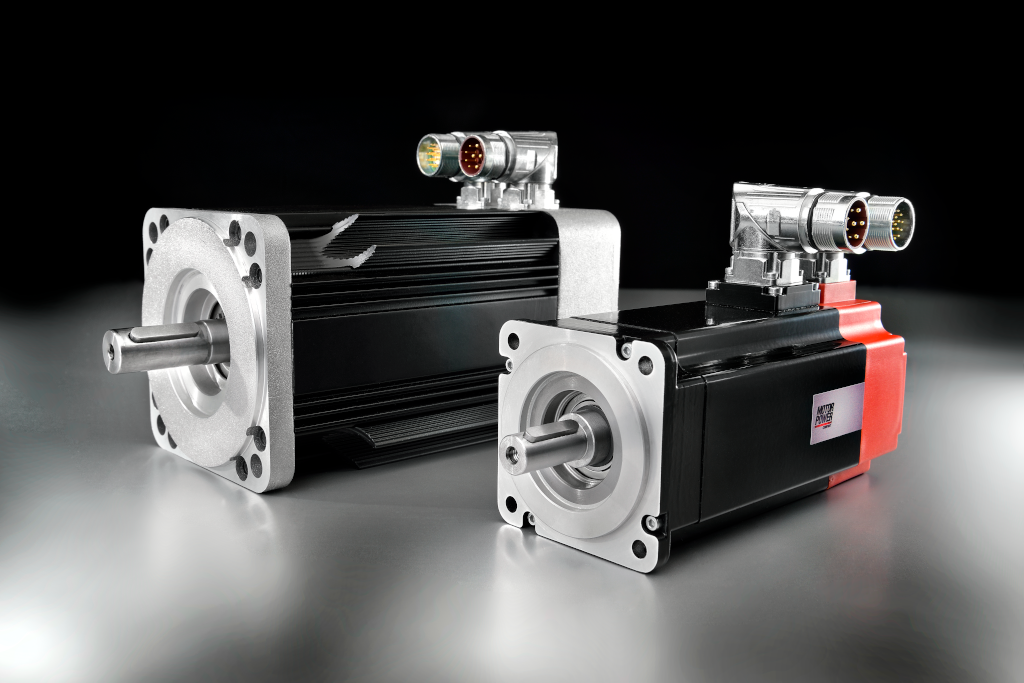

Description
Flange dimensions: 180 mm
Rated Output Power: 2000 – 7500 W
Rated Torque: 9,55 – 47,75 Nm
TC-E 180 6G G4 2
Flange dimensions: 180 mm
Rated Output Power: 2000 – 7500 W
Rated Torque: 9,55 – 47,75 Nm
| Parameter | Unit | TC-E 180 6G G4 2 |
|---|---|---|
| Continuous Stall Torque | Nm | 47.75 |
| Peak Torque | Nm | 119.37 |
| Nominal working Speed | rpm | 1500 |
| Maximum working speed | rpm | 2700 |
| Nominal Torque | Nm | 47.75 |
| Nominal Current | Arms | 41.5 |
| Nominal Power | kW | 7.5 |
| Rated winding voltage | Vac | 230 |
| Maximum winding voltage | Vdc | 360 |
| Maximum voltage to ground | Vac | 255 |
| Maximum current | Arms | 106.9 |
| Continuous Stall current | Arms | 36.08 |
| Voltage Constant | Vrms/Krpm | 80 |
| Torque Constant | Nm/Arms | 1.32 |
| Winding resistance | Ω | 0.062 |
| Winding inductance qu-v | mH | 1.3 |
| Winding inductance du-v | mH | 1.22 |
| Rotor inertia without holding brake | kg·cm² | 142.69 |
| Rotor inertia with holding brake | kg·cm² | 158.69 |
| Rotor high inertia without holding brake | – | |
| Rotor high inertia with holding brake | – | |
| Mass without holding brake | Kg | 41.7 |
| Mass with holding brake | Kg | 46.2 |
| High inertia mass without holding brake | – | |
| High inertia mass with holding brake | – | |
| Thermal time constant | min | 60 |
| Maximum radial shaft load | N | 1200 |
| Maximum axial shaft load | N | 49.7 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
