General NGW type ix fixed by the ring gear, the sun gear is input at high speed and planet carrier is output at low speed. According to a certain reduction ratio, speed of the output end is reduced and output torque is increased.Precision planetary gearbox has advantage as small size, high power density, large speed ratio range, coaxial arrangement of input and output, also high efficiency.
| Parameter | Unit | Stage 3 |
|---|---|---|
| Reduction Ratio | X : 1 | 76.8 |
| Max. Continuous Torque | N.m | 0.10 |
| Max. Continuous Output Power | W | 1.0 |
| Max. Continuous Speed Transfer | rpm | 12000 |
| Max.AxialLoad (Dynamic) | N | 5 |
| Max. Radial Load (5mm from Flange) | N | 15 |
| Max. Efficiency | % | 73 |
| Max. Backlash | ° | 2.0 |

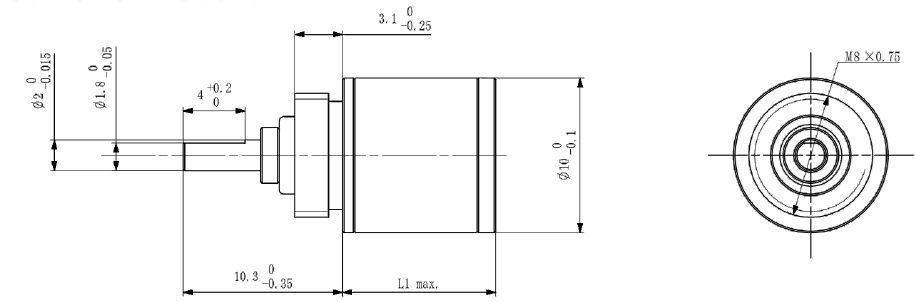

| Gearbox Length | mm | 17.1 |
| Weight | g | 7.7 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
