Motor charactistics
| Parameter | Unit | Stage 1 | Stage 2 | Stage 3 | Stage 4 |
|---|---|---|---|---|---|
| Reduction Ratio | X : 1 | 4.25 | 18 | 76.8 | 326 |
| Max. Continuous Torque | N.m | 0.01 | 0.03 | 0.10 | 0.15 |
| Max. Continuous Output Power | W | 1.6 | 1.2 | 1.0 | 0.4 |
| Max. Continuous Speed Transfer | rpm | 12000 | 12000 | 12000 | 12000 |
| Max.AxialLoad (Dynamic) | N | 5 | 5 | 5 | 5 |
| Max. Radial Load (5mm from Flange) | N | 5 | 10 | 15 | 20 |
| Max. Efficiency | % | 90 | 81 | 73 | 65 |
| Max. Backlash | ° | 1.5 | 1.8 | 2.0 | 2.2 |
| Gearbox Length | mm | 10.1 | 13.6 | 17.1 | 20.6 |
| Weight | g | 6.7 | 7.2 | 7.7 | 8.2 |
Applications
military
medical
automotive part
small home appliances
home appliances
solar energy
intelligent robotics
general automation equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

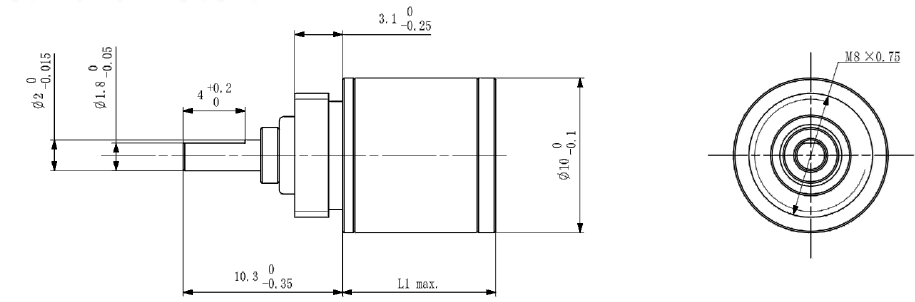

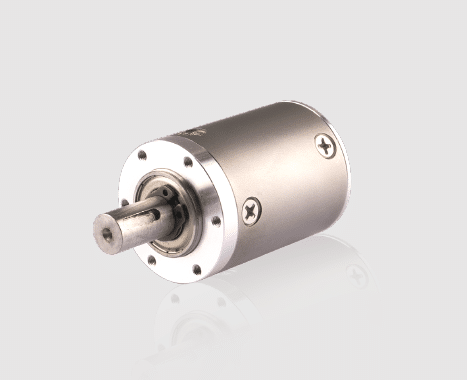

10PGX Φ10mm Series
| Parameter | Unit | Stage 1 |
|---|---|---|
| Reduction Ratio | X : 1 | 4.25 |
| Max. Continuous Torque | N.m | 0.01 |
| Max. Continuous Output Power | W | 1.6 |
| Max. Continuous Speed Transfer | rpm | 12000 |
| Max.AxialLoad (Dynamic) | N | 5 |
| Max. Radial Load (5mm from Flange) | N | 5 |
| Max. Efficiency | % | 90 |
| Max. Backlash | ° | 1.5 |
| Gearbox Length | mm | 10.1 |
| Weight | g | 6.7 |
Applications
military
medical
automotive part
small home appliances
home appliances
solar energy
intelligent robotics
general automation equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | Stage 2 |
|---|---|---|
| Reduction Ratio | X : 1 | 18 |
| Max. Continuous Torque | N.m | 0.03 |
| Max. Continuous Output Power | W | 1.2 |
| Max. Continuous Speed Transfer | rpm | 12000 |
| Max.AxialLoad (Dynamic) | N | 5 |
| Max. Radial Load (5mm from Flange) | N | 10 |
| Max. Efficiency | % | 81 |
| Max. Backlash | ° | 1.8 |
| Gearbox Length | mm | 13.6 |
| Weight | g | 7.2 |
Applications
military
medical
automotive part
small home appliances
home appliances
solar energy
intelligent robotics
general automation equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
10PGX Φ10mm Series
| Parameter | Unit | Stage 3 |
|---|---|---|
| Reduction Ratio | X : 1 | 76.8 |
| Max. Continuous Torque | N.m | 0.10 |
| Max. Continuous Output Power | W | 1.0 |
| Max. Continuous Speed Transfer | rpm | 12000 |
| Max.AxialLoad (Dynamic) | N | 5 |
| Max. Radial Load (5mm from Flange) | N | 15 |
| Max. Efficiency | % | 73 |
| Max. Backlash | ° | 2.0 |
| Gearbox Length | mm | 17.1 |
| Weight | g | 7.7 |
Applications
military
medical
automotive part
small home appliances
home appliances
solar energy
intelligent robotics
general automation equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | Stage 4 |
|---|---|---|
| Reduction Ratio | X : 1 | 326 |
| Max. Continuous Torque | N.m | 0.15 |
| Max. Continuous Output Power | W | 0.4 |
| Max. Continuous Speed Transfer | rpm | 12000 |
| Max.AxialLoad (Dynamic) | N | 5 |
| Max. Radial Load (5mm from Flange) | N | 20 |
| Max. Efficiency | % | 65 |
| Max. Backlash | ° | 2.2 |
| Gearbox Length | mm | 20.6 |
| Weight | g | 8.2 |
Applications
military
medical
automotive part
small home appliances
home appliances
solar energy
intelligent robotics
general automation equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
