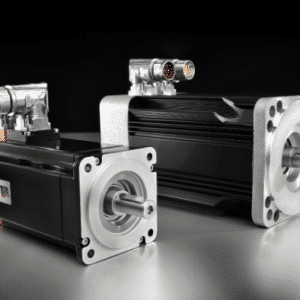

SKA DDR
Stall Torque: 2,0 – 4,7 Nm
Peak Torque: 15,9 – 40 Nm
Maxium Speed @ 230/400 Vac: 1200/1200 rpm
SKA DDR
Stall Torque: 2,0 – 4,7 Nm
Peak Torque: 15,9 – 40 Nm
Maxium Speed @ 230/400 Vac: 1200/1200 rpm
| Specification | SKA DDR 090.60.3,5.17 |
|---|---|
| Stall torque | 3.5 Nm |
| Peak torque | 28 Nm |
| Stall current | 2.19 Arms |
| Peak current | 26.9 Arms |
| Maximum speed @230 Vac 3phase | 1200 rpm |
| Maximum speed @400 Vac 3phase | – |
| Torque constant ± 5% | 1.04 Nm/Arms |
| Voltage constant ± 5% | 96 Vrms/krpm |
| Phase/phase resistance ± 5% | 3.9 Ω |
| Phase/phase inductance | 12 mH |
| Electrical time constant | 3 msec |
| Thermal resistance | 2.6 °C/W |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
