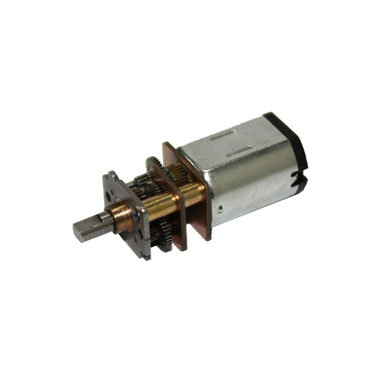

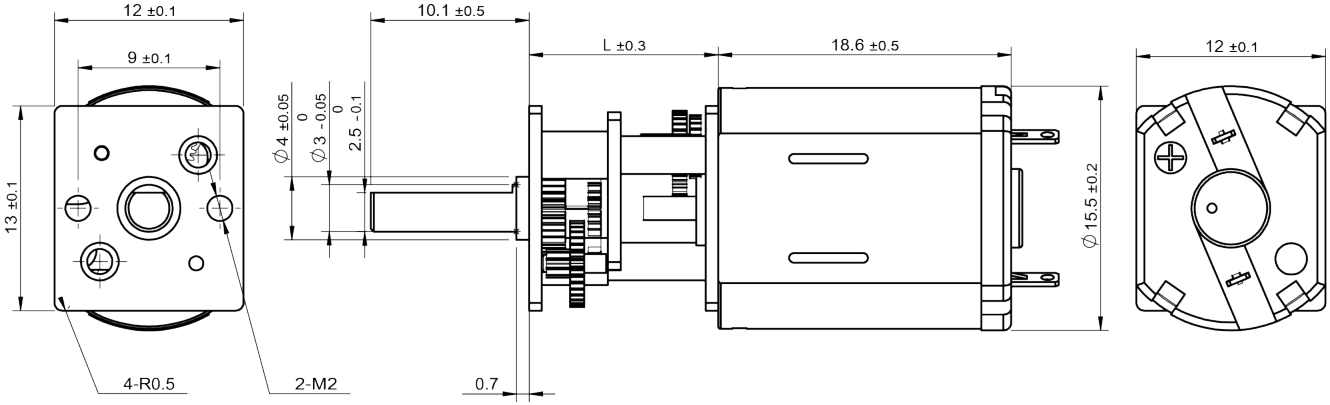

| Characteristics | 1620N5M32-48-3.0 | 1620N5M01-75-5.0 | 1620N5M30-160-6.0 |
|---|---|---|---|
| Voltage | 3.0 V | 5.0 V | 6.0 V |
| Terminal resistance | 6.5 Ω | 13.3 Ω | 2.5 Ω |
| No-load speed | 4850 rpm | 7500 rpm | 16000 rpm |
| No-load current | 5 mA | 12 mA | 60 mA |
| Stall torque | 2.7 mNm | 2.3 mNm | 8.2 mNm |
| Stall current | 460 mA | 380 mA | 2400 mA |
| Nominal torque | 0.5 mNm | 0.5 mNm | 2.5 mNm |
| Nominal speed | 3940 rpm | 5850 rpm | 11100 rpm |
| Nominal current | 90 mA | 90 mA | 780 mA |
| Max. output power | 0.34 W | 0.45 W | 3.43 W |
| Max. efficiency | 80 % | 68 % | 71 % |
| Back-EMF constant | 0.6 mV/rpm | 0.6 mV/rpm | 0.4 mV/rpm |
| Torque constant | 5.8 mNm/A | 6.2 mNm/A | 3.5 mNm/A |
| Speed/torque gradient | 1820 rpm/mNm | 3310 rpm/mNm | 1960 rpm/mNm |
| Rotor inertia | 0.25 g·cm² | 0.25 g·cm² | 0.25 g·cm² |
| Weight | 16 g | 16 g | 16 g |
| Thermal resistance housing-ambient | 35.7 K/W | 35.7 K/W | 35.7 K/W |
| Thermal resistance winding-housing | 25.6 K/W | 25.6 K/W | 25.6 K/W |
| Thermal time constant motor | 172 s | 172 s | 172 s |
| Thermal time constant winding | 122 s | 122 s | 122 s |
| Operating temperature range | -20~+85 | -20~+85 | -20~+85 |
| Thermal class of winding | 130 °C | 130 °C | 130 °C |
| Axial play | 0.02~0.15 | 0.02~0.15 | 0.02~0.15 |
| Radial play | 0.014 mm | 0.014 mm | 0.014 mm |
| Axial load dynamic | 0.8 N | 0.8 N | 0.8 N |
| Axial load static | 30 N | 30 N | 30 N |
| Radial load at 3 mm from mounting face | 1.4 N | 1.4 N | 1.4 N |
| No. of pole pairs | 1 | 1 | 1 |
| Bearings | 2 sleeve bearings | 2 sleeve bearings | 2 sleeve bearings |
| Commutator | metal 5 segments | metal 5 segments | metal 5 segments |
| Protection class | 30 IP | 30 IP | 30 IP |
Applications
medical equipment and devices
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 1620N5M32-48-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 6.5 Ω |
| No-load speed | 4850 rpm |
| No-load current | 5 mA |
| Stall torque | 2.7 mNm |
| Stall current | 460 mA |
| Nominal torque | 0.5 mNm |
| Nominal speed | 3940 rpm |
| Nominal current | 90 mA |
| Max. output power | 0.34 W |
| Max. efficiency | 80 % |
| Back-EMF constant | 0.6 mV/rpm |
| Torque constant | 5.8 mNm/A |
| Speed/torque gradient | 1820 rpm/mNm |
| Rotor inertia | 0.25 g·cm² |
| Weight | 16 g |
| Thermal resistance housing-ambient | 35.7 K/W |
| Thermal resistance winding-housing | 25.6 K/W |
| Thermal time constant motor | 172 s |
| Thermal time constant winding | 122 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | 0.02~0.15 mm |
| Radial play | 0.014 mm |
| Axial load dynamic | 0.8 N |
| Axial load static | 30 N |
| Radial load at 3 mm from mounting face | 1.4 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 30 IP |
Applications
medical equipment and devices
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 1620N5M01-75-5.0 |
|---|---|
| Voltage | 5.0 V |
| Terminal resistance | 13.3 Ω |
| No-load speed | 7500 rpm |
| No-load current | 12 mA |
| Stall torque | 2.3 mNm |
| Stall current | 380 mA |
| Nominal torque | 0.5 mNm |
| Nominal speed | 5850 rpm |
| Nominal current | 90 mA |
| Max. output power | 0.45 W |
| Max. efficiency | 68 % |
| Back-EMF constant | 0.6 mV/rpm |
| Torque constant | 6.2 mNm/A |
| Speed/torque gradient | 3310 rpm/mNm |
| Rotor inertia | 0.25 g·cm² |
| Weight | 16 g |
| Thermal resistance housing-ambient | 35.7 K/W |
| Thermal resistance winding-housing | 25.6 K/W |
| Thermal time constant motor | 172 s |
| Thermal time constant winding | 122 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | 0.02~0.15 mm |
| Radial play | 0.014 mm |
| Axial load dynamic | 0.8 N |
| Axial load static | 30 N |
| Radial load at 3 mm from mounting face | 1.4 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 30 IP |
Applications
medical equipment and devices
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 1620N5M30-160-6.0 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 2.5 Ω |
| No-load speed | 16000 rpm |
| No-load current | 60 mA |
| Stall torque | 8.2 mNm |
| Stall current | 2400 mA |
| Nominal torque | 2.5 mNm |
| Nominal speed | 11100 rpm |
| Nominal current | 780 mA |
| Max. output power | 3.43 W |
| Max. efficiency | 71 % |
| Back-EMF constant | 0.4 mV/rpm |
| Torque constant | 3.5 mNm/A |
| Speed/torque gradient | 1960 rpm/mNm |
| Rotor inertia | 0.25 g·cm² |
| Weight | 16 g |
| Thermal resistance housing-ambient | 35.7 K/W |
| Thermal resistance winding-housing | 25.6 K/W |
| Thermal time constant motor | 172 s |
| Thermal time constant winding | 122 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | 0.02~0.15 mm |
| Radial play | 0.014 mm |
| Axial load dynamic | 0.8 N |
| Axial load static | 30 N |
| Radial load at 3 mm from mounting face | 1.4 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 30 IP |
Applications
medical equipment and devices
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
