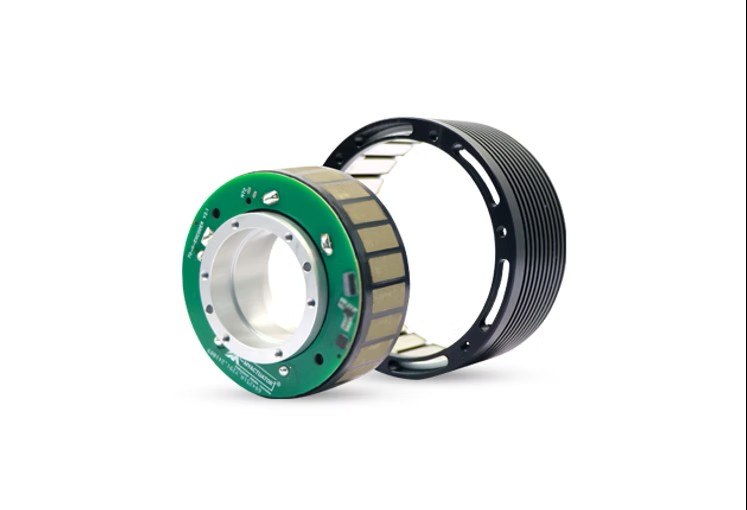

FLO-Series frameless motors are compact 24 V three-phase motors for integrated motion systems requiring low weight and direct-drive performance. Across FLO-50-15 to FLO-90-15, the range delivers 0.35 to 1.5 Nm rated torque, 91.6 to 252 W rated power, and absolute multi-pole encoder feedback.
| Parameter | Unit | FLO-50-15 | FLO-70-15 | FLO-90-15 |
|---|---|---|---|---|
| Input voltage | 24 | 24 | 24 | |
| Back-EMF constant | Vdc/Krpm | 7.93 | 17 | 21.1 |
| Torque constant | Nm/A | 0.07 | 0.18 | 0.23 |
| Phase to phase resistance | Ohm | 0.4 | 0.5 | 0.35 |
| Phase to phase induction | mH | 0.19 | 0.55 | 0.28 |
| Pole pair | 13 | 13 | 17 | |
| Cogging torque | Nm | 12 | 30.83 | 64 |
| 3 phase connection | Y | Y | Y | |
| Encoder type | Absolute (Multi-pole) | Absolute (Multi-pole) | Absolute (Multi-pole) | |
| Weight | kg | 0.19 | 0.33 | 0.46 |
| Insulation grade | F | F | F | |
| No load current | V | 0.32 | 0.21 | 0.35 |
| Rotor Outer Diameter | mm | 50 | 70 | 90 |
| Rated speed | RPM | 2500 | 2400 | 1600 |
| Rated torque | Nm | 0.35 | 0.8 | 1.5 |
| Rated power | W | 91.6 | 200 | 252 |
| Rated current | A | 4.9 | 4.4 | 6.6 |
| Peak torque | Nm | 0.87 | 2 | 3.75 |
| Peak current | A | 14.7 | 13.2 | 19.8 |
| Efficiency | >83 % | >84 % | >83 % |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | FLO-50-15 |
|---|---|---|
| Input voltage | 24 | |
| Back-EMF constant | Vdc/Krpm | 7.93 |
| Torque constant | Nm/A | 0.07 |
| Phase to phase resistance | Ohm | 0.4 |
| Phase to phase induction | mH | 0.19 |
| Pole pair | 13 | |
| Cogging torque | Nm | 12 |
| 3 phase connection | Y | |
| Encoder type | Absolute (Multi-pole) | |
| Weight | kg | 0.19 |
| Insulation grade | F | |
| No load current | V | 0.32 |
| Rotor Outer Diameter | mm | 50 |
| Rated speed | RPM | 2500 |
| Rated torque | Nm | 0.35 |
| Rated power | W | 91.6 |
| Rated current | A | 4.9 |
| Peak torque | Nm | 0.87 |
| Peak current | A | 14.7 |
| Efficiency | >83 % |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | FLO-70-15 |
|---|---|---|
| Input voltage | 24 | |
| Back-EMF constant | Vdc/Krpm | 17 |
| Torque constant | Nm/A | 0.18 |
| Phase to phase resistance | Ohm | 0.5 |
| Phase to phase induction | mH | 0.55 |
| Pole pair | 13 | |
| Cogging torque | Nm | 30.83 |
| 3 phase connection | Y | |
| Encoder type | Absolute (Multi-pole) | |
| Weight | kg | 0.33 |
| Insulation grade | F | |
| No load current | V | 0.21 |
| Rotor Outer Diameter | mm | 70 |
| Rated speed | RPM | 2400 |
| Rated torque | Nm | 0.8 |
| Rated power | W | 200 |
| Rated current | A | 4.4 |
| Peak torque | Nm | 2 |
| Peak current | A | 13.2 |
| Efficiency | >84 % |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | FLO-90-15 |
|---|---|---|
| Input voltage | 24 | |
| Back-EMF constant | Vdc/Krpm | 21.1 |
| Torque constant | Nm/A | 0.23 |
| Phase to phase resistance | Ohm | 0.35 |
| Phase to phase induction | mH | 0.28 |
| Pole pair | 17 | |
| Cogging torque | Nm | 64 |
| 3 phase connection | Y | |
| Encoder type | Absolute (Multi-pole) | |
| Weight | kg | 0.46 |
| Insulation grade | F | |
| No load current | V | 0.35 |
| Rotor Outer Diameter | mm | 90 |
| Rated speed | RPM | 1600 |
| Rated torque | Nm | 1.5 |
| Rated power | W | 252 |
| Rated current | A | 6.6 |
| Peak torque | Nm | 3.75 |
| Peak current | A | 19.8 |
| Efficiency | >83 % |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
