Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 4 | 16 | 64 | 256 | 1024 | 4096 |
| Max. rated torque | mNm | 5 | 10 | 30 | 40 | 50 | 60 |
| Max. momentary torque | mNm | 15 | 30 | 90 | 120 | 150 | 180 |

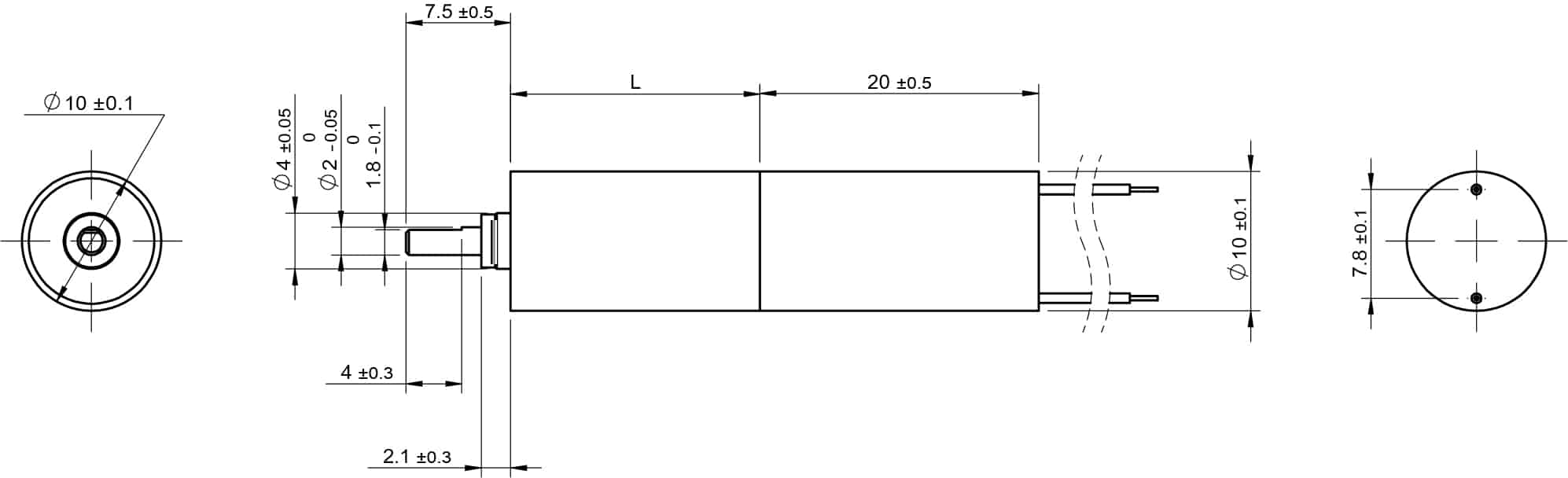

| Length（L） | mm | 11.7 | 14.8 | 17.9 | 21 | 24.1 | 27.2 |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Metal injection | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
