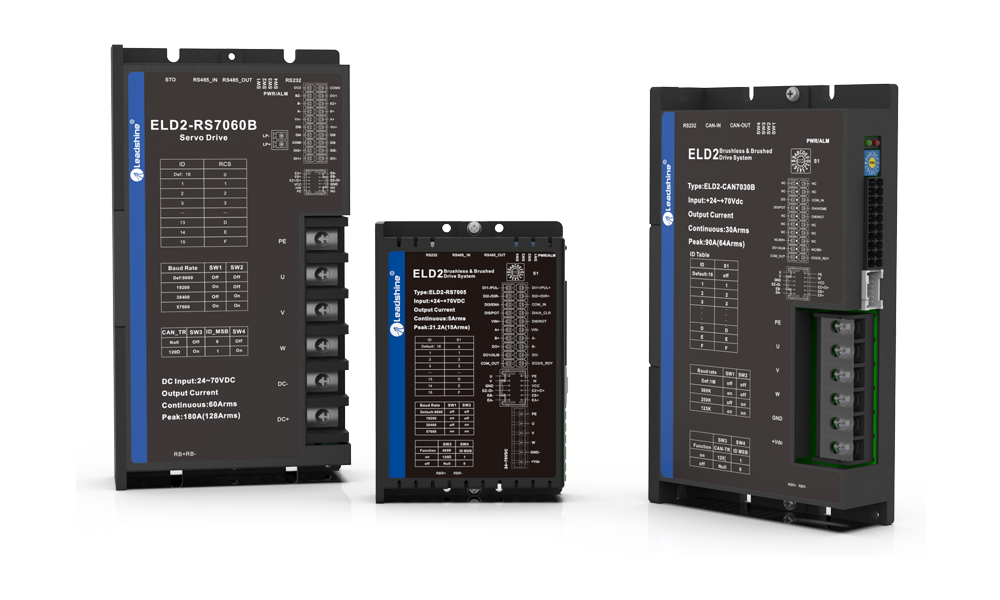

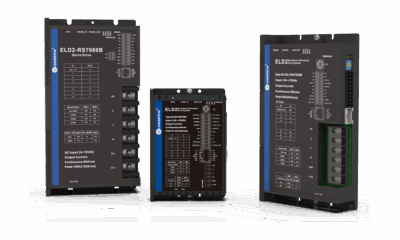

ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
ELD2 Series servo drives are our low voltage servo drive family, outfitted for high current, and network connectivity, making them ideal for DC power input applications.
Motor charactistics
| Parameter | Unit | ELD2-RS7005 | ELD2-RS7010 | ELD2-RS7015B | ELD2-RS7020B | ELD2-RS7030B | ELD2-RS7040B | ELD2-RS7060B |
|---|---|---|---|---|---|---|---|---|
| Input voltage | VDC | 24~70VDC | 24~70VDC | 24~70VDC | 24~70VDC | 24~70VDC | 24~70VDC | 24~70VDC |
| Nominal power | W | 100 | 400 | 600 | 750 | 1200 | 1500 | 2500 |
| Nominal current | Arms | 5 | 10 | 15 | 20 | 30 | 40 | 60 |
| Peak current | Arms | 21 | 35 | 45 | 80 | 90 | 120 | 180 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | Modbus RTU/ Pulse+Direction/ Analog input | Modbus RTU/ Pulse+Direction/ Analog input | Modbus RTU/ Pulse+Direction/ Analog input | Modbus RTU/ Pulse+Direction/ Analog input | Modbus RTU/ Pulse+Direction/ Analog input | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| # of Outputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELD2-RS7005
ELD2-RS7010
ELD2-RS7015B
ELD2-RS7020B
ELD2-RS7030B
ELD2-RS7040B
ELD2-RS7060B
PDF Downloads
ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
datasheet
ELD2-RS7005
manual
ELD2-RS7010
manual
ELD2-RS7015B
manual
ELD2-RS7020B
manual
ELD2-RS7030B
manual
| Parameter | Unit | ELD2-RS7005 |
|---|---|---|
| Input voltage | VDC | 24~70VDC |
| Nominal power | W | 100 |
| Nominal current | Arms | 5 |
| Peak current | Arms | 21 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELD2-RS7005
PDF Downloads
ELD2-RS7005
manual
ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
datasheet
| Parameter | Unit | ELD2-RS7010 |
|---|---|---|
| Input voltage | VDC | 24~70VDC |
| Nominal power | W | 400 |
| Nominal current | Arms | 10 |
| Peak current | Arms | 35 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELD2-RS7010
PDF Downloads
ELD2-RS7010
manual
ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
datasheet
| Parameter | Unit | ELD2-RS7015B |
|---|---|---|
| Input voltage | VDC | 24~70VDC |
| Nominal power | W | 600 |
| Nominal current | Arms | 15 |
| Peak current | Arms | 45 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELD2-RS7015B
PDF Downloads
ELD2-RS7015B
manual
ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
datasheet

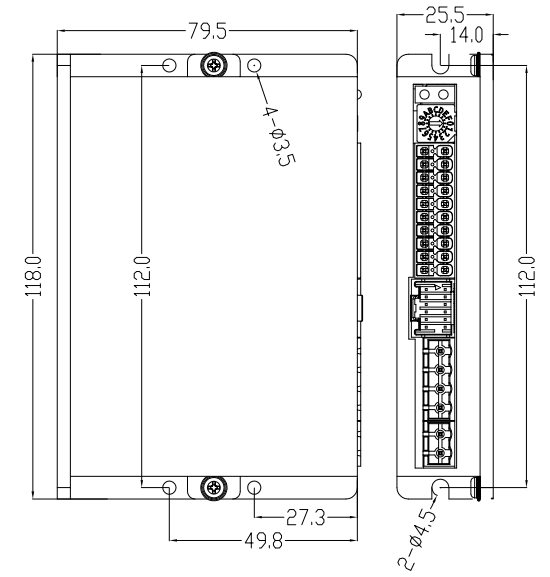

| Parameter | Unit | ELD2-RS7020B |
|---|---|---|
| Input voltage | VDC | 24~70VDC |
| Nominal power | W | 750 |
| Nominal current | Arms | 20 |
| Peak current | Arms | 80 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELD2-RS7020B
PDF Downloads
ELD2-RS7020B
manual
ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
datasheet
| Parameter | Unit | ELD2-RS7030B |
|---|---|---|
| Input voltage | VDC | 24~70VDC |
| Nominal power | W | 1200 |
| Nominal current | Arms | 30 |
| Peak current | Arms | 90 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELD2-RS7030B
PDF Downloads
ELD2-RS7030B
manual
ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
datasheet
| Parameter | Unit | ELD2-RS7040B |
|---|---|---|
| Input voltage | VDC | 24~70VDC |
| Nominal power | W | 1500 |
| Nominal current | Arms | 40 |
| Peak current | Arms | 120 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELD2-RS7040B
PDF Downloads
ELD2 Series – Modbus RTU/ Pulse+Direction/ Analog input
datasheet

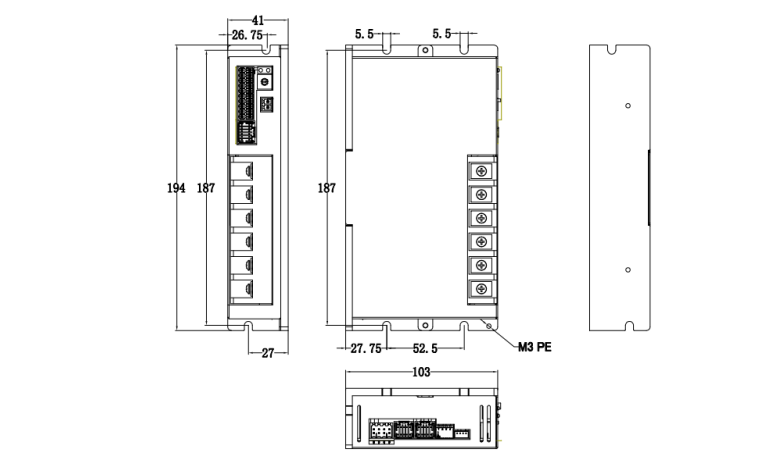

| Parameter | Unit | ELD2-RS7060B |
|---|---|---|
| Input voltage | VDC | 24~70VDC |
| Nominal power | W | 2500 |
| Nominal current | Arms | 60 |
| Peak current | Arms | 180 |
| Command Source | Modbus RTU/ Pulse+Direction/ Analog input | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
