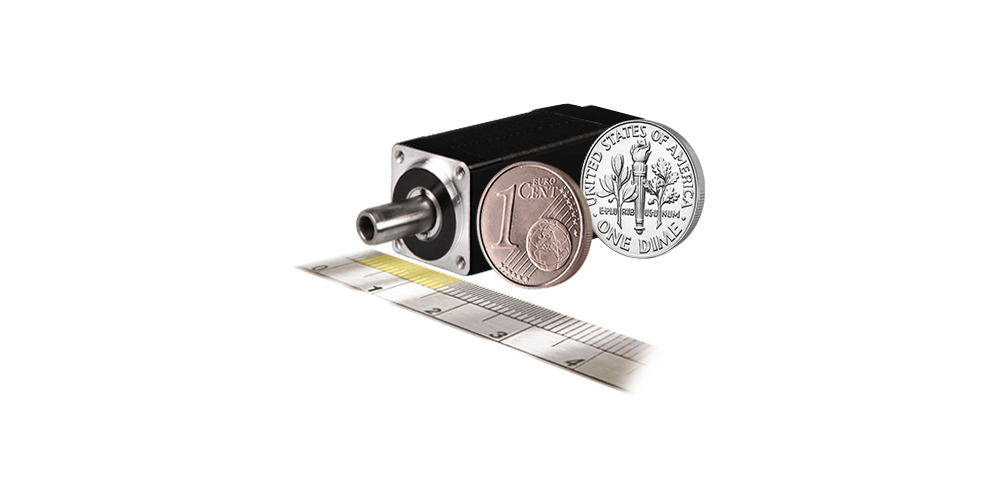

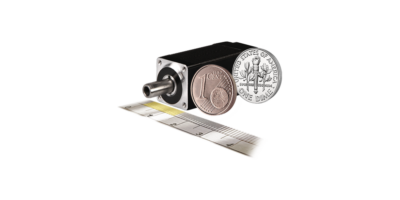

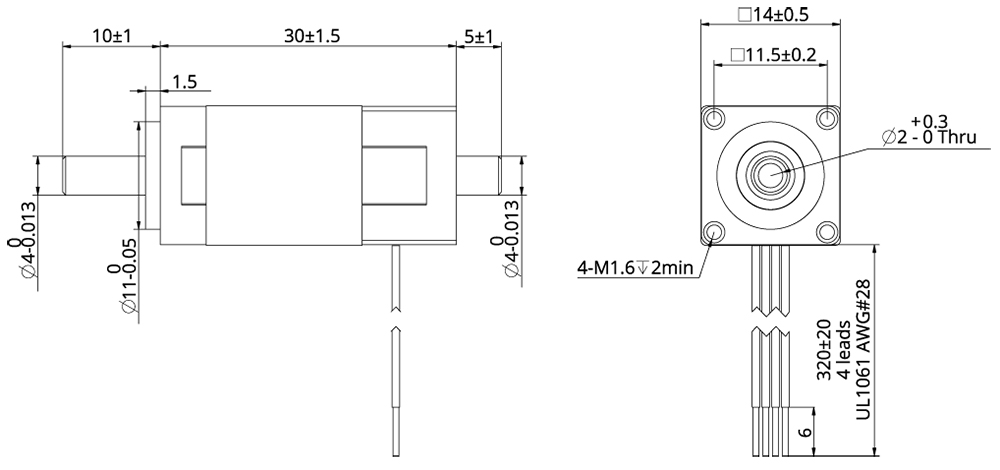

12ZWC30L-1 is very compact size but it has optimized magnetic circuit.
Brushless DC Motor with core winding has high torque density and multipole
rotor can provide very strong and dynamic performance.
12ZWC30L-1 can reach Max. 10,000RPM.
| Motor Characteristics | 12ZWC30L-1 |
|---|---|
| Pole pair | 2 mm |
| Phase resistance | 52.5 Ω |
| Phase inductance | 3.92 mH |
| Winding connection method | Star shape |
| Insulation class | B |
| Duty type | S2 |
| Commutation angle | 120° |
| Insulation strength (Withstand voltage) | 500VAC/1KHz/1mA/1s |
| Insulation resistance – 100 MOhm 20C | 100 MOhm 20C |
| Weight | 18 g |
| Rated voltage | 24 V |
| Rated power | 1.6 W |
| Rated torque | 1 mN·m |
| Rated speed | 7700 RPM |
| Rated current | 0.11 A |
| No load speed | 11000 RPM |
| No load current | 0.035 A |
| Motor efficiency | 60 % |
| Noise(Ambient noise 20db, test distance 1m) | ＜50 |
| Enclosure – Ambient thermal resistance K/W 0.9 | 0.9 K/W |
| Ambient temperature | 20 °C |
| Maximum winding temperature | 68.5 °C |
| Torque constant | 9.091 N·m/A |
| Back-EMF constant / Effective value | 1.68 V/Krpm |
| Peak torque | 3 mN·m |
| Peak current | 0.33 A |
| Inertia moment | 0.18 g·cm² |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 12ZWC30L-1 |
|---|---|
| Pole pair | 2 mm |
| Phase resistance | 52.5 Ω |
| Phase inductance | 3.92 mH |
| Winding connection method | Star shape – |
| Insulation class | B – |
| Duty type | S2 – |
| Commutation angle | 120° – |
| Insulation strength (Withstand voltage) | 500VAC/1KHz/1mA/1s – |
| Insulation resistance – 100 MOhm 20C | 100 MOhm 20C – |
| Weight | 18 g |
| Rated voltage | 24 V |
| Rated power | 1.6 W |
| Rated torque | 1 mN·m |
| Rated speed | 7700 RPM |
| Rated current | 0.11 A |
| No load speed | 11000 RPM |
| No load current | 0.035 A |
| Motor efficiency | 60 % |
| Noise(Ambient noise 20db, test distance 1m) | ＜50 dB |
| Enclosure – Ambient thermal resistance K/W 0.9 | 0.9 K/W |
| Ambient temperature | 20 °C |
| Maximum winding temperature | 68.5 °C |
| Torque constant | 9.091 N·m/A |
| Back-EMF constant / Effective value | 1.68 V/Krpm |
| Peak torque | 3 mN·m |
| Peak current | 0.33 A |
| Inertia moment | 0.18 g·cm² |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
