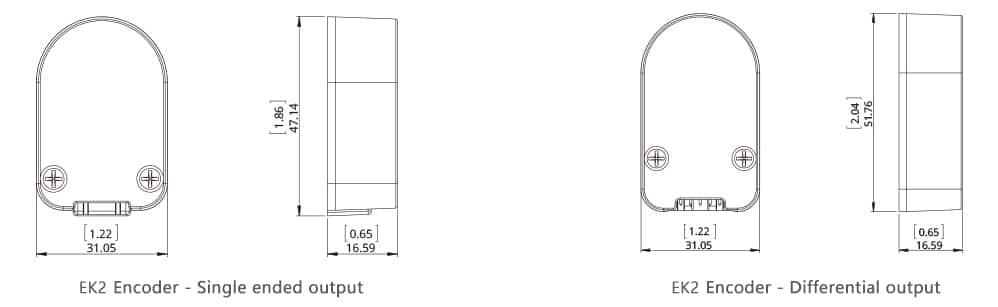

The SBSLA – Size 17 [42mm] DLG/DLS Series combines a high-precision stepping motor, ball screw, and integrated guide for compact linear motion solutions. With strokes of 40/70 mm, maximum thrust up to 100 N, and 0.01 mm repeat positioning accuracy, these actuators enable miniaturized, high-accuracy device positioning. Multiple ball screw leads and encoder options are available for flexible, application-specific performance.
| Parameter | Unit | DLG42S1 | DLG42S15 | DLG42D12 | DLG42D25 |
|---|---|---|---|---|---|
| Voltage | V | 3.8 | 2.78 | 4.56 | 2.5 |
| Current | A | 1 | 1.5 | 1.2 | 2.5 |
| Resistance | Ω | 3.8 | 1.85 | 3.8 | 1 |
| Inductance | mH | 5 | 2.2 | 8 | 1.8 |
| Lead Wire No. | 4 | 4 | 4 | 4 | |
| Motor Length | mm | 34.1 | 34.1 | 48.1 | 48.1 |
| Size | Nema | 17 | 17 | 17 | 17 |
| Flange size | mm | 42 | 42 | 42 | 42 |
| Actuator Characteristics | Unit | SBSLA – Size 17 [42mm] DLG/DLS |
|---|---|---|
| Stroke | mm | 40/70 |
| Maximum Thrust | N | 100 |
| Repeat Positioning Accuracy | mm | 0.01 |
| Optional Ball Screw Lead | mm | 1/2/6/10 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | DLG42S1 |
|---|---|---|
| Voltage | V | 3.8 |
| Current | A | 1 |
| Resistance | Ω | 3.8 |
| Inductance | mH | 5 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 34.1 |
| Size | Nema | 17 |
| Flange size | mm | 42 |
| Actuator Characteristics | Unit | DLG42S1 |
|---|---|---|
| Stroke | mm | 40/70 |
| Maximum Thrust | N | 100 |
| Repeat Positioning Accuracy | mm | 0.01 |
| Optional Ball Screw Lead | mm | 1/2/6/10 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | DLG42S15 |
|---|---|---|
| Voltage | V | 2.78 |
| Current | A | 1.5 |
| Resistance | Ω | 1.85 |
| Inductance | mH | 2.2 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 34.1 |
| Size | Nema | 17 |
| Flange size | mm | 42 |
| Actuator Characteristics | Unit | DLG42S15 |
|---|---|---|
| Stroke | mm | 40/70 |
| Maximum Thrust | N | 100 |
| Repeat Positioning Accuracy | mm | 0.01 |
| Optional Ball Screw Lead | mm | 1/2/6/10 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | DLG42D12 |
|---|---|---|
| Voltage | V | 4.56 |
| Current | A | 1.2 |
| Resistance | Ω | 3.8 |
| Inductance | mH | 8 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 48.1 |
| Size | Nema | 17 |
| Flange size | mm | 42 |
| Actuator Characteristics | Unit | DLG42D12 |
|---|---|---|
| Stroke | mm | 40/70 |
| Maximum Thrust | N | 100 |
| Repeat Positioning Accuracy | mm | 0.01 |
| Optional Ball Screw Lead | mm | 1/2/6/10 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | DLG42D25 |
|---|---|---|
| Voltage | V | 2.5 |
| Current | A | 2.5 |
| Resistance | Ω | 1 |
| Inductance | mH | 1.8 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 48.1 |
| Size | Nema | 17 |
| Flange size | mm | 42 |
| Actuator Characteristics | Unit | DLG42D25 |
|---|---|---|
| Stroke | mm | 40/70 |
| Maximum Thrust | N | 100 |
| Repeat Positioning Accuracy | mm | 0.01 |
| Optional Ball Screw Lead | mm | 1/2/6/10 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
