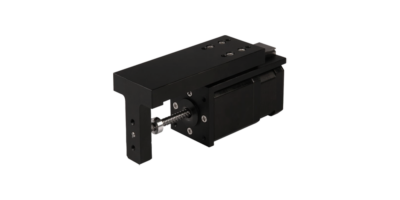

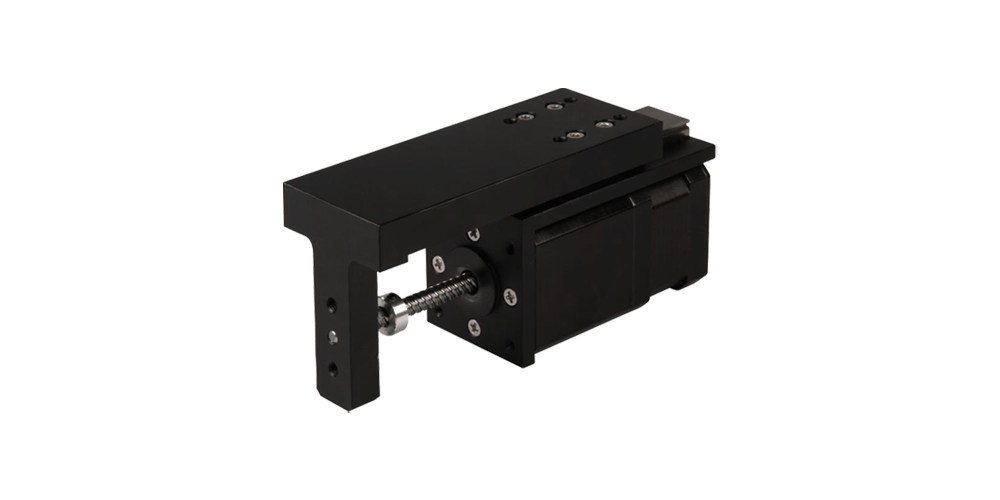

DLG42D25

DLG Series is a product that integrates a stepping motor and a ball screw with a guide to achieve precise linear motion.
With guide supported, DLG series enables reduction of mechanical components such as couplings or other parts. So it enables customer to design miniaturized and high-precision positioning of the device.

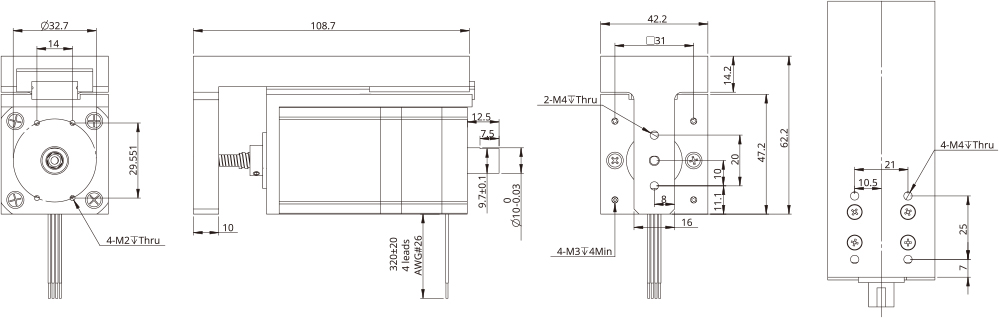

Size 42 [NEMA 17] size of DLG series has 40 & 70mm stroke. If customer wants, non-guide type of DRS series can be also optional.

SKU: DLG42D25 Category:

Description

DLG Series is a product that integrates a stepping motor and a ball screw with a guide to achieve precise linear motion.
With guide supported, DLG series enables reduction of mechanical components such as couplings or other parts. So it enables customer to design miniaturized and high-precision positioning of the device.
Size 42 [NEMA 17] size of DLG series has 40 & 70mm stroke. If customer wants, non-guide type of DRS series can be also optional.
