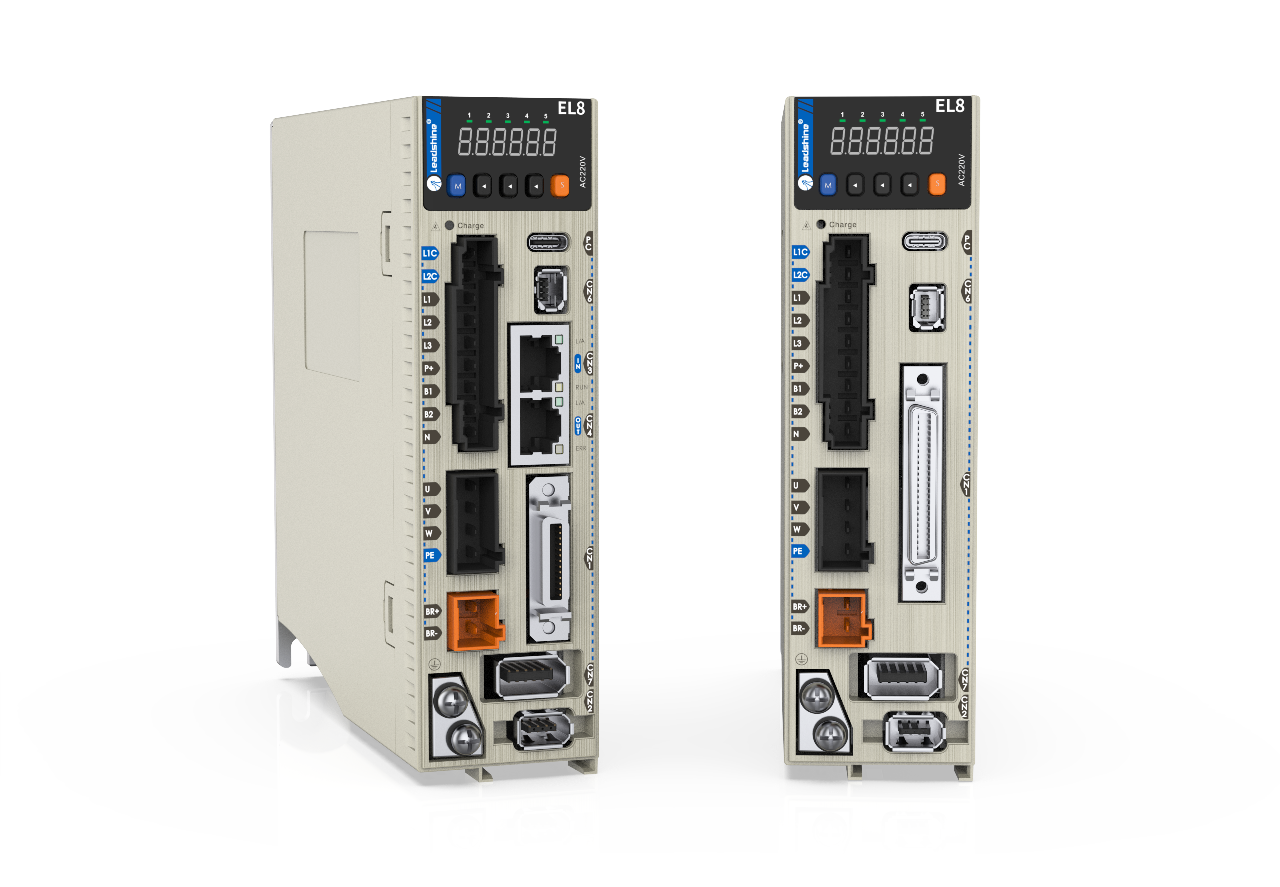

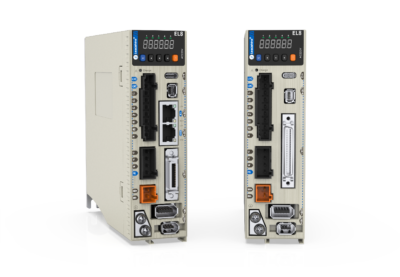

EL8 Series – EtherCAT
Latest high end 1ph/3ph 220V AC servo drives, which supports EtherCAT and Modbus RTU, pulse + direction, analogue control
Motor charactistics
| Parameter | Unit | EL8-EC400F | EL8-EC750F | EL8-EC1000F | EL8-EC1500F | EL8-EC2000F |
|---|---|---|---|---|---|---|
| Input voltage | 1ph/3ph 220VAC | 1ph/3ph 220VAC | 1ph/3ph 220VAC | 1ph/3ph 220VAC | 1ph/3ph 220VAC | |
| Nominal power | W | 400 | 750 | 1000 | 1500 | 2000 |
| Nominal current | Arms | 2.8 | 5.5 | 7 | 9.5 | 12 |
| Peak current | Arms | 9.3 | 16.9 | 21.2 | 31.3 | 36 |
| Command Source | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
| # of Digital Inputs | 8 | 8 | 8 | 8 | 8 | |
| # of Digital Outputs | 3 | 3 | 3 | 3 | 3 | |
| # of Analog Inputs | – | – | – | – | – | |
| # of Analog Outputs | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

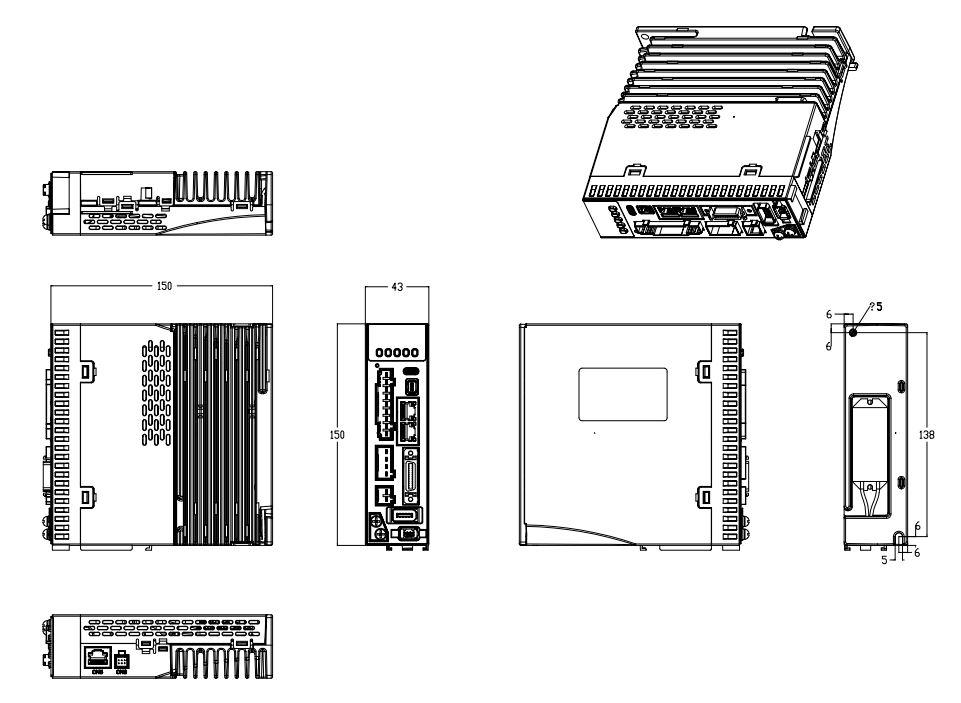

EL8 Series – EtherCAT
datasheet
| Parameter | Unit | EL8-EC400F |
|---|---|---|
| Input voltage | 1ph/3ph 220VAC | |
| Nominal power | W | 400 |
| Nominal current | Arms | 2.8 |
| Peak current | Arms | 9.3 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

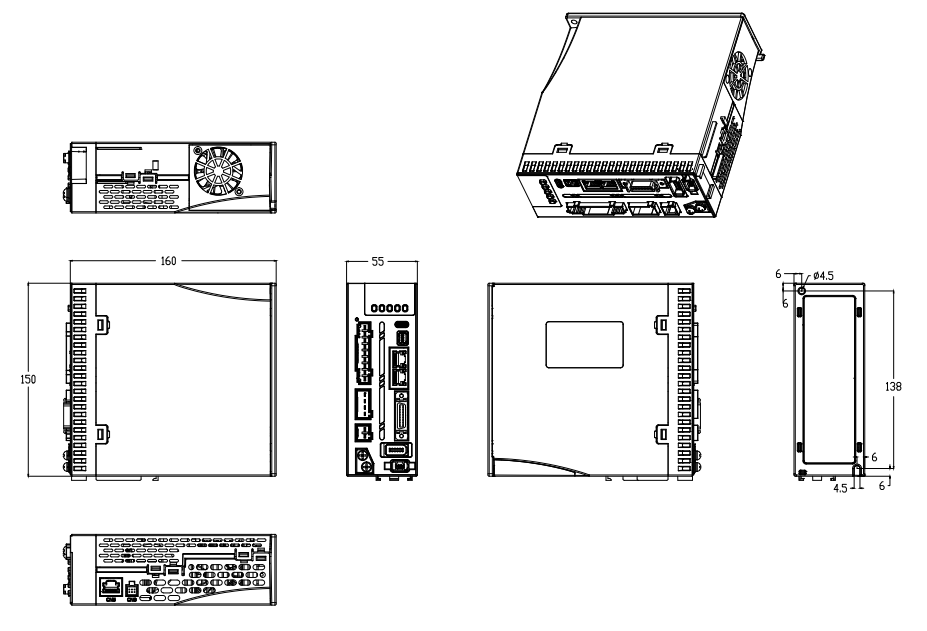

EL8 Series – EtherCAT
datasheet
| Parameter | Unit | EL8-EC750F |
|---|---|---|
| Input voltage | 1ph/3ph 220VAC | |
| Nominal power | W | 750 |
| Nominal current | Arms | 5.5 |
| Peak current | Arms | 16.9 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

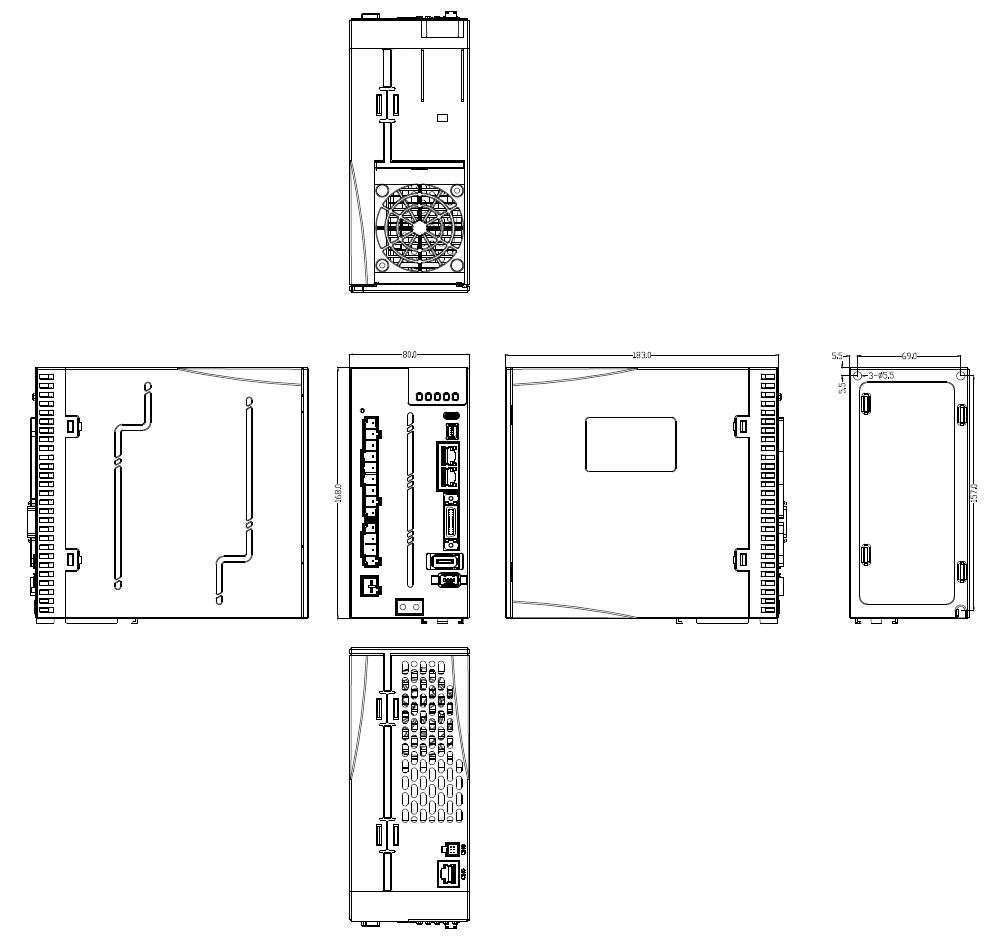

EL8 Series – EtherCAT
datasheet
| Parameter | Unit | EL8-EC1000F |
|---|---|---|
| Input voltage | 1ph/3ph 220VAC | |
| Nominal power | W | 1000 |
| Nominal current | Arms | 7 |
| Peak current | Arms | 21.2 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

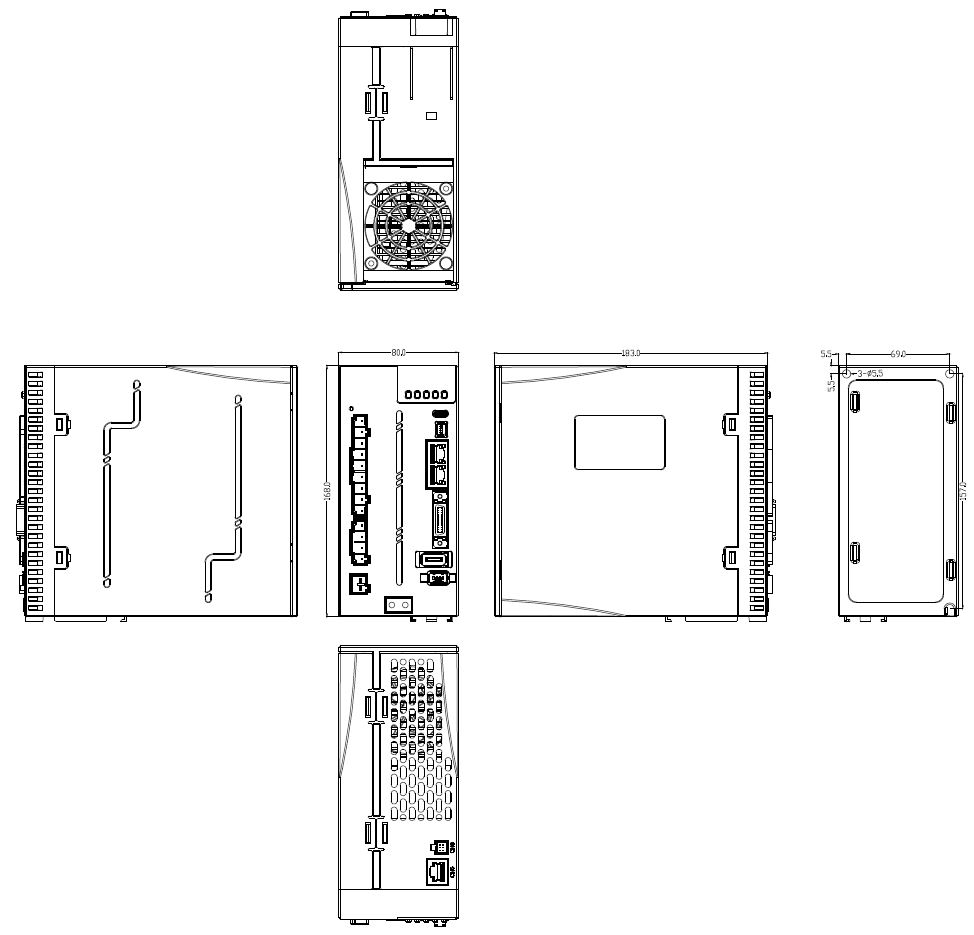

EL8 Series – EtherCAT
datasheet
| Parameter | Unit | EL8-EC1500F |
|---|---|---|
| Input voltage | 1ph/3ph 220VAC | |
| Nominal power | W | 1500 |
| Nominal current | Arms | 9.5 |
| Peak current | Arms | 31.3 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL8 Series – EtherCAT
datasheet
| Parameter | Unit | EL8-EC2000F |
|---|---|---|
| Input voltage | 1ph/3ph 220VAC | |
| Nominal power | W | 2000 |
| Nominal current | Arms | 12 |
| Peak current | Arms | 36 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
