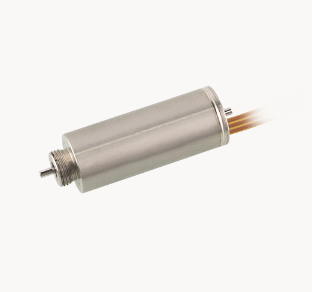

Motor Characteristics
| Parameter | Unit | 10ZWWC25 |
|---|---|---|
| Pole pair | mm | 2 |
| Rated voltage | V | 24 |
| Nominal power | W | 65 |
| Nominal torque | mN·m | 90 |
| Nominal speed | RPM | 6900 |
| Nominal current | A | 3.85 |
| No-load speed | RPM | 9200 |
| No-load current | A | 0.3 |
| Motor efficiency | % | 86 |
| Noise(Ambient noise 20db, test distance 1m) | dB | ＜50 |
| Torque constant | mN·m/A | 23.28 |
| Phase resistance | Ω | 0.5 |
| Back-EMF constant – peak value | V/Krpm | 3.46 |
| Back-EMF constant (RMS) | V/Krpm | 2.45 |
| Peak torque | mN·m | 1122.08 |
| Peak current | A | 48 |
| Rotor inertia | g·cm² | 28 |
| Mechanical time constant | ms | 2.56 |
| End bell | – | Stainless steel |
| Bearing | – | Deep Groove Ball bearing |
| Magnet | – | Sinter NdFeB |
| Rotation shaft | – | Carbon steel |
| Winding connection method | – | Star shape |
| Outer diameter | mm | 10 |
| Motor length | mm | 25 |
| Insulation class | – | B |
| Duty type | – | S1 |
| Commutation angle | – | 120° |
| Insulation strength (withstand voltage) | – | 500VAC/1KHz/1mA/1s |
| Insulation resistance – 100 MOhm 20C | – | 100 MOhm 20C |
| Weight | g | 230 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
