Motor Characteristics
| Parameter | Unit | 17E2105 | 17E2110 | 17E2115 | 17E2205 | 17E2212 | 17E2225 |
|---|---|---|---|---|---|---|---|
| Voltage | V | 7.2 | 3.8 | 2.85 | 11.0 | 4.5 | 2.5 |
| Current | A | 0.5 | 1.0 | 1.5 | 0.5 | 1.2 | 2.5 |
| Resistance | Ω | 14.4 | 3.8 | 1.9 | 22 | 3.8 | 1.0 |
| Inductance | mH | 19.8 | 5.0 | 2.2 | 46 | 8.0 | 1.8 |
| Lead wire No. | 4 | 4 | 4 | 4 | 4 | 4 | |
| Motor length | mm | 34.1 | 34.1 | 34.1 | 48.1 | 48.1 | 48.1 |
Lead Screw Code
| Lead Screw Code | Unit | DSM – Size 42mm |
|---|---|---|
| AA, Screw Lead | mm | 6.35 |
| AB, Screw Lead | mm | 6.35 |
| B, Screw Lead | mm | 6.35 |
| D, Screw Lead | mm | 6.35 |
| F, Screw Lead | mm | 6.35 |
| J, Screw Lead | mm | 6.35 |
| K, Screw Lead | mm | 6.35 |
| L, Screw Lead | mm | 6.35 |
| Q, Screw Lead | mm | 6.35 |
| R, Screw Lead | mm | 6.35 |
| S, Screw Lead | mm | 6.35 |
| U, Screw Lead | mm | 6.35 |
| W, Screw Lead | mm | 6.35 |
| Y, Screw Lead | mm | 6.35 |
| Z, Screw Lead | mm | 6.35 |
| M, Screw Lead | mm | 8 |
| T, Screw Lead | mm | 8 |
| G, Screw Lead | mm | 8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

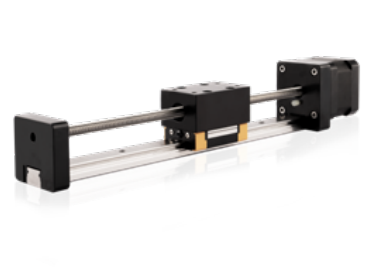

DSM – Size 42mm
| Parameter | Unit | 17E2105 |
|---|---|---|
| Voltage | V | 7.2 |
| Current | A | 0.5 |
| Resistance | Ω | 14.4 |
| Inductance | mH | 19.8 |
| Lead wire No. | 4 | |
| Motor length | mm | 34.1 |
Lead Screw Code
| Lead Screw Code | Unit | 17E2105 |
|---|---|---|
| AA, Screw Lead | mm | 6.35 |
| AB, Screw Lead | mm | 6.35 |
| B, Screw Lead | mm | 6.35 |
| D, Screw Lead | mm | 6.35 |
| F, Screw Lead | mm | 6.35 |
| J, Screw Lead | mm | 6.35 |
| K, Screw Lead | mm | 6.35 |
| L, Screw Lead | mm | 6.35 |
| Q, Screw Lead | mm | 6.35 |
| R, Screw Lead | mm | 6.35 |
| S, Screw Lead | mm | 6.35 |
| U, Screw Lead | mm | 6.35 |
| W, Screw Lead | mm | 6.35 |
| Y, Screw Lead | mm | 6.35 |
| Z, Screw Lead | mm | 6.35 |
| M, Screw Lead | mm | 8 |
| T, Screw Lead | mm | 8 |
| G, Screw Lead | mm | 8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 17E2110 |
|---|---|---|
| Voltage | V | 3.8 |
| Current | A | 1.0 |
| Resistance | Ω | 3.8 |
| Inductance | mH | 5.0 |
| Lead wire No. | 4 | |
| Motor length | mm | 34.1 |
Lead Screw Code
| Lead Screw Code | Unit | 17E2110 |
|---|---|---|
| AA, Screw Lead | mm | 6.35 |
| AB, Screw Lead | mm | 6.35 |
| B, Screw Lead | mm | 6.35 |
| D, Screw Lead | mm | 6.35 |
| F, Screw Lead | mm | 6.35 |
| J, Screw Lead | mm | 6.35 |
| K, Screw Lead | mm | 6.35 |
| L, Screw Lead | mm | 6.35 |
| Q, Screw Lead | mm | 6.35 |
| R, Screw Lead | mm | 6.35 |
| S, Screw Lead | mm | 6.35 |
| U, Screw Lead | mm | 6.35 |
| W, Screw Lead | mm | 6.35 |
| Y, Screw Lead | mm | 6.35 |
| Z, Screw Lead | mm | 6.35 |
| M, Screw Lead | mm | 8 |
| T, Screw Lead | mm | 8 |
| G, Screw Lead | mm | 8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
DSM – Size 42mm
| Parameter | Unit | 17E2115 |
|---|---|---|
| Voltage | V | 2.85 |
| Current | A | 1.5 |
| Resistance | Ω | 1.9 |
| Inductance | mH | 2.2 |
| Lead wire No. | 4 | |
| Motor length | mm | 34.1 |
Lead Screw Code
| Lead Screw Code | Unit | 17E2115 |
|---|---|---|
| AA, Screw Lead | mm | 6.35 |
| AB, Screw Lead | mm | 6.35 |
| B, Screw Lead | mm | 6.35 |
| D, Screw Lead | mm | 6.35 |
| F, Screw Lead | mm | 6.35 |
| J, Screw Lead | mm | 6.35 |
| K, Screw Lead | mm | 6.35 |
| L, Screw Lead | mm | 6.35 |
| Q, Screw Lead | mm | 6.35 |
| R, Screw Lead | mm | 6.35 |
| S, Screw Lead | mm | 6.35 |
| U, Screw Lead | mm | 6.35 |
| W, Screw Lead | mm | 6.35 |
| Y, Screw Lead | mm | 6.35 |
| Z, Screw Lead | mm | 6.35 |
| M, Screw Lead | mm | 8 |
| T, Screw Lead | mm | 8 |
| G, Screw Lead | mm | 8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 17E2205 |
|---|---|---|
| Voltage | V | 11.0 |
| Current | A | 0.5 |
| Resistance | Ω | 22 |
| Inductance | mH | 46 |
| Lead wire No. | 4 | |
| Motor length | mm | 48.1 |
Lead Screw Code
| Lead Screw Code | Unit | 17E2205 |
|---|---|---|
| AA, Screw Lead | mm | 6.35 |
| AB, Screw Lead | mm | 6.35 |
| B, Screw Lead | mm | 6.35 |
| D, Screw Lead | mm | 6.35 |
| F, Screw Lead | mm | 6.35 |
| J, Screw Lead | mm | 6.35 |
| K, Screw Lead | mm | 6.35 |
| L, Screw Lead | mm | 6.35 |
| Q, Screw Lead | mm | 6.35 |
| R, Screw Lead | mm | 6.35 |
| S, Screw Lead | mm | 6.35 |
| U, Screw Lead | mm | 6.35 |
| W, Screw Lead | mm | 6.35 |
| Y, Screw Lead | mm | 6.35 |
| Z, Screw Lead | mm | 6.35 |
| M, Screw Lead | mm | 8 |
| T, Screw Lead | mm | 8 |
| G, Screw Lead | mm | 8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
DSM – Size 42mm
| Parameter | Unit | 17E2212 |
|---|---|---|
| Voltage | V | 4.5 |
| Current | A | 1.2 |
| Resistance | Ω | 3.8 |
| Inductance | mH | 8.0 |
| Lead wire No. | 4 | |
| Motor length | mm | 48.1 |
Lead Screw Code
| Lead Screw Code | Unit | 17E2212 |
|---|---|---|
| AA, Screw Lead | mm | 6.35 |
| AB, Screw Lead | mm | 6.35 |
| B, Screw Lead | mm | 6.35 |
| D, Screw Lead | mm | 6.35 |
| F, Screw Lead | mm | 6.35 |
| J, Screw Lead | mm | 6.35 |
| K, Screw Lead | mm | 6.35 |
| L, Screw Lead | mm | 6.35 |
| Q, Screw Lead | mm | 6.35 |
| R, Screw Lead | mm | 6.35 |
| S, Screw Lead | mm | 6.35 |
| U, Screw Lead | mm | 6.35 |
| W, Screw Lead | mm | 6.35 |
| Y, Screw Lead | mm | 6.35 |
| Z, Screw Lead | mm | 6.35 |
| M, Screw Lead | mm | 8 |
| T, Screw Lead | mm | 8 |
| G, Screw Lead | mm | 8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 17E2225 |
|---|---|---|
| Voltage | V | 2.5 |
| Current | A | 2.5 |
| Resistance | Ω | 1.0 |
| Inductance | mH | 1.8 |
| Lead wire No. | 4 | |
| Motor length | mm | 48.1 |
Lead Screw Code
| Lead Screw Code | Unit | 17E2225 |
|---|---|---|
| AA, Screw Lead | mm | 6.35 |
| AB, Screw Lead | mm | 6.35 |
| B, Screw Lead | mm | 6.35 |
| D, Screw Lead | mm | 6.35 |
| F, Screw Lead | mm | 6.35 |
| J, Screw Lead | mm | 6.35 |
| K, Screw Lead | mm | 6.35 |
| L, Screw Lead | mm | 6.35 |
| Q, Screw Lead | mm | 6.35 |
| R, Screw Lead | mm | 6.35 |
| S, Screw Lead | mm | 6.35 |
| U, Screw Lead | mm | 6.35 |
| W, Screw Lead | mm | 6.35 |
| Y, Screw Lead | mm | 6.35 |
| Z, Screw Lead | mm | 6.35 |
| M, Screw Lead | mm | 8 |
| T, Screw Lead | mm | 8 |
| G, Screw Lead | mm | 8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
