Motor Characteristics
| Parameter | Unit | 30ZWWC65 |
|---|---|---|
| Pole Pairs | 2 | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | gr | 230 |
| Rated voltage | V | 24 |
| Nominal power | W | 65 |
| Nominal torque | mNm | 90 |
| Nominal speed | RPM | 6900 |
| Nominal current | A | 3.85 |
| No-load speed | RPM | 9200 |
| No-load current | A | 0.3 |
| Motor Efficiency | % | 86 |
| Phase resistance | Ω | 0.5 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Enclosure – Ambient Thermal Resistance(No Load) | K/W | 0.31 |
| Motor Thermal Time Constant(No Load) | S | 1200 |
| Ambient temperature | °C | 23 |
| Maximum Winding Temperature(No Load) | °C | 43.2 |
| Torque Constant | mN·m/A | 23.38 |
| Back-EMF Constant /Peak Value | V/Krpm | 3.46 |
| Back-EMF constant (RMS) | V/Krpm | 2.45 |
| Peak Torque | mNm | 1122.08 |
| Peak current | A | 48 |
| Phase inductance | mH | 0.05 |
| Rotor inertia | g·cm² | 28 |
| Mechanical Time Constant | ms | 2.56 |
| End Cover | Stainless Steel | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sintered NdFeB | |
| Shaft | Carbon Steel | |

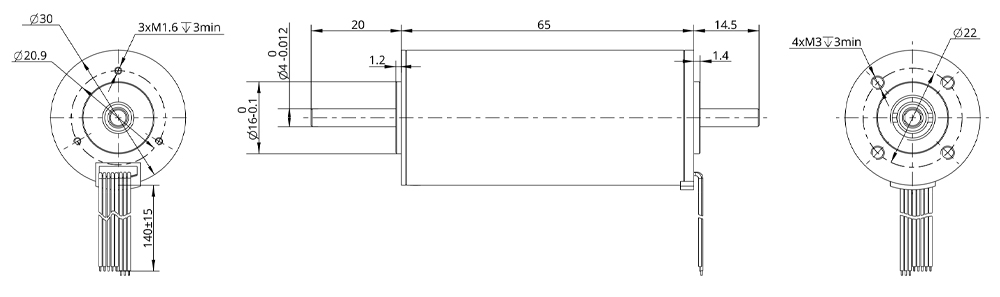

| Outer diameter | mm | 30 |
| Motor length | mm | 65 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S1 | |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
