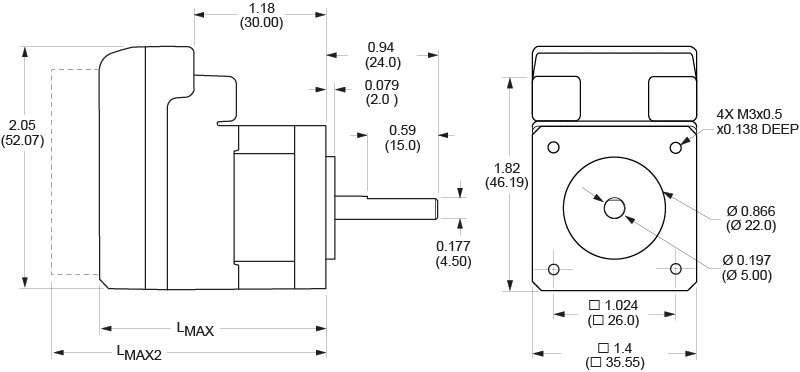

KOCO offers 3 different motor size of Integrated Closed Loop Stepping Control system via RS485.
From NEMA11, 17 and up to 23 size, our DS-CL28/42-SA and Vector family can be attractive for customers since these packages are full closed loop with high resolution encoder (Min. 10,000PPR) and all-in-one electronics can be assembled with all of KOCO stepper line ups as linear actuator and regular rotary steppers. All solutions can be operated under RS485 commnication.
| Specifications | DS-OL42-IPD/IRS4 | DS-OL42-ICAO | DS-CL28-SA | DS-CL42-SA |
|---|---|---|---|---|
| Adapted Motor | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A |
| Power Supply | DC 24~36 | DC 24~36 | DC 24~36 | DC 24~36 |
| Output Current | 0.5 – 3.0 | 0.5 – 3.0 | 0.5 – 3.0 | 0.5 – 3.0 |
| Drive Method | Full-bridge bipolar PWM | Full-bridge bipolar PWM | Full-bridge bipolar PWM | Full-bridge bipolar PWM |
| Initialization Time | 2s | 2s | 2s | 2s |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA |
| Size | 42.2 x 42.2 x 25.2 | 42.2 x 42.2 x 25.2 | 42.2 x 42.2 x 25.2 | 42.2 x 42.2 x 25.2 |
| Weight | About 60 | About 60 | About 60 | About 60 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas |
| Humidity | <85% RH, no condensation | <85% RH, no condensation | <85% RH, no condensation | <85% RH, no condensation |
| Temperature | 0 ~ 40 | 0 ~ 40 | 0 ~ 40 | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment | Install in a ventilated environment | Install in a ventilated environment | Install in a ventilated environment |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | DS-OL42-IPD/IRS4 |
|---|---|
| Adapted Motor | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A |
| Power Supply | DC 24~36 V |
| Output Current | 0.5 – 3.0 A |
| Drive Method | Full-bridge bipolar PWM |
| Initialization Time | 2s |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA |
| Input Signal | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 5 – 8 mA |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA |
| Size | 42.2 x 42.2 x 25.2 mm |
| Weight | About 60 g |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas |
| Humidity | <85% RH, no condensation |
| Temperature | 0 ~ 40 °C |
| Heat Dissipation | Install in a ventilated environment |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
