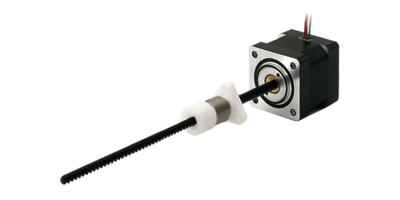

The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
incl. VAT

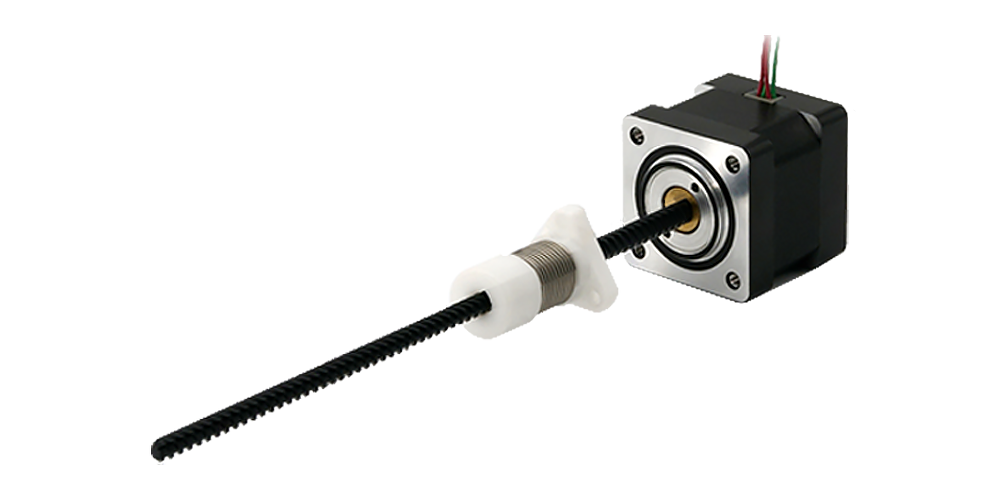

The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
Motor Characteristics | 11E2110 | 11E2209 |
---|---|---|
Voltage | 2.1 V | 3.9 V |
Current | 1 A | 0.95 A |
Resistance | 2.1 Ω | 4.1 Ω |
Inductance | 1.5 mH | 4 mH |
Motor Length | 33.35 mm | 45 mm |
Lead Wire No. | 4 | 4 |
Size | 11 Nema | 11 Nema |
Flange size | 28 mm | 28 mm |
Ball screw type | 0601 | 0602 | 0606 | 0610 | 0504 |
Ball size | Ø0.8 | Ø0.8 | Ø0.8 | Ø1.2 | Ø0.8 |
Number of threads | 1 | 1 | 2 | 2 | 1 |
Thread direction | Right | Right | Right | Right | Right |
Shaft root dia. | Ø5.3 | Ø5.1 | Ø5.2 | Ø5.0 | Ø4.3 |
Number of circuits | 3.7×1 | 2.7×1 | 1.6×2 | 1.2×2 | 2.7×1 |
Shaft nut material | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H |
Surface hardness | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 |
Anti-rust treatment | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil |
Grade | C7 | C7 | C7 | C7 | C7 |
Nut size | A | B | C | D | H | W | X | E | Position accuracy | Total run out | Axial play | Dynamic load[N] | Static load[N] |
BS0601 | 26 | 4 | 17 | 13 | 16 | 20 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 680 | 1200 | |
BS0602 | 26 | 4 | 17 | 15 | 19 | 22 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 750 | 1450 | |
BS0606 | 27 | 4 | 17 | 14 | 16 | 21 | 3.4 | 5 | ±0.05 | 0.12 | ≤0.03 | 870 | 1600 |
BS0610 | 27 | 4 | 23 | 14 | 16 | 21 | 3.4 | 7.5 | ±0.05 | 0.12 | ≤0.03 | 950 | 1650 |
BS0504 | 24 | 4 | 22 | 12 | 16 | 18 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 470 | 720 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Specification | 11E2110 |
---|---|
Voltage | 2.1 V |
Current | 1 A |
Resistance | 2.1 Ω |
Inductance | 1.5 mH |
Motor Length | 33.35 mm |
Lead Wire No. | 4 |
Size | 11 Nema |
Flange size | 28 mm |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
